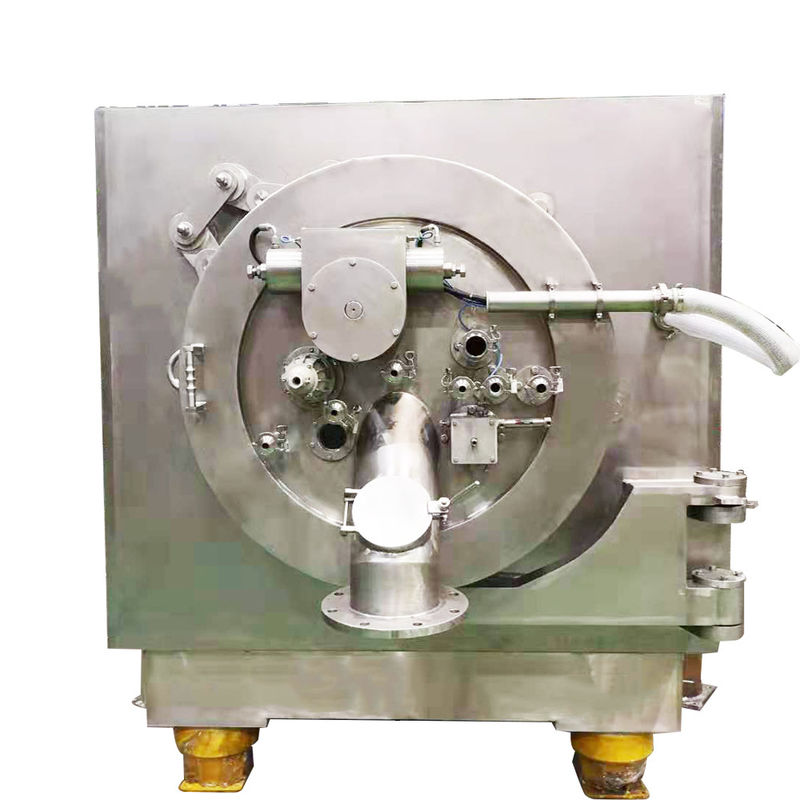

1000mm Stainless Steel Siphon Starch Separator Automatic Discharge Peeler Centrifuge

  Horizontal stainless Steel Siphon GK Peeler Centrifuge Machine

Description

When the drum driven the motor runs at full speed, the feed valve automatically opens up and the suspension liquid goes through the feed pipe into the drum, where the liquid phase passes through the filter gauze and the screen openings on the drum and is kicked off by the centrifugal force and flows out of the tangential discharging outlet, while the solid phase is retained inside the drum. When the set time is reached, the feeding stops.

After a given period of time of separation and dehydration, the washing valve acts and the cleaning liquid passes through the washing pipe into the drum to wash the filter cake. Upon the completion of washing, further separation is conducted till the required degree of dryness of the cake is reached. Then discharging starts: the scraper holder rotates enabling the scraper to cut into the cake layer and the cake is scraped off and discharged from the material hopper.

Specification  Advantage

The main Charactericstics

1.  It is fully conformed to GMP cGMP and FDA Norm and meet the requirements of asepsis raw medicine production.

2. With absolute isolation between power area and process area, it is suitable for occasion when customer requires high quality cleaning to avoid the contamination to prouct.

3. The out shell bucket can be opened, so the whole internal parts can be observed and easy for touch wiping and cleaning.

4. Perfoect CIP system can be carried out to wash the internal parts of centrifuge to aviod corss contamination which are not easy to clean.

5. Unique pneumatic counter-pulse device is equipped, which can remove remnant filter cake as much as possible.

6. Totally-enclosed structure equipped with inert gas protection is adopted to be used in ex-proof I section.

7. The automatic residual cakes removing device is optional(have owned the national patent)
