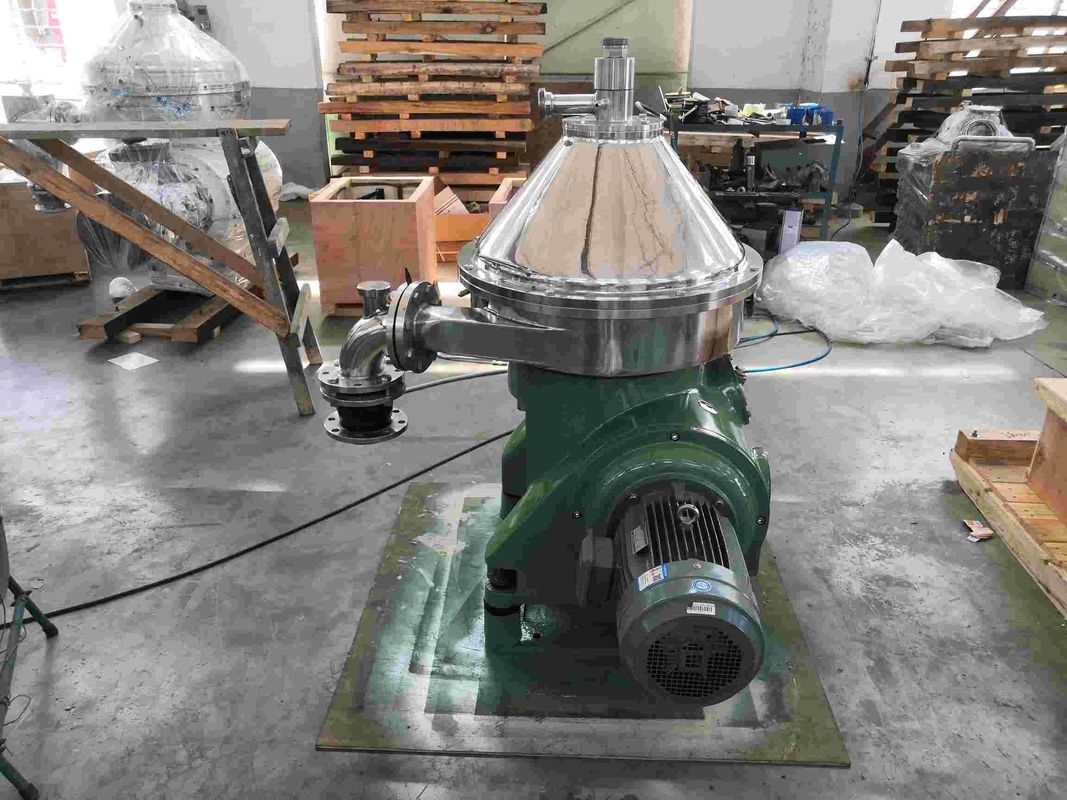

MAB series Disc Separator Centrifuge for Marine Diesel Oil Separator
Characteristics:
7.5kw 1500L/H Disc Separator Centrifuge For Marine Diesel Oil
1. Model PDSV separator is mainly used to remove off the soap-stocks, blue and from the vegetable oil during the oil refining process, It is also used to the similar feedstock of liquid-liquid-solid three-phase materials.
2. The machine adopts automatic control, it has the advantage of high efficiency, low material consumption, convenient operation, and economic maintenance cost.
3. The heavy phase liquid and light phase liquid are pumped out by a centripetal pump. The sludge is discharged automatically and partly.
4. The machine is one kind of rotary machine with high speed, after accurate dynamic balancing, it can run for a long time with low vibration, safety, and security.
Features of Products and Applications:
PDSV series automatic discharging separator is the special equipment for oil and fat refining, it has the traits such as high rotating speed, operating stability, completely sealed up of the inlet and outlet system, lower noise, and fine separating effect. The centripetal pump system designed by our professional designer has the trails such as stability outlet pressure, large regulating sphere, and operating easily.
Also, this series separator has a professional automatic domination case with a safety protection device, the advanced automatic vibrating testing instrument can view vibrating numbers at any time. We can make separating and discharging to the best affection from regulating separating parameter directly at the screen.
This machine is widely used in degumming, de-soap, and water washing technology in the vegetable oil refinery. It can also be used for refining of animal oil and mineral oil, and liquid-liquid and liquid-solid separations of light industry, chemical industry, medicine and food industry. PDSV series are used in pigment separating.
Main Technical Specification
| Discharging type | Part discharging | |
| Rated capacity | l/h | 1500-2000 |
| Motor power | kw | 7.5(380V/50Hz/3P) |
| N.W. | kg | 926 |
| Overall Size (L × W × H) | mm | 1355 × 945 × 1388 |
Dimension Drawing:
Installation Notice:
1. For maintenance and repair, please leave enough space around the separator when installing it.
This series automatic discharging separator is special equipment for oil refining. It is the disc type with continuous spraying discharging with high speed through the nozzles in out circle. It works steadily, with high efficiency and convenient operatins, safe and reliable for separation.
The High speed disc bowl separator has the advantages of high efficiency, low material consumption, convenient operation and economic maintenance cost.
