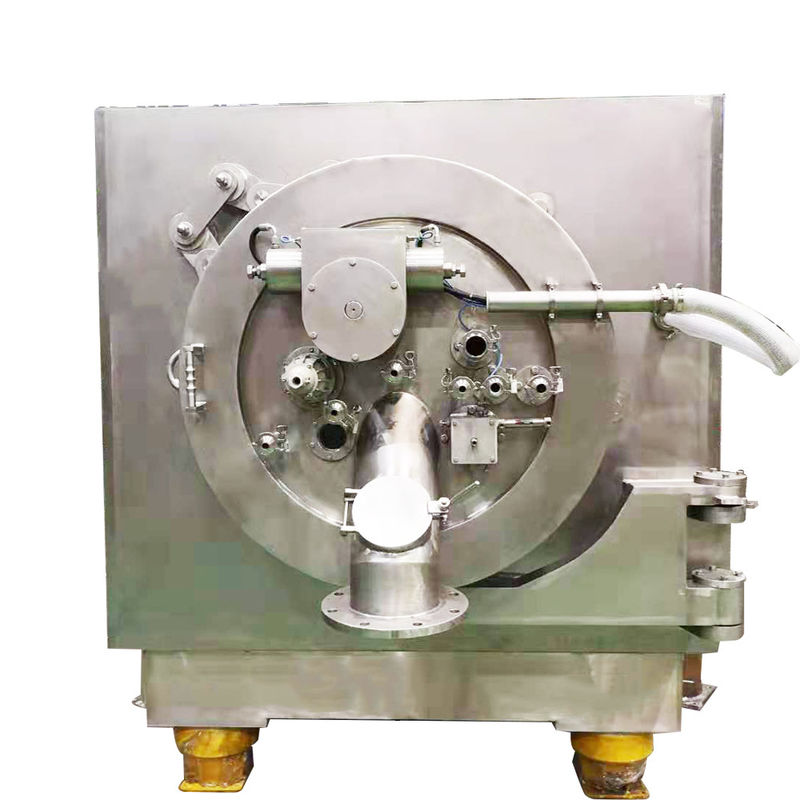

Automatic Horizontal Scraper Bottom Discharge Centrifuge for Starch Extraction
Description
When the drum driven the motor runs at full speed, the feed valve automatically opens up and the suspension liquid goes through the feed pipe into the drum, where the liquid phase passes through the filter gauze and the screen openings on the drum and is kicked off by the centrifugal force and flows out of the tangential discharging outlet, while the solid phase is retained inside the drum. When the set time is reached, the feeding stops.
After a given period of time of separation and dehydration, the washing valve acts and the cleaning liquid passes through the washing pipe into the drum to wash the filter cake. Upon the completion of washing, further separation is conducted till the required degree of dryness of the cake is reached. Then discharging starts: the scraper holder rotates enabling the scraper to cut into the cake layer and the cake is scraped off and discharged from the material hopper.
Main Characteristics
Specification
| Model | Drum | G-force | Power(kw) | Weight(kg) | |||
|
Diameter (mm) |
Volume (L) |
Capacity (kg) |
Speed (r/min) |
||||
| PPC-135 | 800 | 95 | 135 | 1600 | 1150 | 30 | 5000 |
| PPCS-135 | 800 | 95 | 135 | 1600 | 1150 | 37 | 5500 |
| PPC-135 GMP | 800 | 95 | 135 | 1600 | 1150 | 37 | 6500 |
| PPC-312 | 1000 | 208 | 312 | 1350 | 1020 | 45 | 6500 |
| PPCS-312 | 1000 | 208 | 312 | 1350 | 1020 | 55 | 7000 |
| PPC-288 | 1200 | 230 | 288 | 1200 | 968 | 45 | 8000 |
| PPC-375 | 1250 | 250 | 375 | 1200 | 1008 | 45 | 9000 |
| PPCS-555 | 1250 | 370 | 555 | 1200 | 1008 | 75 | 12000 |
| PPC-960 | 1600 | 650 | 960 | 850 | 650 | 75 | 13500 |
| PPCS-960 | 1600 | 650 | 960 | 850 | 650 | 90 |
15000 |
Applications
Cassava Starch Centrifuge is the filter equipment characterized with continuous running, scraper discharging and intermittent operation, applicable to the separation of the suspension liquid containing medium-sized granules or fine granules (0.01mm~5mm).
It can also be used for the separating of the suspension liquid containing short fibers (with the fiber length less than 4mm), with the concentration of the suspension liquid being 10%~60%. With hydraulic and electric joint control mode adopted, this series of centrifuges are capable of high degree of automization, with such working processes as feeding, dehydrating, washing, discharging, etc. being operated manually or by means of PLC for full automatic control.
The horizontal scraper discharging centrifuge has good adaptability to the material to be processed and thus can be widely used in such industrial fields as chemical, light industry, food, pharmacy, etc. for the separating of over 100 kinds of substances including ammonia sulphate, sodium sulphate, anthracene, boric acid, starch, pesticide, synthetic resin, sodium cyanide, potassium chloride, sodium bicarbonate, etc.
WORKING PRINCIPLE
▷When predetermined target is met and drum speed is suitable for feeding, feeding valve will be open automatically and product level detection begins to work.
▷With product dehydration going on, centrifuge will automatically slow down to washing speed according to technical requirement for washing.
▷Washing valve opens automatically. With washing liquid rising to a certain height, washing valve closes and centrifuge speeds up automatically for further dehydration(secondary filter).
▷After operation, product will be fully dried. Then discharging valve opens and discharging cylinder begins to work when
centrifuge automatically slows down to predetermined speed.
▷With scraper rising spirally and automatically,solid product is scraped down into the hopper equipped with spiral discharger: With constant motion of spiral discharger, product is pushed out and discharged through valve.
♦ It is fully conformed to GMP CGMP and meet the requirements of asepsis raw medicine production.
♦ With absolute isolation between power area and process area.It is suitable for occasion when customer requires high quality cleaning to avoid the contamination to product.
♦ The out shell bucket can be opened, so the whole internal parts can be observed and easy for touch wiping and cleaning.
♦ Perfect CIP system can be carried out to wash the internal parts of centrifuge to avoid cross contamination which are not easy to clean.
♦ Unique pneumatic counter-pulse device is equipped, which can remove remnant filter cake as much as possible.
♦ Totally-enclosed structure equipped with inert gas protection is adopted to be used in ex-proof 1 section.
♦ The automatic residual cakes removing device is optional (have owned the national patent).
