Quality GMP Horizontal Stainless Steel Centrifuge Bag Inverting For Pharmacy factory

GMP Horizontal Stainless Steel Centrifuge Bag Inverting For Pharmacy

Place of Origin:China

Brand Name:Peony

Certification:ISO

Model Number:FW

Minimum Order Quantity:1 set

Price:USD160000-450000/set FOB Shanghai

Payment Terms:T/T, L/C, Western Union

Supply Ability:50 sets/month

Product Details

Highlight:

GMP Stainless Steel Centrifuge

,

Horizontal Stainless Steel Centrifuge

,

GMP Horizontal Centrifuge

Application: Pharmacy, Chemical Industry, Etc

Operation: Batch, Automatic

MOC: SS

Bearing: SKF, NSK As Optional

Discharge Type: Inverting Bag Turning Discharge

Key Words: Inverting Horizontal Centrifuge

Control: PLC

Product Description

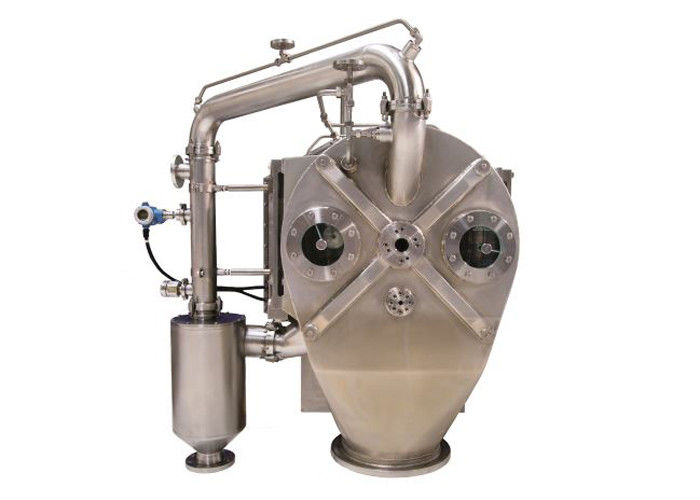

GMP Stainless Steel Centrifuge Bag Inverting Horizontal Centrifuge for Pharmacy

Working Principle

This bag inverting centrifuge is mainly composed of a rotating mechanism, a discharging mechanism, a machine base, a bearing combination, a rotating drum, a pusher, a screen, a casing, and an electric control part.

Under high-speed operation, the suspension enters the drum through the feeding tube. Under the action of centrifugal force, the suspension is evenly distributed in the filter cloth inside the drum. The liquid phase passes through the pores of the filter cloth and the gap of the screen. And the drum filter hole is drained from the mother liquor nozzle, and the solid phase is trapped on the filter screen to form an annular filter residue layer. When unloading, the main engine first slows down to the unloading speed, starts the unloading motor, and pushes the pusher from the drum. Because both ends of the filter cloth are fixed on the pusher and the drum, the filter cloth is turned inside and outside. The trapped material is turned over to the outside of the filter cloth. Also under the action of the centrifugal force field, the material is removed from the filter cloth and discharged from the discharge port.

GMP Horizontal Stainless Steel Centrifuge Bag Inverting For Pharmacy 0

Technical Parameters

Model	FW-630	FW-800	FW-1000	FW-1300
Drum diameter(mm)	630	800	1000	1300
Drum volume(L)	70	120	200	350
Filter area(m2)	0.56	0.85	1.26	2
High speed(r/min)	1940	1600	1270	1000
Maximum separation factor	1325	1144	901	726
Weight(kg)	3600	4200	5500	6500
Overall dimensions(mm)	297010401650	398014501890	499016502560	590020503250

Working process diagram

GMP Horizontal Stainless Steel Centrifuge Bag Inverting For Pharmacy 1

Applications

1. Chemical and pharmaceutical synthesis products

2. Brittle crystals

3. Toxic and/or inflammable products

4. Products whose cake can be very compressed

5. Possibility to handle very thin cakes (recovery of the residual product)

6. High reduction of the residual moisture with the HCS system

GMP Horizontal Stainless Steel Centrifuge Bag Inverting For Pharmacy 2

Features

1.Fully sealed structure design, reliable sealing, no pollution to materials.

2.The shell can be completely turned over for easy cleaning and inspection.

3.Discharge without scraper mechanical parts, no damage to gain crystal;

4.There is no material residue in the filter cloth, which facilitates the separation of materials in the next batch.

5.Damping shock absorber, no foundation installation;

6.Unmanned operation, automatic detection, and operation;

Processing Equipment

GMP Horizontal Stainless Steel Centrifuge Bag Inverting For Pharmacy 3

Guarantee

Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying out facility construction, pursuing the best quality, and producing the best product at the same time.

We are committed to rewarding you with better quality in return for our interest in and faith. We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.
