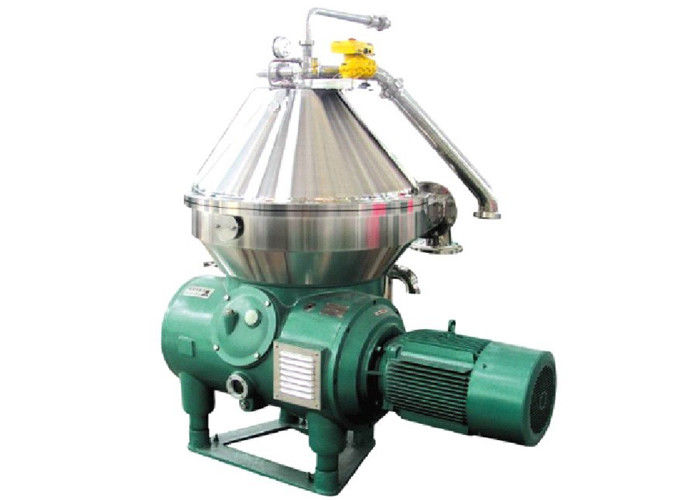

Oil Refining Food Centrifuge Separator For Soup Base Removing

Oil Refining Food Centrifuge Separator For Soup Base Removing

  • High Light

    Oil Refining Food Centrifuge

    ,

    automatic discharging Food Centrifuge Separator

    ,

    Vegetable oil centrifuge machine

  • Application
    Vegetable Oil Degumming And Desoap
  • Operation
    Automatic Continuous
  • Capacity
    1500L/h-11000L/h
  • Discharge Type
    Self-cleaning
  • Motor Power
    7.5 Kw-20kw
  • MOC
    SS
  • Bearing
    SKF
  • Product Name
    Crude Vegetable Oil Refining Separator For Soup Base Removing
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    PDSZ
  • Minimum Order Quantity
    1 set
  • Price
    USD20500-92000
  • Packaging Details
    Standard wooden case
  • Delivery Time
    60-75 days after down payment
  • Payment Terms
    TT,.LC, Western Union
  • Supply Ability
    80 sets per month

Oil Refining Food Centrifuge Separator For Soup Base Removing



Crude Vegetable Oil Refining Separator For Soup Base Removing



Characteristics:

1. Model PDSV separator is mainly used to remove off the soap-stocks, blue and from the vegetable oil during the oil refining process, It is also used to the similar feedstock of liquid-liquid-solid three-phase materials.
2. The machine adopts automatic control, it has the advantage of high efficiency, low material consumption, convenient operation, and economic maintenance cost.
3. The heavy phase liquid and light phase liquid are pumped out by a centripetal pump. The sludge is discharged automatically and partly.
4. The machine is one kind of rotary machine with high speed, after accurate dynamic balancing, it can run for a long time with low vibration, safety, and security.

Oil Refining Food Centrifuge Separator For Soup Base Removing 0



Features of Products and Applications:

PDSV series automatic discharging separator is the special equipment for oil and fat refining, it has the traits such as high rotating speed, operating stability, completely sealed up of the inlet and outlet system, lower noise, and fine separating effect. The centripetal pump system designed by our professional designer has the trails such as stability outlet pressure, large regulating sphere, and operating easily.
Also, this series separator has a professional automatic domination case with a safety protection device, the advanced automatic vibrating testing instrument can view vibrating numbers at any time. We can make separating and discharging to the best affection from regulating separating parameter directly at the screen.
This machine is widely used in degumming, de-soap, and water washing technology in the vegetable oil refinery. It can also be used for refining of animal oil and mineral oil, and liquid-liquid and liquid-solid separations of light industry, chemical industry, medicine and food industry. PDSV series are used in pigment separating.



Main Technical Specification



Discharging type Part discharging
Rated capacity l/h 1500-2000
Motor power kw 7.5(380V/50Hz/3P)
N.W. kg 926
Overall Size (L × W × H) mm 1355 × 945 × 1388



Dimension Drawing:



Oil Refining Food Centrifuge Separator For Soup Base Removing 1



Installation Notice:



1. For maintenance and repair, please leave enough space around the separator when installing it.
2. The installation base should be firm and level.
3. All the pipes connecting with the separator should be flexible.
4. The operation water of the separator must be soft water, the pressure of which should between 0.025Mpa and 0.03Mpa.


More Pictures:

Oil Refining Food Centrifuge Separator For Soup Base Removing 2
Oil Refining Food Centrifuge Separator For Soup Base Removing 3





Guarantee:



Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to rewarding you with better quality in return for our interest in and faith.
We will do our utmost for one more stepping forward, based on our infinite services and trust in customers.





Our service



1. 12 months guarantee period from machine arriving date.

2. Abundant spare parts in stock are available to provide.

3. Our technicians could be dispatched for overseas service.

4. 7*24 hours technical consultation.

5. Your workers could get trained both in our factory and yours.

6. Routine tracing till the machine work properly will be done timely.

7. We will remind you to do the normal maintenance.

8. Your suggestions or any comments & reflection would be treated as a priority.

9. Marketing team will visit you during our visit to your country if you require.
