ISO9001 11KW Disc Bowl Centrifuge Solid Liquid Separation

Product Details

Place of Origin: China

Brand Name: Peony

Certification: ISO9001&ISO14001,CE

Model Number: PDSLA-400/600

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD20000~25000/SET FOB Shanghai

Packaging Details: Standard export packing

Delivery Time: 45-60 days

Payment Terms: TT,.LC, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability: 50 sets per month

Get Best Price
Contact Now
Specifications
Highlight:

ISO9001 disc bowl centrifuge

,

11KW disc bowl centrifuge

,

ISO9001 disk bowl centrifuge

NameLatex Centrifuge Machine:
Latex Rubber Centrifuge
Usage:
For Concentrate Natural Latex
Discharge:
Manual
Power:
11kw
Type:
Disc Separator
Colour:
Blue Or Green
Standard:
G.B.
Capacity:
400l~600l
Keywords:
Latex Rubber Centrifuge
Separation:
Solid Liquid Separation
NameLatex Centrifuge Machine:
Latex Rubber Centrifuge
Usage:
For Concentrate Natural Latex
Discharge:
Manual
Power:
11kw
Type:
Disc Separator
Colour:
Blue Or Green
Standard:
G.B.
Capacity:
400l~600l
Keywords:
Latex Rubber Centrifuge
Separation:
Solid Liquid Separation
Description

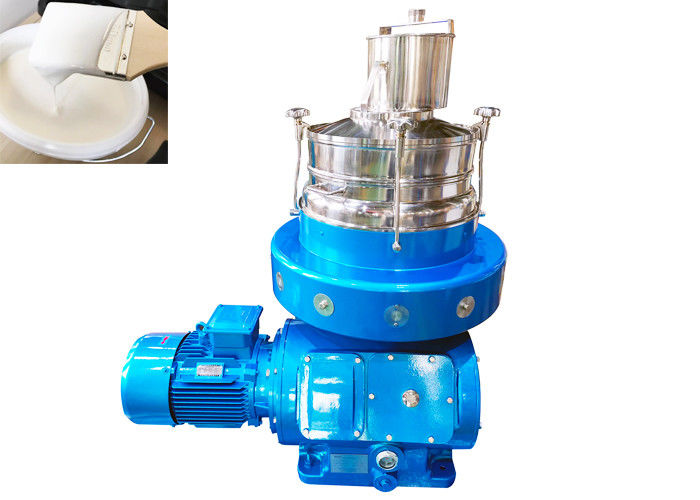

ISO9001 11KW Disc Bowl Centrifuge Solid Liquid Separation



China Made Disc Stack Centrifuge Latex Rubber Centrifuge for Fresh Latex Concentration




 Description



The natural latex is from rubber tree, milk white , solid content is 30%~40%, and the average diameter of solid is 1.06um. The fresh natural latex contain latex 27%~41.3%(m/m) ,water 44%~70% ,protein 0.2%~4.5% ,natural resin 2%~5% ,saccharides 0.36%~4.2% and ash 0.4% . To facilitate transportation and processing, natural rubber latex should be concentrated to the solid content of 60% by adopting the method of centrifugal or evaporation. so it also known as concentrated latex.



ISO9001 11KW Disc Bowl Centrifuge Solid Liquid Separation 0



Latex Concentration Centrifuge model PDSLA-400/600 is suitable for concentrating and purifying of the natural latex.It can separate the latex into the cream and skim,as well as eliminate the solid impurities at the same time.This model of separator is provided with the following advantages:inverter start-up,el.magnetic brake,short stopping-and long effective separating time,large treatment capacity,good separating efficiency.It is really a excellent equipment for the latex production.



Latex Concentration Centrifuge model PDSLA-400/600 is suitable for concentrating and purifying of the natural latex.It can separate the latex into the cream and skim,as well as eliminate the solid impurities st the same time. It is really a excellent equipment for the latex production.




 Main Technical Specification



Model

PDSLA-400/600

Rated capacity (L/h)

400-600

Motor power (kw)

11.0

Net Weight (kg)

1100

Gross Weight (kg)

1550

Dimension (L×W×H)

1260*930*1700

Dimension of package (L×W×H)

1570*1430*1900





 Advantages



Inverter start-up,

El.magnetic brake,

Short stopping-and long effective separating time,

Large treatment capacity,

Good separating efficiency.





Dimensions

ISO9001 11KW Disc Bowl Centrifuge Solid Liquid Separation 1

Installation
ISO9001 11KW Disc Bowl Centrifuge Solid Liquid Separation 2



 Process Flow Chart
ISO9001 11KW Disc Bowl Centrifuge Solid Liquid Separation 3





 Pictures


ISO9001 11KW Disc Bowl Centrifuge Solid Liquid Separation 4



 Site photo



ISO9001 11KW Disc Bowl Centrifuge Solid Liquid Separation 5





 Guarantee


Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to reward you with a better quality in return for our interest in and faith toward.
We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.





 Processing equipment



ISO9001 11KW Disc Bowl Centrifuge Solid Liquid Separation 6





 Our factory



Zhangjiagang Peony Machinery Co.,ltd was established in 1958, covering an area of 650000 m2, there are 2300 staff and employee in our company, 281 of them are technicians and engineers.It has obtained the approvals and certifications of both ISO9001:2008 quality control system and the military product quality certificate,BV and CE certificates,some of our machines gained the new technology invent patent.

We are one of the world’s leading manufacturers of pusher centrifuge, salt production line etc. We focus on food production, environmental protection,energy recycling, chemistry and marine. Now, there are over 150 series of decanter centrifuges and disc separators used home and abroad, Including U.S.A,Canada, Australia, Malaysia and so on totally 50 countries.

We own various kinds of inspection and testing facilities with value over USD 10 million, now 16 testing tables, 6920 gear testing center, X ray detecting machine, high speed dynamic balancing machine, ultrasonic flaw detection machines, etc. We are equipped with complete testing, inspection, analysis control system, advanced testing machines and stimulative working condition test table and automatic control testing system, which guarantees our new product research, processing validation and quality.

We are strongly equipped the robust and precise processing machines from Germany, Italian, England and our domestic famous brand.
