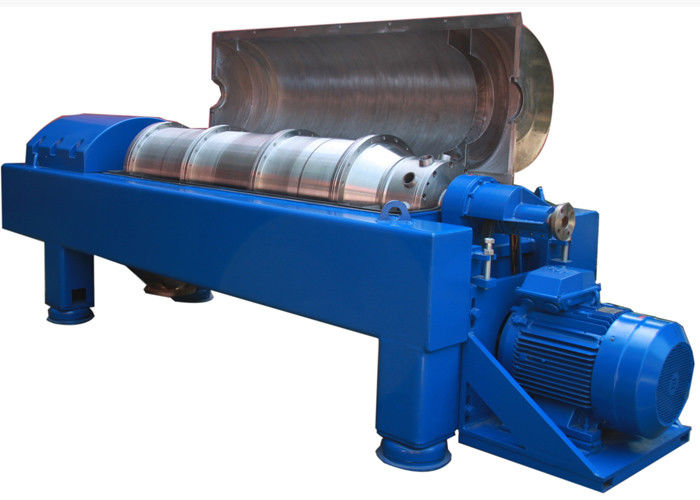

Factory Use Chemical Centrifuge Calium Hypochlorate Decanter Centrifuge Made in Titanium

Factory Use Chemical Centrifuge Calium Hypochlorate Decanter Centrifuge Made in Titanium

  • High Light

    Calcium Hypochlorite chemical centrifuges

    ,

    Calcium Hypochlorite Decanter centrifuge

    ,

    25m3/h Decanter centrifuge

  • Keywords
    Calium Hypochlorate Decanter Centrifuge
  • Usage
    For Processing Calcium Hypochlorite
  • Conveyor
    Made Of Tianium
  • Control
    PLC Control Box
  • Advantage
    Resistance Of Corrosion
  • Separation
    Solid-liquid
  • Service Life
    Long Time
  • MOC
    Tianium
  • Discharging Type
    Continuous
  • Type
    Horizontal
  • Place of Origin
    CE
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    PDC
  • Minimum Order Quantity
    1set
  • Price
    negotiation
  • Packaging Details
    standard export wooden case
  • Delivery Time
    60days
  • Payment Terms
    D/A, D/P, Western Union, L/C, MoneyGram, T/T
  • Supply Ability
    20sets/month

Factory Use Chemical Centrifuge Calium Hypochlorate Decanter Centrifuge Made in Titanium

Factory Use Chemical Centrifuge Calium Hypochlorate Decanter Centrifuge Made in Titanium



Working principle

Taking advantage of the principle that the light liquid, heavy liquid and solid phase, with different density and mutually insoluble in the mixed liquid, gain different sedimentation speed in the centrifugal force field or gravity force field, separating stratification or causing the solid particles in the liquid to deposit can be achieved.



In the gravity force field or centrifugal force field, the light liquid phase, the heavy liquid phase and the solid phase with different density and mutually insoluble in the mixed liquid, respectively gain different sedimentation speed, and thus separate and stratify. In the gravity force field it is called gravity separation, while in the centrifugal force field it is called centrifugal separation.



Gravity separation



On account of difference in density, the mixed liquid in the container, after a period of time, is gradually divided into 2 layers. The heavy phase particle of the mixed liquid deposits to the bottom of the container, while the light phase one suspends to the upper surface. A rather distinctive dividing plane forms

between the light and heavy phases. The separation speed

 is affected by the difference in density between the light and heavy phases that make up the mixed liquid.The larger the difference in density is, the faster the separation speed will be.



Technical drawing

Model

Diameter

(mm)

Speed (rpm) G-force

Capacity

(m3/h)

Main motor Power

(kw)

Assistant motor power

(kw)

Weight

(kg)

Overall Size

(L × W × H)

(mm)

PNX-409 250 5500 3493 0.2-2 15 4 1020 2500 x 650 x 760
PNX-414 355 4000 3175 1~10 18.5 7.5 2035 2765 × 920 × 1060
PNX-416 355 4000 3175 1~15 18.5 7.5 2122 3065 × 920 × 1060
PNX-418 355 4000 3175 1~25 22 7.5 2222 3365 × 920 × 1060
PDC-17-4 420 3600 3042 3~15 30 7.5 2230 3331 × 990 × 1066
PDC-18-4.4 450 3300 2739 10~20 37 11 2739 4000 × 1120 × 1239
PDC-20 500 3200 2860 5~45 55 11 4400 4489 × 1160 × 1350
PDC-21 540 2800 2366 15~50 45 15 5290 4587 × 1285 × 1368
PDC-24 620 3200 3555 15-60 Hydraulic 90 8000 4650 x 2010 x 1200
PDC-28HH 720 2200 1975 15-80 110 37 9393 4800 X 1350 X 1500





Structure drawing

Factory Use Chemical Centrifuge Calium Hypochlorate Decanter Centrifuge Made in Titanium 0








Factory Use Chemical Centrifuge Calium Hypochlorate Decanter Centrifuge Made in Titanium 1
