SS316L 7280rpm Concentration Latex Centrifuge Machine Two Motors

SS316L 7280rpm Concentration Latex Centrifuge Machine Two Motors

  • High Light

    SS316L latex centrifuge machine

    ,

    7280rpm latex centrifuge machine

    ,

    SS316L concentration centrifuge

  • Type
    Latex Rubber
  • Application
    Solid-liquid Separation
  • Sanitary Degree
    GMP
  • Motor
    Two Motors
  • Discharge Type
    Disc Separator Similar RAS Model
  • Function
    Concentrating And Purifying Of The Natural Latex
  • Electrical Control Cabinet
    Inverter Start-up
  • Keywords
    Latex Concentration Centrifuge
  • Material
    SS316L
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO,CE, ISO
  • Model Number
    PDC
  • Minimum Order Quantity
    1 set
  • Price
    please contact me
  • Packaging Details
    Standard wooden case
  • Delivery Time
    60 days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    100sets per month

SS316L 7280rpm Concentration Latex Centrifuge Machine Two Motors

Latex Concentration Centrifuge As Separator High Speed Centrifugal Latex Rubber

Product Description
The natural latex is from rubber tree, milk white , solid content is 30%~40%, and the average diameter of solid is 1.06um. The fresh natural latex contain latex 27%~41.3%(m/m), water 44%~70%, protein 0.2%~4.5%, natural resin 2%~5%, saccharides 0.36%~4.2% and ash 0.4% . To facilitate transportation and processing, natural rubber latex should be concentrated to the solid content of 60% by adopting the method of centrifugal or evaporation, so it also known as concentrated latex. Latex separator model PDSLA-400/600 is suitable for concentrating and purifying of the natural latex. It can separate the latex into the cream and skim, as well as eliminate the solid impurities at the same time. This model of separator is provided with the following advantages: inverter start-up, el. magnetic brake, short stopping-and long effective separating time, large treatment capacity, good separating efficiency. It is really a excellent equipment for the latex production.

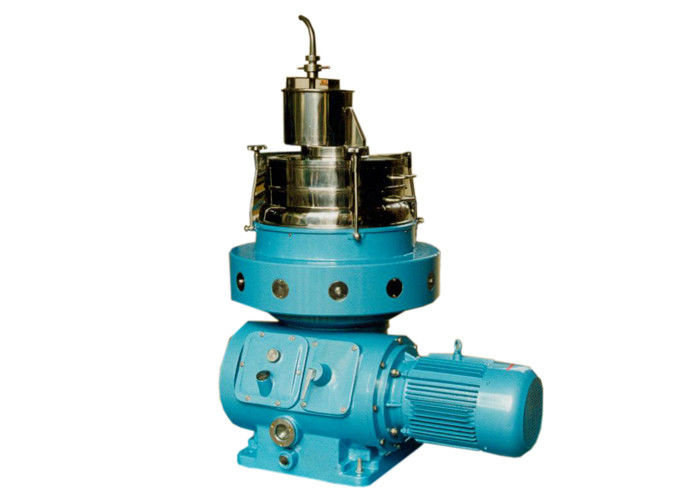

SS316L 7280rpm Concentration Latex Centrifuge Machine Two Motors 0

Working Principle

The liquids and solids, which are, will be, due to the different sediment velocities to be gained, separated and sediment in the centrifuge and gravity force fields thus to reach the purpose of separation. The liquid phase and solid phase, which interactive indissoluble and with different densities in the turbid liquid will be gained different sediment velocities, so as to be divided into layers, which can be separated from each other. The separations that occur in the gravity field are called gravity separation and sedimentation in the centrifuge field called centrifugal separation and sedimentation.

Gravity Separation When the turbid liquid is in the sediment pool, the solids with bigger density sediments slowly in the gravitational fields by the gravity, finely the turbid liquid will become clearer and clearer. The liquid with smaller density will float on the top. For gravitational separation, it will take long time and more floor space occupied, especially, for the of the liquid with solid and liquid small differ and big stickiness, gravitational separation of it is difficult to be realized.
Centrifuge Separation The indissoluble liquids and solids with different densities will be separated while they are rotated at a high speed in the bowl, where the particles with heavier density move to the inside wall of bowl body, the lighter liquid toward the center of the bowl. Because the centrifugal force generated in the centrifuge fields in much larger than the gravity force, it takes only very short time for the centrifuge separation to achieve the same separation efficiency in the gravity fields. Especially when the gravity separation cannot be available, the application of best method is by centrifuge separation.

Specification
Model
PDSLA-400/600
Rated capacity (L/h)
400-600
Motor power (kw)
11.0
Rotation speed of bowl
7280rpm
Inner diameter of bowl
¢400mm
G-force
11000


Material
MOC:2Cr13
Hood:SS304
Others:CS+Painting
Net Weight (kg)
1100
Gross Weight (kg)
1550
Dimension (L×W×H)
1260*930*1700
Dimension of package (L×W×H)
1570*1430*1900





Separation space There is a stack of discs installed in the bowl, which divide the bowl space into many conical cavities. That can shorten the sedimentation distance and improve the separation efficiency. The moving trace of the limit particle “A” occurs between the discs (conical cavity). Any particles between A and B can reach the inside of the discs through this passage section thus to be separated off.

Separation Methods As per the requirements of application, this machine can separate the fresh latex into light phase (latex), heavy phase (residual latex) and a bit of solid phase. This separator has one inlet and two outlets in it.
SS316L 7280rpm Concentration Latex Centrifuge Machine Two Motors 1
