Product Details
Place of Origin: China
Brand Name: Peony
Certification: CCS
Model Number: PDSD1500-M-B1207
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD10000-12000/SET FOB SHANGHAI
Packaging Details: Standard export packing
Delivery Time: 60 days after down payment if without stock
Payment Terms: TT,.LC, Western Union
Supply Ability: 100 sets per month
Performance Index Of Material: |
Viscidity(380 ~700 CSt/50℃)density (1010kg/m3) |
Capacity: |
1500L/h |
System Integration: |
Standardized, Modular |
Application: |
FO, HFO, DO, Etc |
Discharge Type: |
Manual |
Structure: |
MAB103 |
MOC: |
SS |
Bearing: |
SKF |
Control Box: |
With |
Product Name: |
1500LPH Diesel Oil Spearator Manually Discharge Type |
Performance Index Of Material: |
Viscidity(380 ~700 CSt/50℃)density (1010kg/m3) |
Capacity: |
1500L/h |
System Integration: |
Standardized, Modular |
Application: |
FO, HFO, DO, Etc |
Discharge Type: |
Manual |
Structure: |
MAB103 |
MOC: |
SS |
Bearing: |
SKF |
Control Box: |
With |
Product Name: |
1500LPH Diesel Oil Spearator Manually Discharge Type |

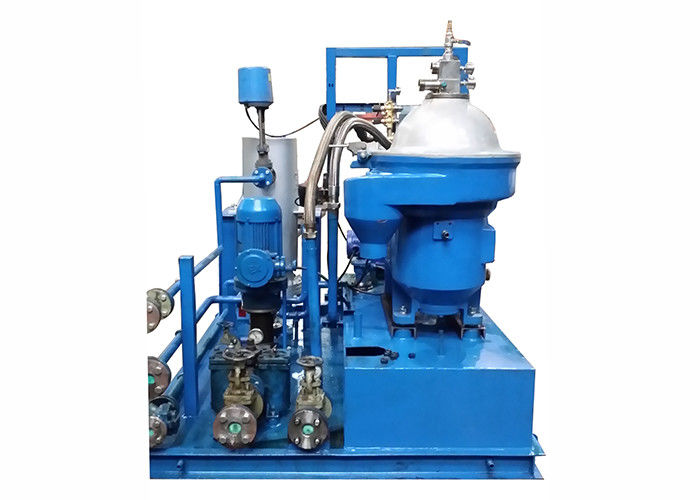

1500LPH Diesel Oil Separator Manually Discharge Type
Description:
1.Model PDSD1500-M-B1207 separator modular is mainly used to remove water and mechanical impurities from diesel oil, lubricating oil, and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machines, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove a small number of solid particles from the liquid.
2.The machine has the advantages of high efficiency, low oil consumption, convenient operation, and economic maintenance cost.
3.The clear oil and dirty water are let out freely, the sludge is discharged manually.
4.The machine is one kind of rotary machine with high speed, After accurate dynamic balancing, it can run for a long time with low vibration, safety, and security.
5.The design, product, and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.
Advantages:
1. Manual type slag removal unit
2. modular design
3. automatic control
Main Technical Specification:
Discharging type |
Manually Discharging |
|
Max capacity(L/h) |
Diesel recommended processing
|
1600 |
SAE30/40 Lubricating oil is recommended
|
800 |
|
Operation type |
Manual |
|
Standard collocation of control |
High temperature, low pressure, auto temperature adjust, including the comprehensive alarm |
|
Size |
LXWXH(mm) |
1050x1000x1550 |
Condition for mineral oil separation and actual capacity (refer to the chart)
Oil types |
Heavy diesel oil |
Lubrication oil |
||||||||
SAE30,40 |
Detergence oil |
Steam turbine oil |
||||||||
Kinematical viscosity(mm2/s) |
13 |
20.5 |
36.2 |
80 |
100-120 |
61.2-74.8 |
||||
50℃ |
40℃ |
40℃ |
||||||||
Density/(kg/m3)(20℃) |
<900 |
900-991 |
880-900 |
<900 |
||||||
Separating temperature (℃) |
40 |
60 |
80 |
80-95 |
||||||
Recommended capacity (l/h) |
1650 |
1500 |
900-975 |
750-900 |
375-450 |
1200-1275 |
||||
If you have special requirements, Please connect with us. |
Peony organizes the model selection question as below:
1)How many kinds of oil can you separate?
This series separator is widely used for kinds of oils, especially for Marine diesel oil and similar oil, such as light fuel oil, heavy fuel oil, lubrication oil, steam turbine oil, detergence oil, engine oil, etc
2)How can you select the suitable capacity?
Different oil has different capacities, our 1500L, 2000L, 3000L, 4000L, 5000L, 6000L, 8000L,10000L capacity is for the Marine diesel oil 0# as a sample. It also depends on the viscidity, temperature, and for all the capacity models, we have an oil characteristic sheet to help our customers to find out what their oil is, and what capacity their oil belongs to.
3) Is your separator self-cleaning?
We have 3 types of discharge means according to different material and customer's requirements, we have the self-cleaning model and manual cleaning model.
1. Manual discharge model for the oil with a very little solid component
2. Full discharge model for the big capacity treatment and a little solid component
3. Partly discharge model for the bigger capacity treatment and more solid component
4.Variable discharge model
No.full discharge type and partially discharge type are both self-cleaning models.
4)Will you help us to select the model?
Yes, you can select the model by yourself, or as long as you provide your material characteristic, we have a professional engineer team to help you select the suitable machine
5)Do you only have a single machine or the unit?
Both we have.
