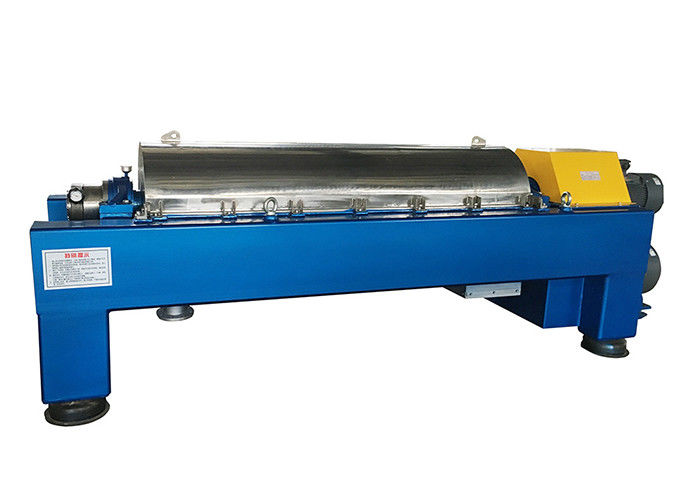

Juice Separation Food Decanter Centrifuge / Solid Bowl Centrifuges

Juice Separation Food Decanter Centrifuge / Solid Bowl Centrifuges

  • High Light

    solid bowl decanter centrifuge

    ,

    Food Decanter Centrifuge

    ,

    Juice Separation Decanter Centrifuge

  • Application
    Liquid-solid Separation
  • Operation
    Automatic Continuous
  • MOC
    SS
  • Bearing
    SKF, NSK As Optional
  • Motor
    Double
  • Control Box
    With
  • PLC
    Optional
  • Product Name
    Juice Separation Food Decanter Centrifuge / Solid Bowl Centrifuges
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    PDC-W
  • Minimum Order Quantity
    1 set
  • Price
    USD20000-100000/SET FOB Shanghai
  • Packaging Details
    Standard wooden case
  • Delivery Time
    75-90 days after deposit
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    100 sets per month

Juice Separation Food Decanter Centrifuge / Solid Bowl Centrifuges


Juice Separation Food Decanter Centrifuge / Solid Bowl Centrifuges





Description:



Decanter centrifuges, also called solid bowl centrifuges, are generally designed as two-phase or three-phase machines and are extremely versatile. Taking advantage of the principle that the liquid and solid phase, with different density and mutually insoluble in the mixed liquid, gain different sedimentation speed in the centrifugal force field or gravity force field, separating stratification or causing the solid particles in the liquid to deposit can be achieved.

Juice Separation Food Decanter Centrifuge / Solid Bowl Centrifuges 0





Separation principle

In the gravity force field or centrifugal force field, the liquid phase and the solid phase with different density and mutually insoluble in the mixed liquid, respectively gain different sedimentation speed, and thus separate and stratify. In the gravity force field, it is called gravity separation, while in the centrifugal force field it is called centrifugal separation.

The machine could deal with the material which range of concentration is large, small size which widely distributing. Solid particles are less than 0.5mm as rigid particles, and less than 10mm as non-rigid particles, the machine can be effectively treated. The decanter centrifuge is applicable to the separating of suspension containing solid-phase granules with a diameter greater than 0.005 mm and with the concentration being 2~40%.







Applications:



Animal protein

Fish oil and fishmeal by-product processing

Surimi processing

Soybean protein, peanut protein, corn protein, beer yeast.bone protein, bone blue, blood power dewatering, etc.

Vegetable protein

Extraction from soybeans, oilseeds, and some crops

Edible oil

Clarification of palm oil, olive oil, and pressed bean and seed oil

Juice

Extraction from fruit, citric acid, and coconut milk

Starch processing

Starch washing, dewatering, and clarification based on wheat, maize, tapioca, cassava, and potatoes





Specifications:



Model

Drum

G-force

Capacity

(m3/h)

Max solid

discharge

(m3/h)

Power

(kW)

Weight

(kg)

Overall size

(L×W×H)

(mm)

Diameter

(mm)

Speed

(rpm)

Length

(mm)

Length-to-diameter

 rate

PDC-10-W

250

5400

1000

4

4080

0.5~5

0.4

11/4

1000

2410 × 800 × 1080

PDC-12-4-W

300

4200

1200

4

3500

1~5

0.6

11/4

1200

2610 × 800 × 1080

PDC-12-4.5-W

300

4200

1350

4.5

3000

1~10

0.8

11/4

1400

2760 × 800 × 1080

PDC-14-W

355

4000

1600

4.5

3180

1~20

1.2

18.5/7.5

1800

3495 × 840 × 1180

PDC-16-W

400

3650

1800

4.5

3000

2~25

2

22/7.5

2500

3890 × 1020 × 1205

PDC-18-4.4-W

450

3200

2000

4.4

2600

3~35

2.8

30/11

3000

4297 × 1080 × 1385

PDC-18-4.8-W

450

3200

2150

4.8

2600

4~40

3

37/11

3200

4447 × 1080 × 1385

PDC-20-4-W

500

3000

2000

4

2500

5~45

3.2

37/11

3800

4330 × 1140 × 1470

PDC-20-4.5-W

500

3000

2250

4.5

2500

8~50

3.5

45/15

4000

4580 × 1140 × 1470

PDC-21-W

530

2900

2280

4.3

2500

15~65

5

55/15

5000

4924 × 1170 × 1540

PDC-23-W

580

2780

2500

4.3

2500

20~80

6.5

75/18.5

6500

5205 × 1270 × 1540

PDC-26-W

650

2500

2800

4.3

2270

25~110

8

75/18.5

7000

4300 × 1900 × 1350





Competitive Advantages:



 High rotation speed, high G force, big length -diameter ratio.

 Large capacity
 Low vibration, low noises strong afford capacity

 Multiple protecting apparatus, reliable running

 Reliable gearbox system

 Corrosion-resistant and resistant key parts

 Flexible drive and speed adjust the mode

 Famous and reliable electrical components





Reference Pictures



Juice Separation Food Decanter Centrifuge / Solid Bowl Centrifuges 1

Juice Separation Food Decanter Centrifuge / Solid Bowl Centrifuges 2
