135kg Capacity GMP Wall Through Pharmaceutical Centrifuge Machine

135kg Capacity GMP Wall Through Pharmaceutical Centrifuge Machine

  • High Light

    Wall Through Pharmaceutical Centrifuge Machine

    ,

    GMP Pharmaceutical Centrifuge Machine

    ,

    135kg centrifuge pharmaceutical

  • Product Type
    Centrifuge
  • Voltage
    Customized
  • Condition
    New
  • Dimension(l*w*h)
    Standard(Can Be Customized)
  • Warranty
    12 Months
  • After-sales Service Provided
    Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service,commissioning And Training
  • Type
    Centrifuge,Separating Plant
  • Material
    Stainless Steel,carbon Steel,Stainless Steel SS304 Or SS316 As Requirement
  • Application
    Starch Separation,Chemical Industry,Chemical Powder/Pharmacical/Liquid
  • Name
    Starch Separator
  • Discharge
    Full Discharge,Automatic Discharge,automatically
  • Operation
    Continuous,Easy Operation,Automatic Continuous Operation
  • Place of Origin
    Jiangsu
  • Brand Name
    Peony
  • Certification
    ISO,CE
  • Model Number
    GK
  • Minimum Order Quantity
    1
  • Price
    FOB
  • Packaging Details
    Standard export packings
  • Delivery Time
    60 DAYS
  • Payment Terms
    L/C, T/T

135kg Capacity GMP Wall Through Pharmaceutical Centrifuge Machine

Description

When the drum driven the motor runs at full speed, the feed valve automatically opens up and the suspension liquid goes through the feed pipe into the drum, where the liquid phase passes through the filter gauze and the screen openings on the drum and is kicked off by the centrifugal force and flows out of the tangential discharging outlet, while the solid phase is retained inside the drum. When the set time is reached, the feeding stops.



After a given period of time of separation and dehydration, the washing valve acts and the cleaning liquid passes through the washing pipe into the drum to wash the filter cake. Upon the completion of washing, further separation is conducted till the required degree of dryness of the cake is reached. Then discharging starts: the scraper holder rotates enabling the scraper to cut into the cake layer and the cake is scraped off and discharged from the material hopper.

135kg Capacity GMP Wall Through Pharmaceutical Centrifuge Machine 0





Applications

Model PPC/PPCS centrifuge is the filter equipment characterized with continuous running, scraper discharging and intermittent operation, applicable to the separation of the suspension liquid containing medium-sized granules or fine granules (0.01mm~5mm).



It can also be used for the separating of the suspension liquid containing short fibers (with the fiber length less than 4mm), with the concentration of the suspension liquid being 10%~60%. With hydraulic and electric joint control mode adopted, this series of centrifuges are capable of high degree of automization, with such working processes as feeding, dehydrating, washing, discharging, etc. being operated manually or by means of PLC for full automatic control.



The horizontal scraper discharging centrifuge has good adaptability to the material to be processed and thus can be widely used in such industrial fields as chemical, light industry, food, pharmacy, etc. for the separating of over 100 kinds of substances including ammonia sulphate, sodium sulphate, anthracene, boric acid, starch, pesticide, synthetic resin, sodium cyanide, potassium chloride, sodium bicarbonate, etc.



Specification

Model Drum G-force Power(kw) Weight(kg)

Diameter

(mm)

Volume

(L)

Capacity

(kg)

Speed

(r/min)

PPC-135 800 95 135 1600 1150 30 5000
PPCS-135 800 95 135 1600 1150 37 5500
PPC-135 GMP 800 95 135 1600 1150 37 6500
PPC-312 1000 208 312 1350 1020 45 6500
PPCS-312 1000 208 312 1350 1020 55 7000
PPC-288 1200 230 288 1200 968 45 8000
PPC-375 1250 250 375 1200 1008 45 9000
PPCS-555 1250 370 555 1200 1008 75 12000
PPC-960 1600 650 960 850 650 75 13500
PPCS-960 1600 650 960 850 650 90 15000



Pictures

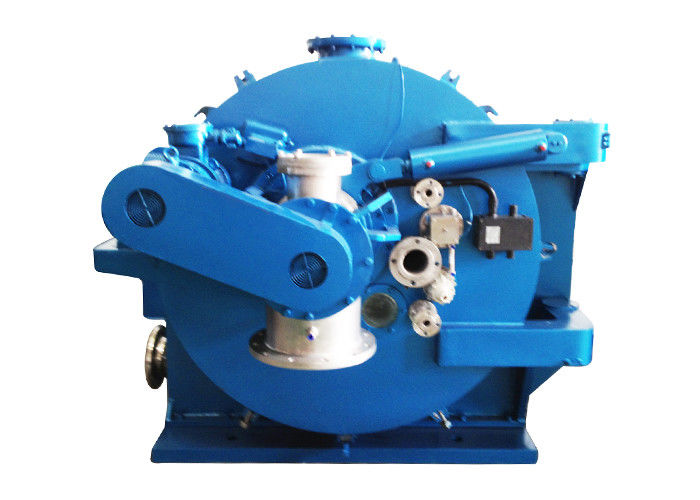

135kg Capacity GMP Wall Through Pharmaceutical Centrifuge Machine 1

135kg Capacity GMP Wall Through Pharmaceutical Centrifuge Machine 2



Certificate

135kg Capacity GMP Wall Through Pharmaceutical Centrifuge Machine 3
