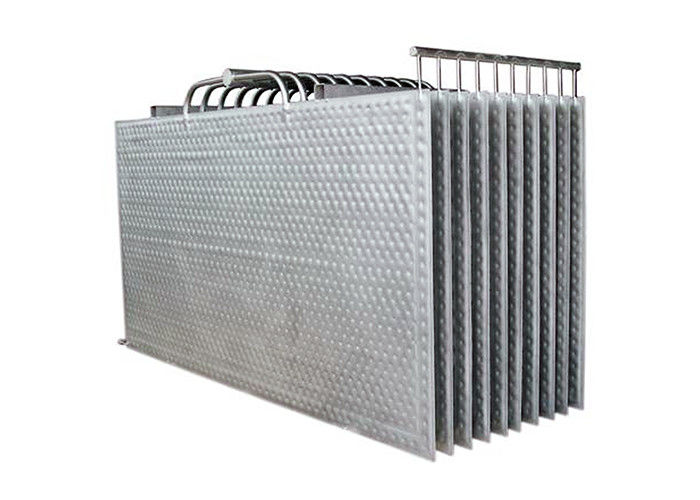

Double Embossed Dimple Plate Heat Exchanger for Heating or Cooling

Product Details

Place of Origin: Jiangsu China

Brand Name: Peony

Certification: ISO

Model Number: PP

Payment & Shipping Terms

Minimum Order Quantity: 100 Square Meter

Price: $100.00 - $1,000.00 / Square Meter

Packaging Details: Film wrapping+Wooden case fumigated for single embossing plate

Delivery Time: 5-8 days

Supply Ability: 5000 Square Meter/Square Meters per Week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Cooling Dimple Plate Heat Exchanger, Heating Dimple Plate Heat Exchanger


Material:	SS304 SS316，2205，Titanium	Length:	0-12000mm
Application:	Heat Exchange, Evaporate, Condensation, Etc	Technique:	Laser Welding
Embossed Plate Thickness:	0.8-2.0mm	Standard:	AiSi, GB
Width:	1-2000mm	Processing Service:	Bending, Welding, Decoiling, Cutting
Base Plate Thickness:	2-15mm

Material:	SS304 SS316，2205，Titanium
Length:	0-12000mm
Application:	Heat Exchange, Evaporate, Condensation, Etc
Technique:	Laser Welding
Embossed Plate Thickness:	0.8-2.0mm
Standard:	AiSi, GB
Width:	1-2000mm
Processing Service:	Bending, Welding, Decoiling, Cutting
Base Plate Thickness:	2-15mm

Description

Double Embossed Dimple Plate Heat Exchanger for Heating or Cooling

Product Overview

Technology

Two sheets of steel are overlapped and welded by laser. Laser ring welding is used in the middle of the sheet and two laser welding seals are used around the edge.Injecting high-pressure liquid between plates makes the plates expand and deform under pressure, forming a hollow plate heat exchanger with uneven surface.

Plate Type

Double-sided drum pressure, generally used as immersion heat exchange element.Single-sided drum pressure, generally as a flat sleeve or clamped heat exchanger.


Detailed Images

Manufacturing process

1. The two steel plates are superposed together, and laser welding is carried out. Laser ring welding is used in the middle of the plates, and two laser welding edges are done around the plates.2. High pressure liquid is injected between the plates to make the plates expand and deform under pressure, forming a hollow plate-like heat exchange element with uneven surface.

Features

			Pressure resistant (＞5Mpa)
			Pressure resistant (＞5Mpa)

			Fouling resistant
			Low flow resistance

			Compact structure
			Easy to clean

			Customizable shape
			Customizable material

			Max size of individual plate: 2000mm*12000mm

About us

Our company's production base is located in the Leyu Industrial Zone of zhangjiagang, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.

The company's main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment.
