CE Metal Forced Circulation MVR Evaporation System For NaCl Crystalization

CE Metal Forced Circulation MVR Evaporation System For NaCl Crystalization

  • High Light

    mechanical vapor recompression

    ,

    mvr mechanical vapor recompression

  • Features
    Secondary Steam Recycling
  • Application
    NaCl Crystalization
  • Working Temperature
    40℃-100℃
  • Evaporation Capacity
    200kg/h-100t/h
  • Certification
    CE/ISO Etc.
  • Advantage
    Lowest Energy Consumption
  • MOC
    Stainless Steel 304/316L/DSS/TA2 Etc.
  • Type
    Forced Circle Evaporator
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    MVR
  • Minimum Order Quantity
    1 set
  • Price
    USD150000-1000000/SET FOB SHANGHAI
  • Packaging Details
    Film wrapping+Wooden case fumigated for forced circle evaporator
  • Delivery Time
    75-90 days after down payment
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    100 sets/month

CE Metal Forced Circulation MVR Evaporation System For NaCl Crystalization



Forced Circulation MVR Evaporation System For NaCl crystalization





Introduction:



Forced circulation evaporation crystallization system widely used, in the form of raw material liquid by the circulation pump with circular mother liquor to the heater for heating, and then enter the FC crystallizer, part of the crystal slurry discharge by the conical bottom of the mold, did not come in mother liquor by circular tube by circulating pump easily return to crystal room, cycle, continuous crystallization process.



This kind of crystallizer can enhance the heat transfer effect, is effective for high density, high viscosity solution, has a large production capacity, is suitable for the complex composition, the high salt wastewater evaporation crystallization treatment of the requirements of the salt granulation is not high.







Feature:



1. Loose requirements on the nature of materials, system operation flexibility;

2. The mold adopts axial feeding mode to improve the crystallization effect;

3. High flow rate in the heat exchange tube, improve the wall scaling phenomenon.







Working Principle:



The raw material will be heated in the heating chamber, material evaporated and gas-liquid separated will be proceed in the separation chamber as the raw material flowing circularly with a high speed in the heating chamber and separation chamber through the circulating pump.

The high flowing speed of the material in the heat exchange tube can improve the heat transfer efficiency the evaporation will be porceed in the separator machine not the heater. So,the scaling phenomenon caused by crystallization and precipitation in the tube will be droped to the lowest limit.







Application:

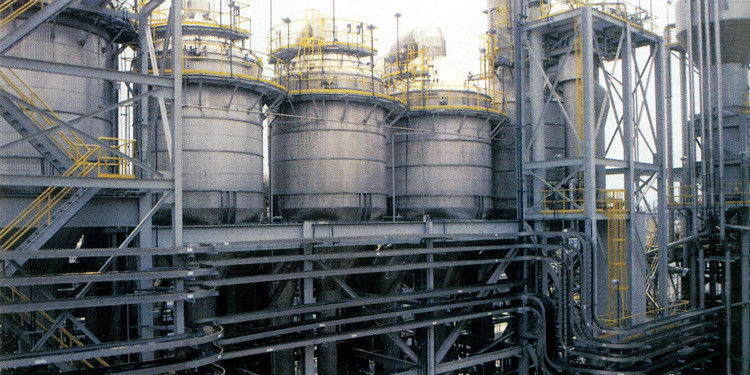

CE Metal Forced Circulation MVR Evaporation System For NaCl Crystalization 0




More pictures



CE Metal Forced Circulation MVR Evaporation System For NaCl Crystalization 1







Customer site:



CE Metal Forced Circulation MVR Evaporation System For NaCl Crystalization 2



FAQ:

1. How can we visit your factory?
* If you come from aborad,air to shanghai or nanjing airport,or if you arrive shanghai,you can take bullet trian
* If you come from domestic city,air or train directly to Nanjing Nan or WUXI east,we will pick you up both from airport or railway station

2. Can we visit your end user or contact them?
* Yes,we will provide you the name list,and arrange the visit after their approval.

3. How do you protect the quality?
* As state owned enterprise with more than 100years history,we have strict operation policy,advanced processing machines to guarantee the precision ,workers with operation license,related components are from world famous brand,Series of test and inspection are done in the whole producing stage.

4. Will you dispatch technicians for installation and commissioning?
* Yes,we will upon required.

5. What is your advantage compared with your competitors?
* Quality and experience,We are top centrifuge supplier in China,our designs and structures are analogous to world leader brands.

6. Is your price competitive?
* My price is not the lowest in China ,but we promise,for the same quality and collocation,my price is the most favorable,for the same price,my quality is definately superior to other brands.

7. Do you have OEM service? do you sppply the parts?
* Yes,we do,as long as you provide us your drawing and detailed requirements.

8. Do you supply second hand equipments?
* No,we don't.

9. Do you have agents or service centre abroad?
* We have some partership in several countries as Indonesia,Brail,USA.

10. What payment mode you accept?
* TT and LC at sight



CE Metal Forced Circulation MVR Evaporation System For NaCl Crystalization 3
