Long Life Salt Centrifuge Machine / Two Phases Pusher Centrifuge Of Stainless Steel

Long Life Salt Centrifuge Machine / Two Phases Pusher Centrifuge Of Stainless Steel

  • High Light

    basket type centrifuge

    ,

    bag lifting centrifuge

  • Name
    Centrifuge Used For Nitrocotton Dewatering
  • Function
    Dewater Nitrocotton
  • Basket Diameter
    560/630mm
  • Stroke Of Pusher Mechanism
    40-108times/min
  • Operative Oil Pressure
    8Mpa
  • Machine Speed
    1900rpm
  • Output Capacity
    12-20t/hr
  • MOC
    SS304, SS316
  • Bearing
    SKF
  • Remained Moisture
    3-4%after Separation
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO9001&ISO14001,CE
  • Model Number
    PP
  • Minimum Order Quantity
    1
  • Packaging Details
    Exported Standard export packings
  • Delivery Time
    75 days
  • Payment Terms
    T/T
  • Supply Ability
    20 sets/month

Long Life Salt Centrifuge Machine / Two Phases Pusher Centrifuge Of Stainless Steel



2 Stage Pusher Centrifuge for Sea Salt Dewatering





Description



Model PP Sulzer Double Stage Salt Centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket. Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket .The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterwards, the cake is continuously discharged out of the basket. In case of high purity for the solid product, the effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.









Technical Parameters of PP Series



Model

Basket diameter

(mm)

Machine speed

(rpm)

Main motor

(kw)

Output

(t/h)

PP-40 290/360 2500 11-15 5-7
PP-50 438/500 2000 37-45 12
PP-60 560/630 1360 55 20









Features



1. It can be operated continuously and steadily,which capacity is great.

2. Because of its high separating factor, it can be dehydrated fully in the two drums.So the filter cake will contain less moist.

3. While there is a high demand to the purity of the products the centrifuge can wash them and drain out the washing liquid and the mother liquid separately.

4. Low and even consumption of the power.









Service



★ 12 months guarantee period from machine arriving date.
☆ Abundant spare parts in stock are available to provide.
★ Our technicians could be dispatched for overseas service.
☆ 7*24 hours technical consultation.
★ Your workers could get trained both in our factory and yours.
☆ Routine tracing till the machine work properly will be done timely.
★ We will remind you to do the normal maintenance.
☆ Your suggestions or any comments & reflection would be treated in priority.
★ Marketing team will visit you during our visit in your country if you require.









FAQ



1. How can we visit your factory?
* If you come from aborad,air to shanghai or nanjing airport,or if you arrive shanghai,you can take bullet trian
* If you come from domestic city,air or train directly to Nanjing Nan or WUXI east,we will pick you up both from airport or railway station
2. Can we visit your end user or contact them?
* Yes,we will provide you the name list,and arrange the visit after their approval.
3. How do you protect the quality?
* As state owned enterprise with more than 100years history,we have strict operation policy,advanced processing machines to guarantee the precision ,workers with operation license,related components are from world famous brand,Series of test and inspection are done in the whole producing stage.
4. Will you dispatch technicians for installation and commissioning?
* Yes,we will upon required.
5. What is your advantage compared with your competitors?
* Quality and experience,We are top centrifuge supplier in China,our designs and structures
are analogous to world leader brands.
6. Is your price competitive?
* My price is not the lowest in China ,but we promise,for the same quality and collocation,my price is the
most favorable,for the same price,my quality is definately superior to other brands
7. Do you have OEM service? do you sppply the parts?
* Yes,we do,as long as you provide us your drawing and detailed requirements
8. Do you supply second hand equipments?
* No,we don't.
9. Do you have agents or service centre abroad?
* We have some partership in several countries as Indonesia,Brail,USA.
10. What payment mode you accept?
* T/T and L/C at sight









Pictures

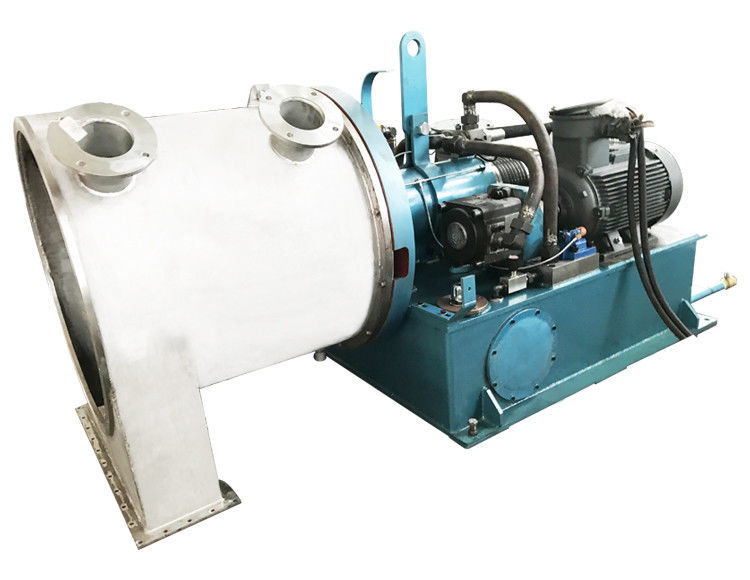

Long Life Salt Centrifuge Machine / Two Phases Pusher Centrifuge Of Stainless Steel 0Long Life Salt Centrifuge Machine / Two Phases Pusher Centrifuge Of Stainless Steel 1
