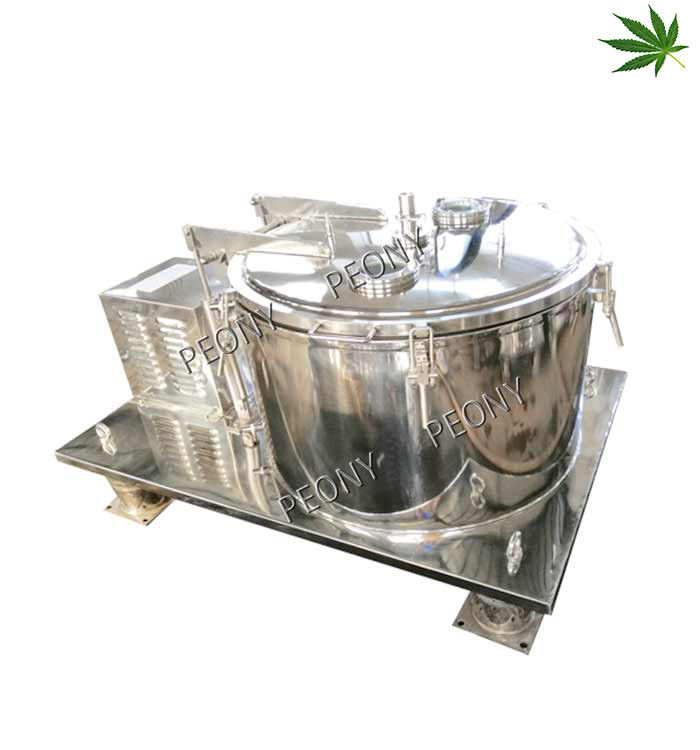

Top Discharge Basket Ethanol Extraction Centrifuge For Hemp Oil
Similar with Delta Top Discharge Centrifuge
for Hemp Oil and Ethanol Extraction
Brief Introduction
The PPTD centrifuge is top discharging, hermetic closure type equipment.
The material is fed into the drum through the feeding pipe on the hermetic closure casing; under the action of the centrifuge force field, the liquid-phase passes through the filter medium and the discharged out of the machine, while the solid-phase material is retained inside the drum and, after the machine is stopped, the material is discharged from the top.
The centrifuge has such features as smooth running, easy & convenient operation as well as conducting feeding, washing and dehydrating under the state of hermetic closure, etc.
Model PPTD flat-plate centrifuge has got rid of traditional hanging type of leg support and instead it adopts flat-plate counterweight and high-viscosity damping vibration reducer for absorbing vibration. The installation requires no foundation.
Working steps
1.System loading: A pre-loaded closed filter bag is placed into the basket
2.Program Menu: The 'Spray Wash' or 'Agitation Wash' program is selected on the HMI where the RPM and cycle times are set to the operator’s specifications.
3.Fill: Alcohol is connected from source tank into the centrifuge.
4.The Wash cycle: The plant material undergoes an agitated wash with a set number of bi-directional agitations
5.System Draining: When the wash cycle is complete, the outlet valve is manually opened and the liquid drained. The alcohol wash is pumped to a properly rated storage reservoir for further processing.
6.Spin Dry Cycle: The 'Spin Dry' menu is selected on the HMI and the drying cycle is started. The wet plant solids are spun dry of the remaining alcohol mixture within.
7.System Unloading: Upon completion of the 'Dry cycle', centrifuge is unloaded by taking the filter bag out from the basket.
8.Repeat Process.
Features
- 304 and 316L Sanitary Stainless Steel Construction
- Low temperature rating: -40c
- Reinforced Sight Glass
- Bi-Directional Agitation
- Auto/Manual Controls
- Digital HMI Interface
- Variable Speed Control
- Easy Material Loading/ Unloading
- Heavy-Duty Spin Drying
- No foundation required
- Direct Drum type, without curl inward
Specifications
| Model |
Capacity for dry ground plant(per batch) |
| PPTD-25 |
~8kgs |
| PPTD-50 |
~15kgs |
| PPTD-135 |
~30kgs |
| PPTD-200 |
~45kgs |
| PPTD-300 |
~60kgs |
Pictures
Packing&Delivery
Customer Photo
Why Choose Us
Competition
1.Quality and experience.We are top centrifuge supplier in China,our designs and structures are analogous to world leader brands.
2.My price is not the lowest in China ,but we promise,for the same quality and collocation,my price is the most favorable,for the same price,my quality is definately superior to other brands.
Service
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.
