Hemp Oil Industrial Centrifuge Equipment Low Temperature Extraction Machine

Hemp Oil Industrial Centrifuge Equipment Low Temperature Extraction Machine

  • High Light

    hemp extraction equipment

    ,

    virgin coconut oil centrifuge machine

  • Model
    PPTD
  • MOC
    SS304,316 As Option
  • Working
    Bi-Directional Agitation
  • Speed Control
    Inverter
  • Base
    Platform With Vibration Absorber
  • Grade
    GMP
  • Operation
    Batch
  • Advantage
    No-base Installation
  • Application
    Chemical, Pharmacy, Food, Light Industry
  • Control
    PLC
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO9001& ISO14001
  • Model Number
    PPTD
  • Minimum Order Quantity
    1
  • Packaging Details
    Standard wooden case
  • Delivery Time
    30-60days
  • Payment Terms
    TT,LC, Western Union
  • Supply Ability
    100sets per month

Hemp Oil Industrial Centrifuge Equipment Low Temperature Extraction Machine







Hemp Oil Industrial Centrifuge Equipment

Low Temperature Extraction Machine







 Product review



The PPTD centrifuge is top discharging, hermetic closure type equipment. The material is fed into the drum through the feeding pipe on the hermetic closure casing; under the action of the centrifuge force field, the liquid-phase passes through the filter medium and the discharged out of the machine, while the solid-phase material is retained inside the drum and, after the machine is stopped, the material is discharged from the top. The centrifuge has such features as smooth running, easy & convenient operation as well as conducting feeding, washing and dehydrating under the state of hermetic closure, etc.





 Features



304 and 316L Sanitary Stainless Steel Construction
Low temperature rating: -40c
Reinforced Sight Glass
Bi-Directional Agitation
Auto/Manual Controls
Digital HMI Interface
Variable Speed Control
Easy Material Loading/ Unloading
Heavy-Duty Spin Drying
No foundation required





Working steps



  • System loading: A pre-loaded closed filter bag is placed into the basket
  • Program Menu: The 'Spray Wash' or 'Agitation Wash' program is selected on the HMI where the RPM and cycle times are set to the operator’s specifications.
  • Fill: Alcohol is connected from source tank into the centrifuge.
  • The Wash cycle: The plant material undergoes an agitated wash with a set number of bi-directional agitations
  • System Draining: When the wash cycle is complete, the outlet valve is manually opened and the liquid drained. The alcohol wash is pumped to a properly rated storage reservoir for further processing.
  • Spin Dry Cycle: The 'Spin Dry' menu is selected on the HMI and the drying cycle is started. The wet plant solids are spun dry of the remaining alcohol mixture within.
  • System Unloading: Upon completion of the 'Dry cycle', centrifuge is unloaded by taking the filter bag out from the basket.
  • Repeat Process.





 Specifications



Model Basket

Power

(kw)

Weight

(kg)

Overallsize

(L*W*H)

(mm)

Capacity for dry hemp

(kgs)

Diameter (mm) Volume (L)

Capacity

(kg)

Speed (rpm) G-force
PPTD-50 600 40 50 1500 756 3



800



1300*880*900 ~15/batch





 Pictures

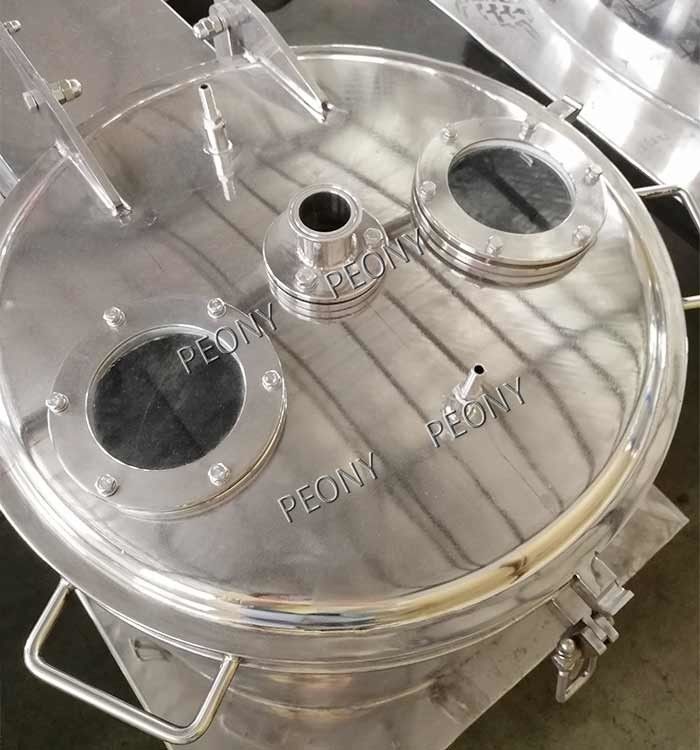

Hemp Oil Industrial Centrifuge Equipment Low Temperature Extraction Machine 0
