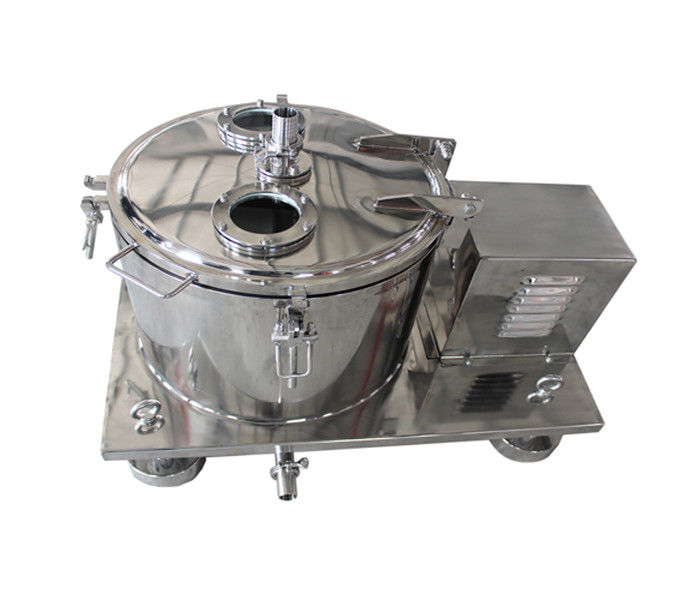

Basket Centrifuge Spin Drying Ethanol Biomass Oil Extraction Machine With Plant Material

Place of Origin:China
Brand Name:Peony
Certification:ISO
Model Number:PPTD-135
Minimum Order Quantity:1 set
Price:USD4800-30000/SET FOB SHANGHAI
Payment Terms:T/T, L/C, Western Union
Supply Ability:100 sets/month
Product Details
Highlight:

oil centrifuge machine

,

virgin coconut oil centrifuge machine
Discharge Type: Manual Top Discharge
Motor Power: 3-11kw
Wet Parts: SS316
Operation: Batch
Control Cabinet: With
Weight: 1200-2600 Kg
Product Name: Basket Centrifuge Spin Drying Ethanol Biomass Oil Extraction Machine With Plant Material
Warranty: 12 Months
Product Description



Basket Centrifuge Spin Drying Ethanol Biomass Oil Extraction Machine with plant material





Working steps:



1. System loading: A pre-loaded closed filter bag is placed into the basket.

2. Program Menu: The 'Spray Wash' or 'Agitation Wash' program is selected on the HMI where the RPM and cycle times are set to the operator’s specifications.

3. Fill: Alcohol is connected from the source tank to the centrifuge.

4. The Wash cycle: The plant material undergoes an agitated wash with a set number of bi-directional agitations

5. System Draining: When the wash cycle is complete, the outlet valve is manually opened and the liquid drained. The alcohol wash is pumped to a properly rated storage reservoir for further processing.

6. Spin Dry Cycle: The 'Spin Dry' menu is selected on the HMI and the drying cycle is started. The wet plant solids are spun dry of the remaining alcohol mixture within.

7. System Unloading: Upon completing the 'Dry cycle', the centrifuge is unloaded by removing the filter bag from the basket.

8. Repeat Process.



Basket Centrifuge Spin Drying Ethanol Biomass Oil Extraction Machine With Plant Material 0

Introduction:



Product Name
low-temperature ethanol extraction system
Material of contact
stainless steel 304
Capacity per batch
from 30pounds to 200pounds
centrifuge working temperature

till subzero 80degree
Brand
 Peony
operation mode
batch, semi-automatic









Specification:



Type

Drum

Power

(kW)

Diameter

(mm)

Volume

(L)

Capacity

(kg)

PPTD-10

300

5

10

1.1

PPTD-25

450

20

25

1.5

PPTD-50

600

40

50

3

PPTD-135

800

100

135

5.5

PPTD-135-NA

800

100

135

7.5

PPTD-200

1000

150

200

7.5

PPTD-200-NA

1000

150

200

11

PPTD-300

1200

250

300

11





Before leaving the factory:



Basket Centrifuge Spin Drying Ethanol Biomass Oil Extraction Machine With Plant Material 1





Our advantage:



1. Cold temperature operation

2. high recovery rate till 90%+

3. variable capacity from 30poundsd to 200pounds per batch

4. less labor needed

5. Low power consumption

6. small loss

7. Commissioning and training





Our service:



1. 12-month guarantee period from machine arrival date.

2. Abundant spare parts in stock are available to provide.

3. Our technicians could be dispatched for overseas service.

4. 7*24 hours technical consultation.

5. Your workers could get trained both in our factory and yours.

6. Routine tracing till the machine work properly will be done timely.

7. We will remind you to do the normal maintenance.

8. Your suggestions or any comments & reflections would be prioritized.

9. Marketing team will visit you during our visit to your country if you require it.



Packaging:



Basket Centrifuge Spin Drying Ethanol Biomass Oil Extraction Machine With Plant Material 2

The PPTD series is only used for wet materials.

In addition, the BB series is used for dry materials.
