Quality Large Capacity Chemical Centrifuge Continuous Pusher Centrifuge For Sodium Chlorate Dewatering factory

Large Capacity Chemical Centrifuge Continuous Pusher Centrifuge For Sodium Chlorate Dewatering

Place of Origin:China

Brand Name:Peony

Certification:ISO,CE

Model Number:PP

Minimum Order Quantity:1

Payment Terms:T/T, L/C

Supply Ability:20 sets/month

Product Details

Highlight:

disk stack centrifuge

solid bowl centrifuges

Application: Sea Salt, Mineral Salt, Copper Sulphate Dehydration

Sieve Slot: Customerized

MOC: SS304,SS316,DUPLEX SS

Control: PLC

Design: SUZLER

Operation: Continuous

Temperature Allowed: Below 105degree

Discharge: Pushing Type

Electrical Elements: Famous Brand

Humidity In The Cake: Humidity In The Cake

Certification: ISO,CE,ISO9001,SGS

Condition: New

Voltage: Customized

Power(W): Depend On The Model

Warranty: 12 Months

After-Sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,commissioning And Training,Video Technical Support

Type: Centrifuge

Product Type: Cosmetic,Chemical & Pharmaceutical,separation

Material: Stainless Steel,SS316

Name: Chemical Centrifuge

Machine Type: Centrifugal Solid- Liquid Separator

Moc: SS304,Stainless Steel,SS316

Product Description

Description

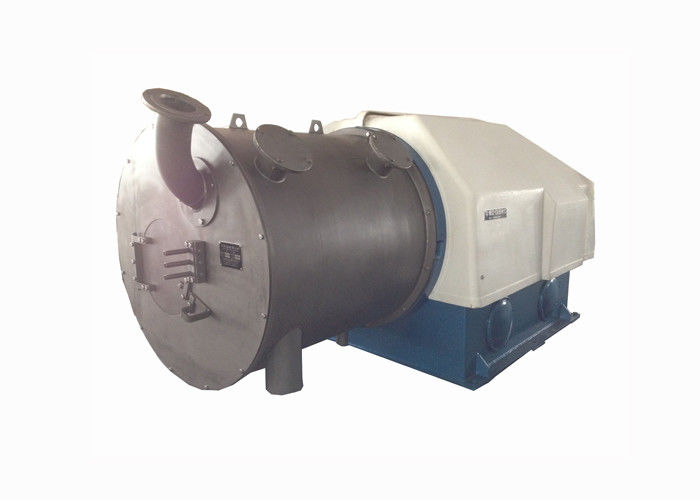

PP series Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket.

Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket.

Large Capacity Chemical Centrifuge Continuous Pusher Centrifuge For Sodium Chlorate Dewatering 0

The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed.

Afterwards, the cake is continuously discharged out of the basket. In case of high purity for the solid product, the effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.

It is suitable for the material with solid content 40-60%,particle size larger than 0.15mm,widely used in the mineral salt ,sea salt and chemical field as CuSO4.5H2O,etc.

Advantages
1.Big capacity with full automatic operation
2.Low moisture in the cake after separation
3.Robster material to resit the corrosion,DSS material will be used as optional
4.SKF bearing and strong collocation ,with over than 15years working life
5.CE certificate

Technical parameters

Model	PP-40	PP-50	PP-60
Basket diameter (mm)	290/360	438/500	560/630
Stroke of pusher mechanism (times/min)	40-80	40-80	70-80
Machine speed (rpm)	2500	2000	1360
Operative oil pressure (Mpa)	2.5	2	8
Motor of oil pump (kw)	5.5-7.5	22	13-30
Main motor (kw)	11-15	37-45	55
Output (t/h)	5-7	12	20
Sieve slot	To be decided
Operation temp. (°C)	Below 105	Below 105	Below 105
Overall dimension (mm)	234610901006	366014202078	312717001955
Weight (kg)	2600	4400	4860

Pictures on site
Large Capacity Chemical Centrifuge Continuous Pusher Centrifuge For Sodium Chlorate Dewatering 1
