Chemical Continuous Salt Centrifuge Pusher Centrifuge For Citric Acid

Chemical Continuous Salt Centrifuge Pusher Centrifuge For Citric Acid

    • Chemical Continuous Salt Centrifuge Pusher Centrifuge For Citric Acid
  • Chemical Continuous Salt Centrifuge Pusher Centrifuge For Citric Acid

    Product Details:

    Place of Origin: China
    Brand Name: Peony
    Certification: ISO9001&ISO14001,CE
    Model Number: PP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Standard export packings
    Delivery Time: 90 days
    Payment Terms: T/T
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description
    Machine: Pusher Centrifuge For Citric Acid MOC: SS304, SS316, DUPLEX SS As Option
    Separation Effection: Moisture In The Cake Less Than 4% Advanced Technology: Sulzer ESCHER WYSS
    Working Condition: Granule Size Greater Than 0.15mm Operation: Continuous
    Type: Horizontal Brand Name: Peony
    Motor Defends Degree: IP54/F1 Bearing: SKF
    High Light:

    disk stack centrifuge

    ,

    sludge dewatering centrifuge

    Chemical Continuous Salt Centrifuge Pusher Centrifuge For Citric Acid



    Description



    PP series Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket.



    Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket .



    The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterwards, the cake is continuously discharged out of the basket.



    In case of high purity for the solid product, the effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.




    Typical Processing Products:


    chemicals: glaubers salt,salt, boric acid, ascorbic acid, adipic acid, sodium chloride, iron sulphate, sodium sulphate, copper sulphate, sodium bichromate.
    fertilisers: ammonium sulphate, potash, urea, calcium nitrate, potassium sulphate.
    food stuff animal feeds: extraction residues, meat pulp.
    benefication: rock phosphate, gypsum, ores, coal.
    Special designs, e.g. gas tight pusher centrifuge, explosion proof, etc.



    Specification



    Model

    PP-40

    PP-50

    PP-60

    PP-85 PP-100

    Basket diameter (mm)

    290/360

    438/500

    560/630

    738/820 920/1000

    Stroke of pusher mechanism

    (times/min)

    40-80

    40-80

    70-80

    30-108 30-80

    Machine speed (rpm)

    2500

    2000

    1360

    1500 1300

    Operative oil pressure (Mpa)

    2.5

    2

    8

    8 12

    Motor of oil pump (kw)

    5.5-7.5

    22

    13-30

    22-45 30-90

    Main motor (kw)

    11-15

    37-45

    55

    45-100 55-132

    Output (t/h)

    5-7

    12

    20

    25-65 30-75

    Sieve slot

    To be decided

    Operation temp. (°C)

    Below 105

    Below 105

    Below 105

    Below 105 Below 105

    Overall dimension (mm)

    2346*1090*1006

    3660*1420*2078

    3127*1700*1955

    3990*2000*1530 4200*2400*2200

    Weight (kg)

    2600

    4400

    4860

    6250 8900

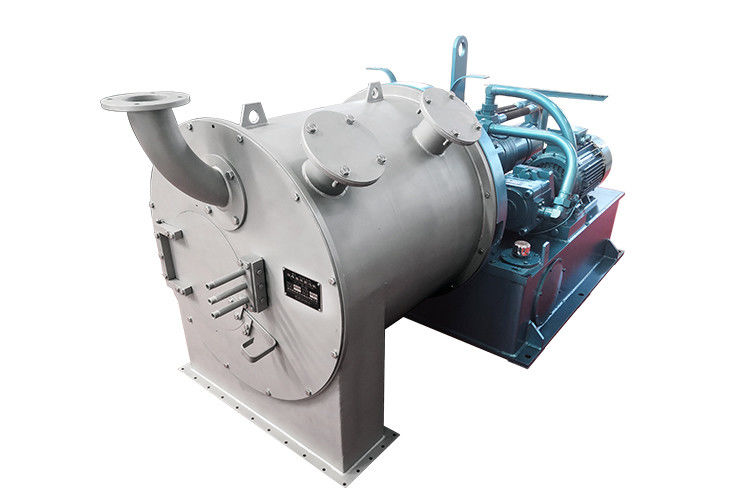

    Reference pictures


    Chemical Continuous Salt Centrifuge Pusher Centrifuge For Citric Acid 0Chemical Continuous Salt Centrifuge Pusher Centrifuge For Citric Acid 1


    Guarantee


    Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time. We are committed to reward you with a better quality in return for our interest in and faith toward. We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
