High Performance Continuous Large Capacity Basket Centrifuge For Monohydrate Sodium Carbonate

High Performance Continuous Large Capacity Basket Centrifuge For Monohydrate Sodium Carbonate

    • High Performance Continuous Large Capacity Basket Centrifuge For Monohydrate Sodium Carbonate
    • High Performance Continuous Large Capacity Basket Centrifuge For Monohydrate Sodium Carbonate
    • High Performance Continuous Large Capacity Basket Centrifuge For Monohydrate Sodium Carbonate
    • High Performance Continuous Large Capacity Basket Centrifuge For Monohydrate Sodium Carbonate
  • High Performance Continuous Large Capacity Basket Centrifuge For Monohydrate Sodium Carbonate

    Product Details:

    Place of Origin: China
    Brand Name: Peony
    Certification: ISO9001&ISO14001,CE
    Model Number: PP-40

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Standard export packings
    Delivery Time: 90 days
    Payment Terms: T/T
    Supply Ability: 20 sets/month
    Contact Now
    Detailed Product Description
    Product Name: 2 Stage Pusher Centrifuge Application: Centrifuge For Monohydrate Sodium Carbonate Dewatering
    Basket Diameter: 290/360 Mm Basket Rotate Speed (Max): 2500r/min
    Stroke Of Pusher Mechanism: 40-80times/min Separation Factor: 586-728
    High Light:

    basket type centrifuge

    ,

    perforated basket centrifuge

    High Performance Automatic Continuous Large Capacity Basket Centrifuge For Monohydrate Sodium Carbonate



    Description

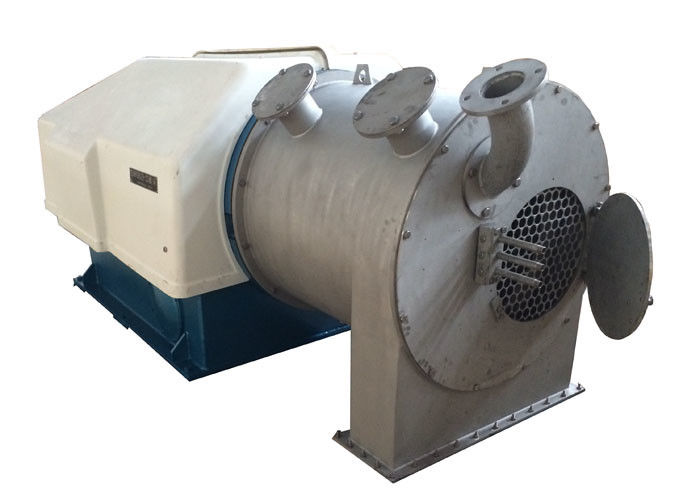

    Model PP Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket. Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket .The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterwards, the cake is continuously discharged out of the basket. In case of high purity for the solid product, the effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.



    Technical parameters of PP-50



    Equipments

    2 stage pusher centrifuge

    Spec.

    PP-50

    Qty

    set

    Technical parameters



    1

    Basket diameter

      438/500 mm

    2

    Basket Rotate Speed (Max)

    2000rpm

    3

    Stroke of Pusher Mechanism

    40-80times/min(can be adjust)

    4

    First, second stage mesh aperture (as per the material)

    mm ,mm

    5

    Separation Factor

    1119

    6

    Main motor



    Spec/Power

    45KW

    Installation type

    Horizontal

    Protection class

    IP54/F1

    Electrical power

    3 phase 380V/50Hz AC

    7

    Oil pump motor



    Spec/Power

    22KW

    Installation type

    Horizontal

    Protection class

    IP54/F1

    Electrical power

    3 phase 380V/50Hz AC

    8

    Oil pump

    Spec.

    SNE/A280

    outflow

    480ml/turn

    Maximum pressure

    2Mpa

    9

    Overall size

    3660mm×1420mm×2078mm

    10

    Weight

    4400kg

    11

    Shell type

    open/seal(can be selet)

    12

    Output

    ≥12T/h(sea salt)

    13

    Moisture content after separation:

    4%(sea salt)





    Technical parameters of PP-60



    Equipment

    2 stage pusher centrifuge

    Spec.

    PP-60

    Qty

    set

    Technical parameters

    1

    Basket diameter

      560/630 mm

    2

    Basket Rotate Speed (Max)

    1360 r/min

    3

    Stroke of Pusher Mechanism

    70-80 times/min

    4

    First, second stage mesh aperture (as per the material)

    mm, mm

    5

    G-force

    570-642

    6

    Main motor



    Spec/Power

    55KW

    Installation type

    Horizontal

    Protection class

    IP54/F1

    Electrical power

    3 phase 380V/50Hz AC

    7

    Oil pump motor



    Spec/Power

    30KW

    Installation type

    Horizontal

    Protection class

    IP54/F1

    Electrical power

    3 phase 380V/50Hz AC

    8

    Oil pump

    Spec.

    NB5D140F

    outflow

    140ml/turn

    Maximum pressure

    8Mpa

    9

    Overall size

    3127mm × 1700mm × 1955mm

    10

    Weight

    4860kg

    11

    Shell type

    open

    12

    Output

    ≥15T/h (Mineral salt)

    13

    Moisture content after separation:

    ≤3%





    More pictures

    High Performance Continuous Large Capacity Basket Centrifuge For Monohydrate Sodium Carbonate 0

    High Performance Continuous Large Capacity Basket Centrifuge For Monohydrate Sodium Carbonate 1



    Guarantee:



    Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
    We are committed to reward you with a better quality in return for our interest in and faith toward.
    We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
