Skid Mounted Separator Centrifuge Disc Stack Centrifuge Lube Oil Separator

Skid mounted separator - centrifuge disc fuel oil handling unit





Description



Model PDSD disc fuel oil handling separator is mainly used to remove water and mechanical impurities from diesel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machine, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.



Skid Mounted Separator Centrifuge  Disc Stack Centrifuge Lube Oil Separator 0



The machine is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for long time with low vibration, safety and security.



The design, product and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.





Condition for separation and actual capacity (refer to the chart)



Oil types Light diesel oil Lubrication oil
SAE30,40 Detergence oil Steam turbine oil

Kinematical viscosity

(mm2/s)

13 20.5 36.2 80 100-200 61.2-74.8
50C 40C 40C
Density (kg/m3) (20C) <900 900-991 880-900 <900
Separating temp. (C) 40 60 80 80-95

Recommended capacity

(L/h)

900-5000 300-4500



Oil types Fuel oil
Diesel oil Heavy fuel oil

Kinematical viscosity

(mm2/s)

1.9-5.5 5.5-24 120 180 380
40C 50C
Density (kg/m3) (20C) <900 900-991
Separating temp. (C) Normal temperature, 40-60C best 90-8

Recommended capacity

(L/h)

From 650L/h to 5000L/h depends on different oil and working temperature.







Advantages



1. High efficiency

2. Low oil consumption

3. Convenient operation

4. Economic maintenance cost



Skid Mounted Separator Centrifuge  Disc Stack Centrifuge Lube Oil Separator 1

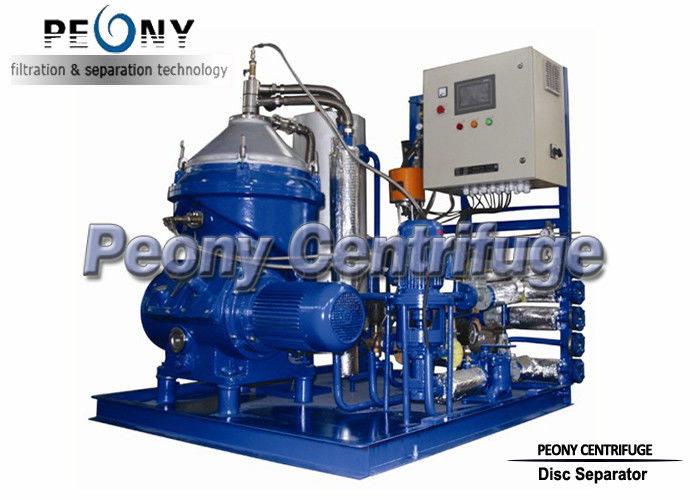

The whole unit consists of:


1. Separator
2. Electric control box
3. Oil feed pump
4. Oil filter

5. Heater (optional, steam / conduction oil / electric type available)
6. Instruments
7. Sludge pump
8. Skid



Skid Mounted Separator Centrifuge  Disc Stack Centrifuge Lube Oil Separator 2

Skid Mounted Separator Centrifuge  Disc Stack Centrifuge Lube Oil Separator 3

Skid Mounted Separator Centrifuge  Disc Stack Centrifuge Lube Oil Separator 4





Value Analysis



1. According to the requirements of each classification society, all modules are equipped with oil leak alarm and high temperature alarm.
2. Oil.hydraulic,pneumatic control part adopts the Brand Baode (Germany).

3. Heater adopts brand SWEP (Germany).

4. Pressure control adopts Korean products or products

5.  Screw pump is used instead of gear pump.

6. All equipped with automatic temperature control device (Made by the RTK production in Germany or made in China)
7. The main electrical components of standard electrical control box are produced by Schneider company while PLC is produced by Siemens or Mitsubishi.
8. The complete sets referred above are all Peony's production of automatic Standard Controls and we certainly can modify the configuration list according to customers’ specified requirements.



Skid Mounted Separator Centrifuge  Disc Stack Centrifuge Lube Oil Separator 5





Guarantee



Peony has advantages in price, service and quality. We have Military Product Quality System Certification, CE certificate, Quality System Certification, many professional equipments and advanced designs.
