DDGS Dewatering Centrifuge
,Efficient Separation Dewatering Centrifuge
,High Rotational Speed Industrial Decanter Centrifuge

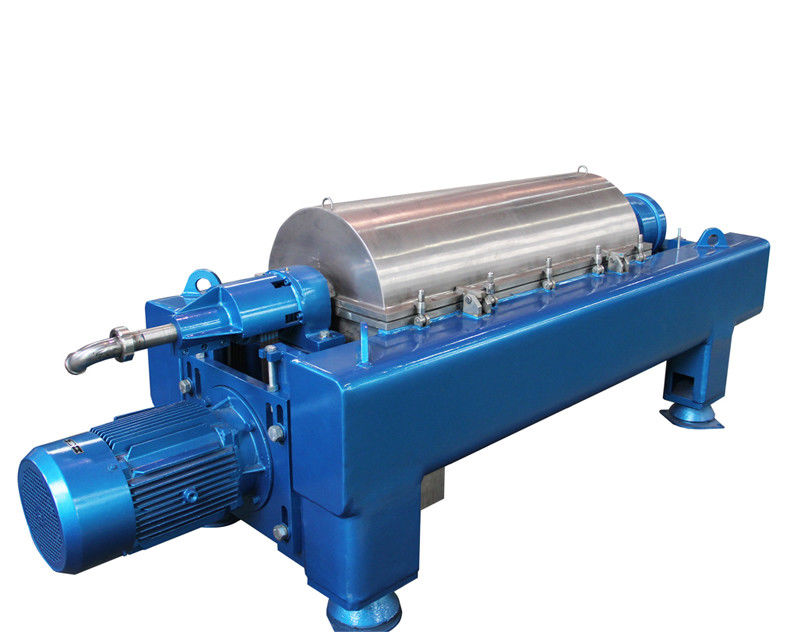

The Industrial Decanter Centrifuge for Slurry Concentration Before Drying is designed to increase solid concentration and reduce free water content before thermal drying processes.
By mechanically removing excess liquid before drying, the decanter centrifuge helps reduce dryer load, improve material handling, and lower overall energy consumption.
- Mineral slurry concentration before drying
- Chemical slurry drying preparation
- Battery material slurry concentration
- Ceramic and powder material processing
- Biomass slurry concentration
- Food processing residue thickening
- Industrial waste residue drying preparation
- Filter cake moisture reduction
High Fiber Content
Fruit materials often contain fiber, pulp, and suspended solids that affect juice clarity.
Product Loss
Traditional separation methods may cause juice loss during pulp and residue handling.
Continuous Production Requirements
Industrial juice plants require stable and continuous processing.
Product Quality Control
Efficient separation is needed to maintain consistent juice quality and reduce suspended solids.
Slurry Concentration Solution
Wet Slurry
→ Feed Conditioning System
→ Industrial Decanter Centrifuge
→ Concentrated Solids + Separated Liquid
Concentrated Solids → Dryer System → Final Product
Separated Liquid → Recycling / Further Treatment
Peony Can Provide
- Slurry concentration evaluation
- Decanter centrifuge selection
- Pre-drying dewatering solution
- High-solids separation configuration
- Wear-resistant scroll protection
- Customized material selection
- Continuous solid discharge system
- PLC automatic control system
- Integration with dryer systems
How the Decanter Centrifuge Works
1. Slurry Feeding
Wet slurry enters the rotating bowl through a controlled feeding system.
2. Solid Concentration
Under centrifugal force, solid particles move toward the bowl wall and form a concentrated solids layer.
3. Liquid Clarification
Separated liquid remains in the inner liquid zone and moves toward the clarified liquid area.
4. Solids Conveying
The scroll continuously transports concentrated solids toward the conical discharge end.
5. Separate Discharge
Concentrated solids and separated liquid are continuously discharged for further processing.
| Model | Diameter (mm) | Length (mm) | Length-to-diameter rate | G force | Max solid discharge (m³/h) | Weight (kg) | Dimension (L*W*H) (mm) |
|---|---|---|---|---|---|---|---|
| PDC-10 | 250 | 1000 | 4 | 4080 | 0.4 | 1000 | 2410*800*1080 |
| PDC-12 | 4200 | 1350 | 4 | 3500 | 0.6 | 1200 | 2610*800*1080 |
| PDC-12 | 4200 | 1350 | 4.5 | 3180 | 1.2 | 1800 | 3495*840*1180 |
| PDC-18 | 4000 | 1600 | 4.5 | 3180 | 1.2 | 3200 | 3497*1020*1385 |
| PDC-18 | 450 | 2150 | 4 | 2500 | 2 | 3800 | 4447*1080*1385 |
| PDC-20 | 400 | 2250 | 4.5 | 2500 | 3.5 | 4000 | 4580*1140*1470 |
| PDC-21 | 530 | 2280 | 4.3 | 2500 | 5 | 5000 | 4924*1170*1540 |
| PDC-26 | 655 | 2800 | 4.3 | 2270 | 8 | 7000 | 4300*1900*1350 |
Main Advantages
Reduced Dryer Load
Mechanical dewatering removes free water before drying and reduces evaporation requirements.
Lower Energy Consumption
Less water entering the dryer reduces thermal energy demand.
Improved Dryer Stability
Higher solids concentration provides more stable dryer feeding conditions.
Continuous Processing
The decanter centrifuge enables continuous feeding, separation, and solids discharge.
Flexible Industrial Configuration
Wear protection, materials, and operating parameters can be customized according to slurry characteristics.
Please provide:
- Material type
- Feed solids concentration
- Particle size distribution
- Flow rate
- Solid and liquid density
- Slurry viscosity
- Target solids concentration
- Dryer type and capacity
- Temperature conditions
- Wear and corrosion requirements
Why concentrate slurry before drying?
Pre-concentration removes free water mechanically, reducing the amount of water that must be evaporated during drying.
Can a decanter centrifuge reduce drying costs?
Yes. Higher solid concentration generally reduces dryer energy consumption and improves drying efficiency.
What materials can be concentrated before drying?
It can process mineral slurry, chemical slurry, biomass residue, battery materials, and industrial waste streams.
Can it operate continuously with dryers?
Yes. The decanter centrifuge provides continuous separation and can be integrated with industrial drying systems.
How does it improve dryer performance?
More concentrated solids provide stable feed conditions and reduce fluctuations in dryer operation.
Peony welcomes cooperation with industrial plants, dryer suppliers, EPC contractors, engineering companies, and global partners.
We are also seeking qualified agents and local partners for industrial centrifuge solutions.
Contact us with your material characteristics and drying requirements to explore long-term cooperation opportunities.
