Customized Basket Centrifuge Pushing Type SS304 Continuous Automatic

Product Details

Place of Origin: China

Brand Name: Peony

Certification: CE

Model Number: HR

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: 35800

Packaging Details: Wooden packing

Delivery Time: 60-90 days after down payment

Payment Terms: T/T D/A D/P L/C

Supply Ability: 5 sets/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Customized Basket Centrifuge, Continuous Automatic Pusher Centrifuge Machine, SS304 Pusher Centrifuge Machine


Material:	SS304,SS316,DUPLEX SS As Option	Discharge:	Pushing Type
Size:	Customerized	Operation:	Continuous Automatic
Application:	Sea Salt, Mineral Salt	Control System:	PLC
Warranty:	1 Year	Temperature Allowed:	Below 105℃

Material:	SS304,SS316,DUPLEX SS As Option
Discharge:	Pushing Type
Size:	Customerized
Operation:	Continuous Automatic
Application:	Sea Salt, Mineral Salt
Control System:	PLC
Warranty:	1 Year
Temperature Allowed:	Below 105℃

Description

Customized Basket Centrifuge Pushing Type SS304 Continuous Automatic

Product Description:

Basket Centrifuge is a continuous automatic pusher centrifuge specifically designed for the salt and sugar processing industries. It is made of a robust stainless steel construction in SS304, SS316 and Duplex SS, depending on customer requirements. The centrifuge is equipped with a PLC control system that makes operations more efficient and reliable. It has a pushing type of discharge, offering an easy and safe operation. It comes with a 1-year warranty, guaranteeing its quality and performance.

This pusher centrifuge for salt and sugar processing is especially designed to handle large volumes of materials for salt and sugar processing. It is highly efficient and reliable, with its robust construction and PLC control system. It is ideal for industrial applications, offering a safe and precise operation for a wide range of materials. This centrifuge is a great choice for salt and sugar processing, with its reliable performance and reliable warranty.

Product Overviews

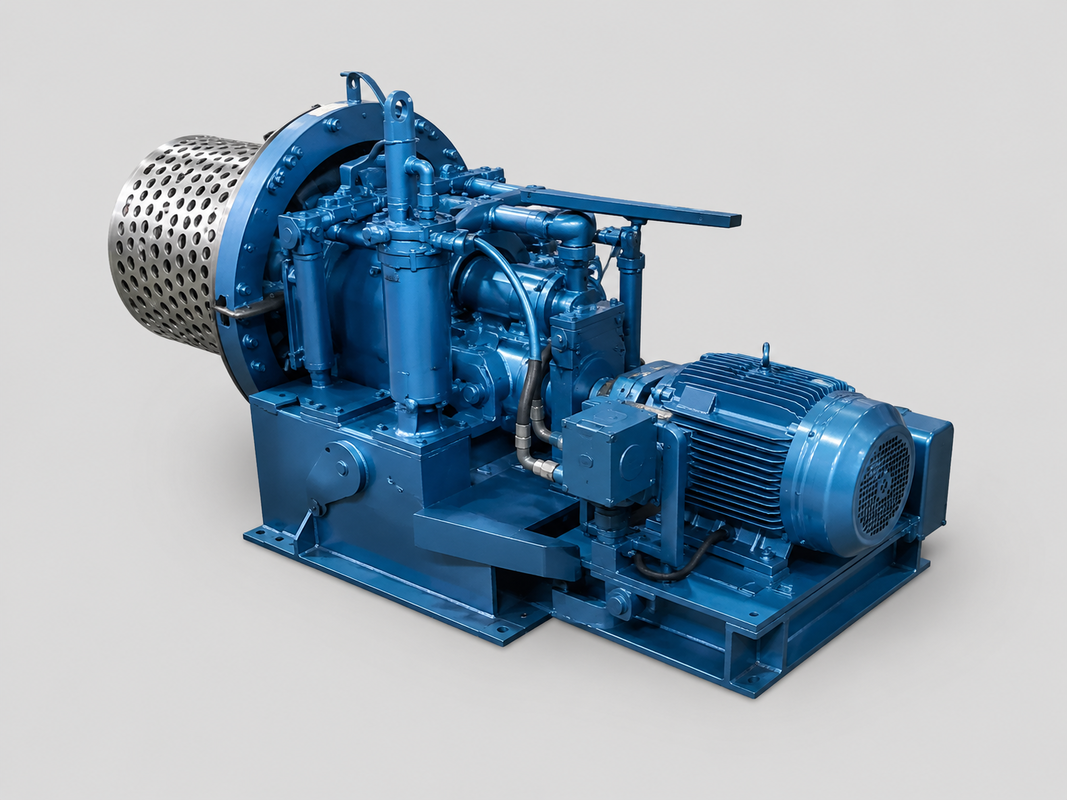

PP Series Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, both continuous and effective.

The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage

basket. Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine.

Customized Basket Centrifuge Pushing Type SS304 Continuous Automatic 0

The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket.

The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the

desired humidity of the cake can be guaranteed. Afterwards, the cake is continuously discharged out of the basket. In case

of high purity for the solid product, the effective washing can be carried out in the centrifuge.

If necessary, the washing agent and the mother-liquor can be discharged separately.

Customized Basket Centrifuge Pushing Type SS304 Continuous Automatic 1

Technical parameter

Model	Basket diameter (mm)	Stroke (times/min)	Speed (rpm)	Pressure (Mpa)	Pump motor (kw)	Main motor (kw)	Output (t/h)	Weight (kg)	Overall dimension (mm)
PP-40	290/360	40-80	2500	2.5	5.5-7.5	11-15	5-7	2600	2346×1090×1006
PP-50	438/500	40-80	2000	2	22	37-45	12	4400	3600×1420×2078
PP-60	560/630	70-80	1360	8	13-30	55	20	4860	3127×1700×1955

Pictures

Customized Basket Centrifuge Pushing Type SS304 Continuous Automatic 2

Details

Customized Basket Centrifuge Pushing Type SS304 Continuous Automatic 3

Pictures in spot

Customized Basket Centrifuge Pushing Type SS304 Continuous Automatic 4

Packaging

Customized Basket Centrifuge Pushing Type SS304 Continuous Automatic 5

Our Services

Customized Basket Centrifuge Pushing Type SS304 Continuous Automatic 6

FAQ:

Q: What is the brand name of the Basket Centrifuge?
A: The brand name of the Basket Centrifuge is Peony.
Q: What is the model number of the Basket Centrifuge?
A: The model number of the Basket Centrifuge is HR.
Q: Where is the Basket Centrifuge made?
A: The Basket Centrifuge is made in China.
Q: What certifications does the Basket Centrifuge have?
A: The Basket Centrifuge has the CE certification.
Q: What is the minimum order quantity of the Basket Centrifuge?
A: The minimum order quantity of the Basket Centrifuge is 1 set.
