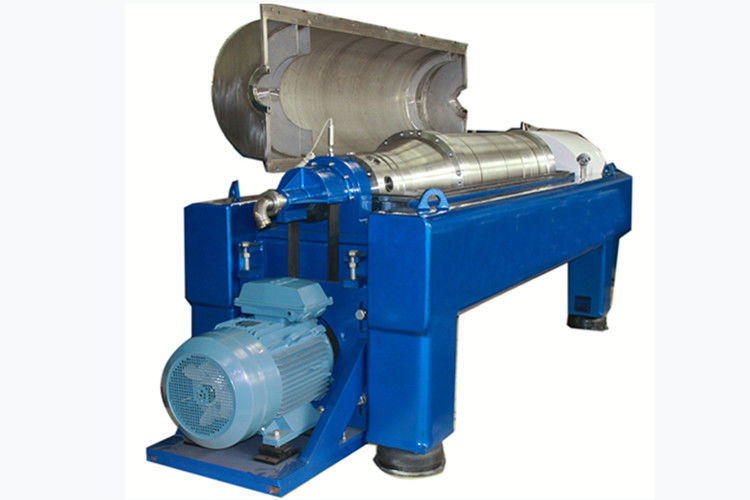

Horizontal Continuous Screw Conveyor Sedimentation Centrifuge SUS316L

Horizontal Continuous screw conveyor sedimantation centrifuge

Introduction

Sedimentation centrifuge is a horizontal, continuously working and continuously spiral discharging sedimentation centrifuge. It is used in a variety of industries for separating all kinds of solid-liquid suspension, defecating liquid phase with graded grains, and dehydrating sludge such as polyoxyethylene, sulfurous acid, tansuanbei, strontium sulfate, lidefen, titanium, pigment,ore, porcelain, clay, kaoline, diatomite, amylum, soyaabean protein, earthnut protein, syrup, beverage, vegetable oil, citric acid, scavenge oil purification, cleasing water purification..

Working principle

The machine starts and speeds up automatically. When the proper working condition are met and the revolving drum reaches the feeding speed,the feeding valve opens and allows suspension which will be separated to enter into the product compartment of the spiral feeder through the feeding pipe. After the preliminary speed-up,the suspension passes the outlet of compartment and into the drum.Because of centrifugal force, the suspension in the drum is quickly divided into two phases;the heavier solid phase deposits to the inner wall of the drum and driven by the differential gear which results in the non-cynchronous movement between the spiral feeder and the drum,the solid phase will be transferred into the small end for further dehydration and finally discharged through solid phase outlet.

Main characteristics

1. Continuous working, spiral discharging,high capacity.

2. Controlled by two motors, rovolving drum can be adjustable two-stage separately.

3. Wide applicability for chemical, oil, foodstuff, pharmacy industries and green industry in which solid-liquid separation is required.

4. Suitable for various products,capable for separating wide-ranging solid phase grains(0.002-2mm),especially when separating solid phase has different size grains.

Specifications

Drawing

Competitive Advantages

• 3 phase liquid-liquid-solid separation
• For different purposes
• Outstanding separation effect
• Wide usage in the fish oil and fishmeal field
• Corrosion-resistant an resistant key parts
• Flexible length-to-diameter ratio
• Famous and reliable electrical components


Our services

1. 12 months guarantee period from machine arriving date.

2. Abundant spare parts in stock are available to provide.

3. Our technicians could be dispatched for overseas service.

4. 7*24 hours technical consultation.

5. Your workers could get trained both in our factory and yours.

6. Routine tracing till the machine work properly will be done timely.

7. We will remind you to do the normal maintenance.

8. Your suggestions or any comments & reflection would be treated in priority.

9. Marketing team will visit you during our visit in your country if you require.

Guarantee

Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.We are committed to reward you with a better quality in return for our interest in and faith toward.We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
