Industrial Scale Salt Processing Chemical Centrifuge Duplex Steel 2205 Body

Industrial Scale Salt Processing Chemical Centrifuge Duplex Steel 2205 Body

Industrial Scale Salt Processing Chemical Centrifuge Duplex Steel 2205 Body
Industrial Scale Salt Processing Chemical Centrifuge Duplex Steel 2205 Body
Industrial Scale Salt Processing Chemical Centrifuge Duplex Steel 2205 Body
Product Details:
Place of Origin: China
Brand Name: Peony
Certification: ISO
Model Number: PP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD9800~120000/SET FOB SHANGHAI
Packaging Details: Standard export packings
Delivery Time: 60-90 days after down payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Application: Salt Slurry Dewatering Operation: Continuous Running
Technique: Ferrum Output Capacity: 1T/h~75T/H
MOC: SS316L, DSS2205, Titanium Etc. Bearing: SKF Or Other Famous Brand
Control Box: With Product Name: Industrial Scale Salt Processing Centrifuge Machine With Duplex Steel 2205
High Light:

Duplex 2205 Chemical Centrifuge

,

salt dewatering Chemical Centrifuge

,

Duplex Steel salt dewatering Centrifuge

Industrial Scale Salt Processing Centrifuge Machine With Duplex Steel 2205





Description



Two-stage pistons pushing centrifuge is a kind of automatic continuous filtering centrifuge with continuous feeding and pulse discharging and procedures such as feeding, separating, filter cake washing, dehydrating and discharging, etc will be operated under full speed. With advantages such as continuous automatic operation, low labor strength and cost, and high capacity, this kind of centrifuge is widely used for solid and liquid separation in many areas.

Two-stage pistons pushing centrifuge is usually used for the separation of even slurry with middle size solid(>0.1mm) and high concentration(>30%). The larger the crystal size and the higher the solid content, the higher the capacity and the better the separation effect.





Features



1) The reversing of the compound cylinder has the advantages of compact structure and high reliability.

2) The number of pushing materials is adjustable.

3) The rotating drum and the push rod are connected reliably and not easy to fall off.

4) The hydraulic oil seal is reliable.

5) The quality of core components is stable and reliable.

6) High precision and interchangeability of parts.

7) The centrifuge can run at full load continuously for a long time.





Standards



No Code Standard
1 GB / T 191 Pictorial markings for the handling of packages
2 GB/T 699 Quality carbon structural steel
3 GB/T 711 High-quality carbon structural steel hot rolled wide thick steel plate and steel belt
4 GB /T 912 Carbon structural steel and low alloy steel hot rolled steel sheet and strip
5 GB /T 2100 General-purpose corrosion-resistant steel
6 GB /T 3077 Alloy structural steel technical conditions
7 GB /T 3274 Carbon structural steel and low alloy steel hot-rolled thick steel plate and steel belt
8 GB/T 3280 Cold rolled stainless steel plates
9 GB /T 4237 Stainless steel hot rolled steel plate
10 GB/T 4334.1~6 Stainless steel corrosion test method
11 GB/T 6388 Transport package shipping mark
12 GB/T 7779 The model designation of centrifuges
13 GB/T 9439 Grey cast iron
14 GB/T 10901 Property test of centrifuge
15 GB /T11352 General engineering carbon steel casting
16 GB/T 13306 Nameplate
17 GB/T 13384 Mechanical and electronic products packaging general technical conditions
18 JB 4726 Pressure vessel with carbon steel and low alloy steel forgings
19 JB 4728 Pressure vessels used stainless steel forgings
20 JB4744 The mechanical properties of steel pressure vessel product welding test plate check
21 JB/T 6418 Clearance inspection method for separator
22 JB/T 7217 General painting technology for separator
23 JB 8525 Safety requirements of centrifuge
24 JB/T 8865 Filter net of pistons pushing centrifuge
25 JB/T 9095 Centrifuge separator forge and welding no damage inspection technology standard
26 JB/T 10411 Ultrasonic testing, and quality rating for austenitic steel forgings of centrifuges and separators






Technical parameters



Model PP-25 PP-40 PP-50 PP-60 PP-85 PP-100
Basket diameter (mm) 200/251 290/360 438/500 560/630 738/820 920/1000

Stroke of the pusher mechanism

(times/min)

35-52 40-80 40-80 70-80 30-108 30-80
Machine speed (rpm) 3000 2500 2000 1360 1500 1300
Operative oil pressure (Mpa) 2.5 2.5 2 8 8 12
The motor of the oil pump (kW) 4 5.5-7.5 22 13-30 22-45 30-90
Main motor (kW) 7.5 11-15 37-45 55 45-100 55-132
Output (t/h) ~1.5 5-7 12 20 25-65 30-75
Sieve slot To be decided
Operation temp. (°C) Below 105 Below 105 Below 105 Below 105 Below 105 Below 105
Overall dimension (mm) 2155*1320*950 2346*1090*1006 3660*1420*2078 3127*1700*1955 3990*2000*1530 4200*2400*2200
Weight (kg) 1275 2600 4400 4860 6250 8900





More pictures

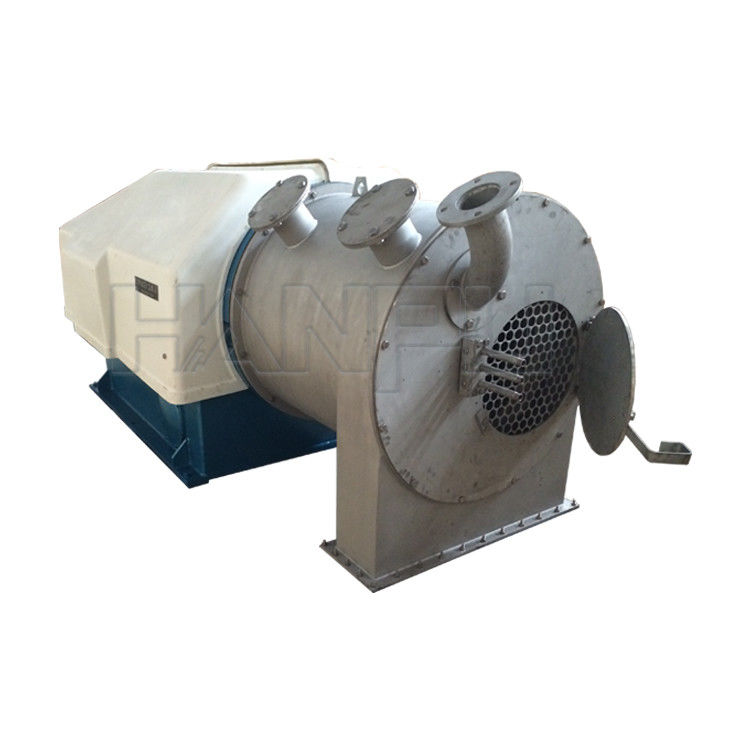

Industrial Scale Salt Processing Chemical Centrifuge Duplex Steel 2205 Body 0

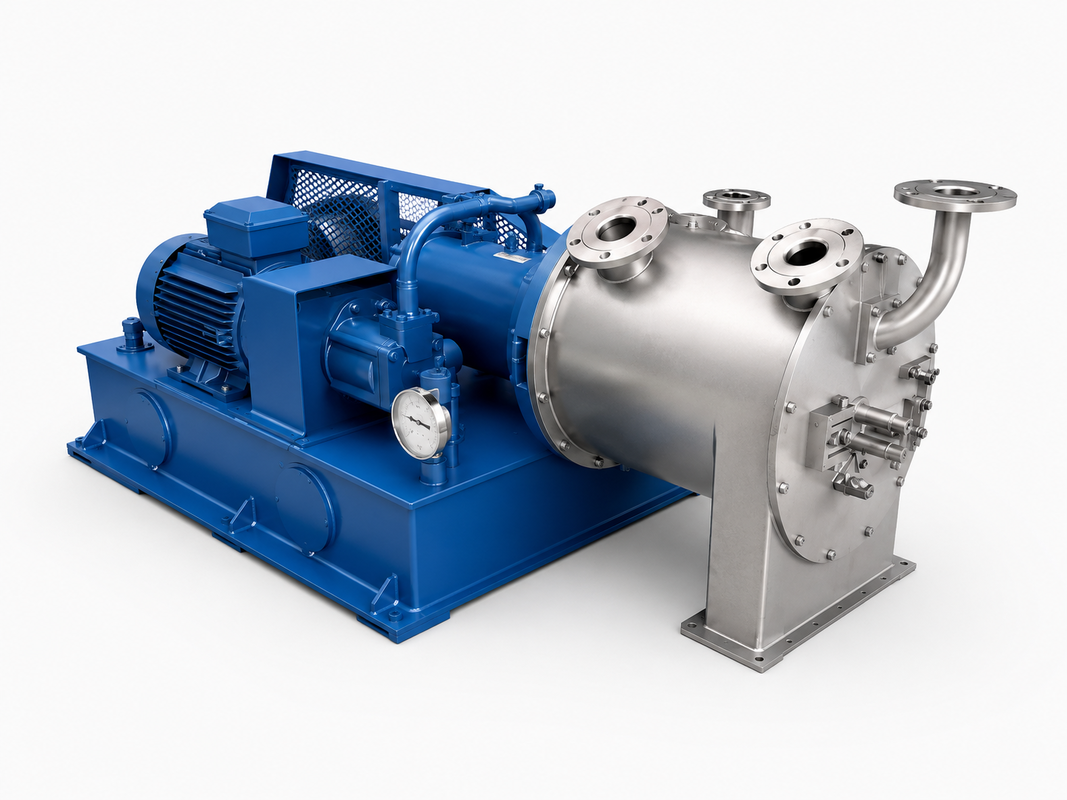

Industrial Scale Salt Processing Chemical Centrifuge Duplex Steel 2205 Body 1







Our services



1. 12 months guarantee period from machine arriving date.

2. Abundant spare parts in stock are available to provide.

3. Our technicians could be dispatched for overseas service.

4. 7*24 hours technical consultation.

5. Your workers could get trained both in our factory and yours.

6. Routine tracing till the machine work properly will be done timely.

7. We will remind you to do the normal maintenance.

8. Your suggestions or any comments & reflection would be treated as a priority.

9. Marketing team will visit you during our visit to your country if you require.
