Jacketed Vertical Basket Centrifuge Herbal Extraction Machine For Hemp Oil Extraction

Jacketed Vertical Basket Centrifuge Herbal Extraction Machine For Hemp Oil Extraction

Jacketed Vertical Basket Centrifuge Herbal Extraction Machine For Hemp Oil Extraction
Jacketed Vertical Basket Centrifuge Herbal Extraction Machine For Hemp Oil Extraction
Jacketed Vertical Basket Centrifuge Herbal Extraction Machine For Hemp Oil Extraction
Product Details:
Place of Origin: China
Brand Name: Peony
Certification: ISO9001& ISO14001
Model Number: BB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard wooden case
Delivery Time: 30-60days
Payment Terms: TT,LC, Western Union, D/A, D/P, MoneyGram
Supply Ability: 50sets per month
Contact Now
Detailed Product Description
Name: Basket Centrifuge System For CBD Oil Extraction MOC: SS304,316 As Option
Working Temp: Low Temperature Max.-80℃ Supply Scope: Centrifuge And Whole Extraction Line
Machines: Centrifuge, Tank, Chiller, Reactor, Pump And So On Processing: From Dry Cannabis To Crude Oil
Control: PLC Capacity: 30lbs~200lbs
Motor: UL Liseted XP Grade: GMP
High Light:

perforated basket centrifuge

,

bag lifting centrifuge





Jacketed Herbal Extraction Machine Basket Centrifuge with System for Hemp Oil Extraction





 Features for Centrifuge



- 304 and 316L Sanitary Stainless Steel Construction



- Low temperature rating: -40c



- Reinforced Sight Glass



- Bi-Directional Agitation



- Auto/Manual Controls



- Digital HMI Interface



- Variable Speed Control



- Easy Material Loading/ Unloading



- Heavy-Duty Spin Drying



- No foundation required



- Direct Drum type, without curl inward







 Specifications



Model Length (mm) Width (mm) Height (mm) Power (kw) Capacity (kg/hr)
PPTD-25 980 650 870 1.5 25
PPTD-50 1300 880 900 3 50
PPTD-135 1800 1200 1140 5.5 135
PPTD-200 2050 1500 1220 7.5 200
PPTD-300 2350 1650 1370 11 300







Process overview



Operator fills filter bag with milled plant material and places it in the machine.


The centrifuge is then flooded, and bi-directional agitated for full target compound removal.

After the wash, the plant material undergoes a medium duty spin dry till high speed spin dry to remove the liquid as much as possible.

The alcohol wash is then collected to some container for further processing.





 Collocation



1. Ex proof motor

2. Viton Seals

3. Touch screen panel with PLC program

4. Inverter control box

5. On spot ex button

6. Closed type filter bags

7. Tri clamp fittings for feed and drain port

8. Drum without curl inward

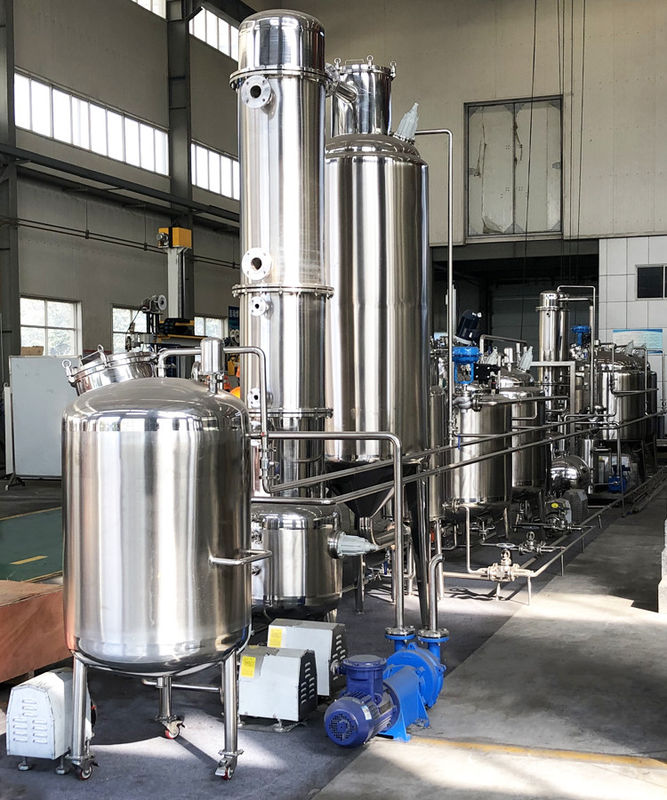

 Pictures



Jacketed Vertical Basket Centrifuge Herbal Extraction Machine For Hemp Oil Extraction 0

Jacketed Vertical Basket Centrifuge Herbal Extraction Machine For Hemp Oil Extraction 1





 Packing&Delivery





Jacketed Vertical Basket Centrifuge Herbal Extraction Machine For Hemp Oil Extraction 2







 Customer Photo



Jacketed Vertical Basket Centrifuge Herbal Extraction Machine For Hemp Oil Extraction 3



Testing equipment

Jacketed Vertical Basket Centrifuge Herbal Extraction Machine For Hemp Oil Extraction 4



 Why Choose Us



Service



1. 12 months guarantee period from machine arriving date.



2. Abundant spare parts in stock are available to provide.



3. Our technicians could be dispatched for overseas service.



4. 7*24 hours technical consultation.



5. Your workers could get trained both in our factory and yours.



6. Routine tracing till the machine work properly will be done timely.



7. We will remind you to do the normal maintenance.



8. Your suggestions or any comments & reflection would be treated in priority.



9. Marketing team will visit you during our visit in your country if you require.





 Guarantee



Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.


We are committed to reward you with a better quality in return for our interest in and faith toward.


We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
