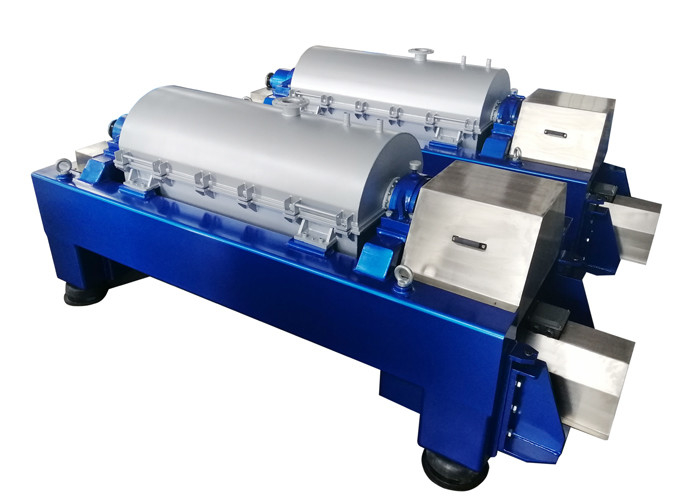

Titanium Chlor - Alkali Decanter Centrifuges For Sludge Dewatering

Titanium Chlor - Alkali Decanter Centrifuges For Sludge Dewatering

  • High Light

    drilling mud decanter centrifuge

    ,

    solid liquid centrifuge

  • Machine Type
    Chlor-Alkali Decanter Centrifuge In Titanium
  • Product Type
    Separation Equipment
  • Speed Control
    Inverter
  • MOC
    Titanium
  • Bearing
    SKF, NSK
  • Length Ratio Rate
    More Than 4
  • Flight
    TC Spray Or Tiled
  • Type
    Horizontal
  • After-sales Service
    Engineers Available To Service Machinery Overseas
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO9001&ISO14001,CE
  • Model Number
    PDC
  • Minimum Order Quantity
    1
  • Packaging Details
    Standard export packing
  • Delivery Time
    45days
  • Payment Terms
    TT. LC
  • Supply Ability
    100sets per month

Titanium Chlor - Alkali Decanter Centrifuges For Sludge Dewatering

Model PDC Chemical Decanter Centrifuge Chlor-Alkali Decanter Centrifuge in Titanium



Basic principles

For the decanter centrifuge, the continuous feeding, separating and discharging can be realized as it rotates at its full speed. It is characterized by compact structure, easy obturation, smooth running, low noises, large handling capacity, low energy consumption, high automation, small working strength, simple operation and easy maintenance, and wide applications.



Titanium Chlor - Alkali Decanter Centrifuges For Sludge Dewatering 0



Quick skimming

Application: Decanter for water sludge separation
Motor brand: ABB,SIEMENS
Bearing: SKF
Length-dia-ration: more than 4
Conveyor flight: lining or tiled
Control PLC system: with or without

Working principle

The drum and the spiral feeder rotate in the same direction but with a certain speed difference; the material is led into the feeding spiral inner cylinder via the feeding pipe and, after speeding pipe and, after speeding up, enters the drum; under the action of the centrifugal force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer; the solid-phase residue is continuously pushed by the spiral feeder to the conic end of the drum and, after dehydration in the drying area, is discharged out of the machine. The machine is capable of continuous feeding, separating, dehydrating and discharging under full-speed running.

Technical parameters


Model

Diameter
(mm)

Bowl Speed
(rpm)

G-force

Capacity
(m3/h)

Main Power
(kw)

Weight
(kg)

Overall Size

(L × W × H)
(mm)

PDC-18-3-W 450 3200 2600  3~15 30/11 2500 3716 ×  1080 × 1420

PS: The above parameters will be subject to the final technical agreement.



More pictures



Titanium Chlor - Alkali Decanter Centrifuges For Sludge Dewatering 1Titanium Chlor - Alkali Decanter Centrifuges For Sludge Dewatering 2Titanium Chlor - Alkali Decanter Centrifuges For Sludge Dewatering 3



Titanium Chlor - Alkali Decanter Centrifuges For Sludge Dewatering 4





Processing equipment



Titanium Chlor - Alkali Decanter Centrifuges For Sludge Dewatering 5





Export method

Titanium Chlor - Alkali Decanter Centrifuges For Sludge Dewatering 6





Guarantee



Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.We are committed to reward you with a better quality in return for our interest in and faith toward.We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
