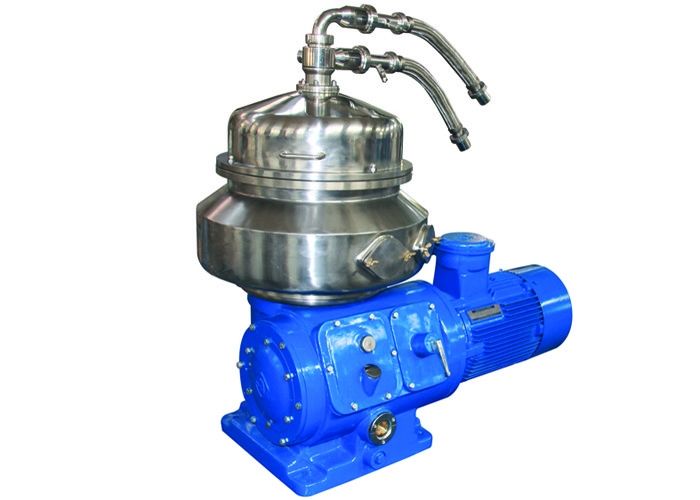

High Performance Disc Beer Separator - Centrifuge With Pressure Keeping System

High Performance Disc Beer Separator - Centrifuge With Pressure Keeping System

  • High Light

    oil separator centrifuge

    ,

    centrifuge filtration systems

  • Name
    Beer Separator Centrifuge
  • Capacity
    1000-3000L/hr
  • Model
    PDSM5000-CN
  • Running
    Automatic Continuous
  • Allocation
    Standard
  • Usage
    Charify Beer Mixture
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    PDSM5000-CN
  • Minimum Order Quantity
    1set
  • Price
    Negotiation
  • Packaging Details
    standard exported wooden case
  • Delivery Time
    45-60 days after payment
  • Payment Terms
    D/A, L/C, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30sets per month

High Performance Disc Beer Separator - Centrifuge With Pressure Keeping System



       High performance disc beer separator centrifuge with pressure keeping system



Introduction



Model PDSM-5000CN separator is mainly used in brewery for separation of yeast and clarification of beer. The liquid seal technology may functionally prevent from loss of carbon dioxide and avoid mixing of air during separating beer. The model is also used to separate similar material (e.g. Juice, beverage etc.)



The machine adopts small piston structure for gaining variable discharging capacity, and PLC control both partly and fully discharging in order to get rid of the sediment.



The clear liquid is pumped out by centripetal pump, the sludge is discharged automatically and partly.



The machine is one kind of rotary machine with high speed, After accurate dynamic balancing, it can run for long time with low vibration, safety and security.



The design, product and acceptance are conformed to the standard of JB/T8103.2 ‘ ’Disc Separator Part 2: Beer disc centrifuge’ ’.



Drawing of Pressure Keeping system

High Performance Disc Beer Separator - Centrifuge With Pressure Keeping System 0

Technical parameter



Discharge type / Variable capacity discharge
Rated capacity Lit/hr 1000-3000
Outlet pressuer of clear liquid Mpa ≥0.1
Motor power Kw 7.5
Net weight Kg 614
Overall dimension(L x W x H) mm 1120*850*1082



Structure



High Performance Disc Beer Separator - Centrifuge With Pressure Keeping System 1High Performance Disc Beer Separator - Centrifuge With Pressure Keeping System 2




High Performance Disc Beer Separator - Centrifuge With Pressure Keeping System 3

Intallation notice

1. For maintenance and repair, please leave enough space around the separator when install it.

2. The installation base should be firm and level.

3. All the pipes connecting with the separator should be flexible pipe.

4. The operation water of the separator must be soft water, the pressure of which is between 0.025 and 0.03Mpa.
