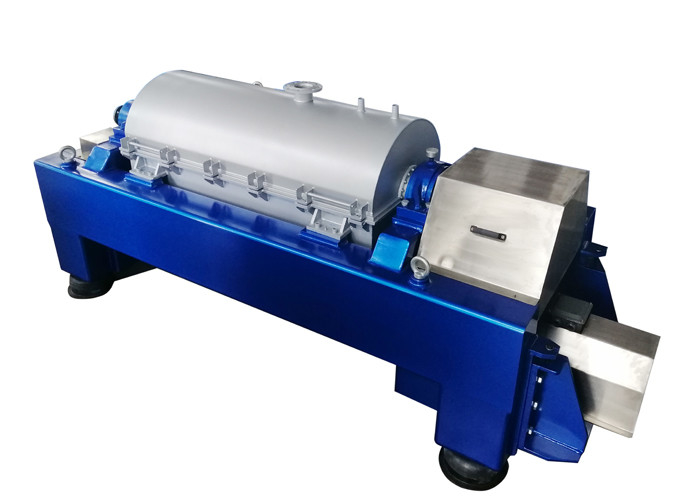

Horizontal Continuous Chemical Centrifuge / Titanium Decanter Centrifuge

China Horizontal Continuous Chemical Centrifuge / Titanium Decanter Centrifuge supplier

Large Image :  Horizontal Continuous Chemical Centrifuge / Titanium Decanter Centrifuge

Product Details:

Place of Origin: China
Brand Name: Peony
Certification: ISO9001&ISO14001,CE
Model Number: PDC

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard export packing
Delivery Time: 45days
Payment Terms: TT. LC
Supply Ability: 100sets per month
Contact Now
Detailed Product Description
Machine Type: Titanium Decanter Centrifuge Product Type: Separation Equipment
Speed Control: Inverter MOC: Titanium
Bearing: SKF Length Ratio Rate: More Than 4
Flight: TC Spray Or Tiled Type: Horizontal

Model PDC Chemical Centrifuge Continuous Titanium Decanter Centrifuge


Basic principles

For the decanter centrifuge, the continuous feeding, separating and discharging can be realized as it rotates at its full speed. It is characterized by compact structure, easy obturation, smooth running, low noises, large handling capacity, low energy consumption, high automation, small working strength, simple operation and easy maintenance, and wide applications.

Quick skimming

Application: Decanter for water sludge separation
Motor brand: ABB,SIEMENS
Bearing: SKF
Length-dia-ration: more than 4
Conveyor flight: lining or tiled
Control PLC system: with or without

Structure

Horizontal Continuous Chemical Centrifuge / Titanium Decanter Centrifuge


Working principle

The drum and the spiral feeder rotate in the same direction but with a certain speed difference; the material is led into the feeding spiral inner cylinder via the feeding pipe and, after speeding pipe and, after speeding up, enters the drum; under the action of the centrifugal force field, the relatively heavier solid-phase material deposits on the drum wall forming the residue layer;

the solid-phase residue is continuously pushed by the spiral feeder to the conic end of the drum and, after dehydration in the drying area, is discharged out of the machine. The machine is capable of continuous feeding, separating, dehydrating and discharging under full-speed running.

Technical parameters


Model

Diameter
(mm)

Bowl Speed
(rpm)

G-force

Capacity
(m3/h)

Main Power
(kw)

Weight
(kg)

Overall Size

(L × W × H)
(mm)

PDC-18-3-W45032002600 3~1530/1125003716 ×  1080 × 1420

PS: The above parameters will be subject to the final technical agreement.
