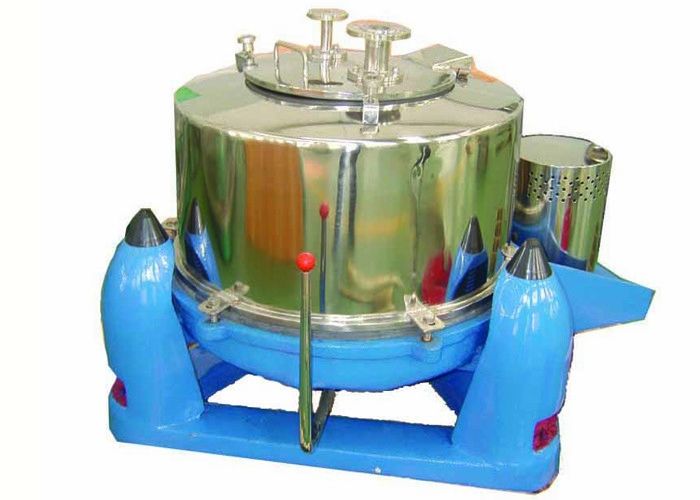

High performance top discharge solid bowl basket centrifuge with skimmer

High performance top discharge solid bowl basket centrifuge with skimmer

  • High Light

    perforated basket centrifuge

    ,

    bag lifting centrifuge

  • Commodity
    Solid Bowl Basket Centrifuge
  • Model
    PTDC-25
  • Function
    Solid-liquid Separation
  • MOC
    Stainless Steel
  • Type
    Tri-feet Or Plate Type
  • Discharge
    Manual, Batch
  • Standard
    GB
  • Control Box
    Optional
  • Usage
    Algae, Oil, Etc
  • Place of Origin
    CHINA
  • Brand Name
    PEONY
  • Certification
    ISO
  • Model Number
    PTDC-25
  • Minimum Order Quantity
    1SET
  • Price
    USD2500-USD10000
  • Packaging Details
    standard exported wooden case
  • Delivery Time
    45days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50sets per months

High performance top discharge solid bowl basket centrifuge with skimmer

High performance top discharge solid bowl basket centrifuge with skimmer



Description

Model PTDC centrifuges are three-footed top discharge, intermittent operation settling equipment. The
material is fed into the drum at the top. Under the action of the centrifugal force field, the liquid-phase passes through the filter medium and the discharged out of the machine, while the solid-phase material is retained inside the drum and after the machine is stopped, the material is discharged from the top. The centrifuge has such features as simple structure, easy operation, no easy breakage of material as well as good versatility.



Model PTDC centrifuges are three-footed manual top discharge, intermittent operation sedimentation centrifuge.



Application

The centrifuge is applicable to the separation of suspension containing solid-phase granules with the diameter greater than 0.01mm.The solid may be in the forms of granules, crystals or fiber. It is also applicable

to the dehydrating of goods in pieces (such as yam bundles, textile, etc.). It has found wide applications in such trades as chemical, pharmacy, food, light industry, etc. For example: gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additives, dye,plastic raw material, soap, grease, all kinds of resins, food salt, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicide, insecticide, the dehydration of such mineral fines as copper, zinc, aluminum, etc.



Technical parameter

Type                                 Drum

Power

(kw)

Weight

(kg)

Overall size

(L × W × H)

(mm)

Diameter

(mm)

Volume

(L)

Capacity

(kg)

Speed

(rpm)

G-force
PTDC-25 450 20 25 2200 1219 2.2 200 980 × 730 × 650
PTDC-50 600 40 50 1800 1088 4 580 1350 × 1080 × 800
PTDC-135 800 100 135 1500 1008 7.5 1300 1690 × 1380 × 1000
PTDC-200 1000 150 200 1200 806 11 2000 1890 × 1550 × 1000




High performance top discharge solid bowl basket centrifuge with skimmer 0

High performance top discharge solid bowl basket centrifuge with skimmer 1

Guarantee

Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.

We are committed to reward you with a better quality in return for our interest in and faith toward.

We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.



PS: Many of this type centrifuge have been exported to United State Market. We wish to build positive business relationship with you, too!



High performance top discharge solid bowl basket centrifuge with skimmer 2
