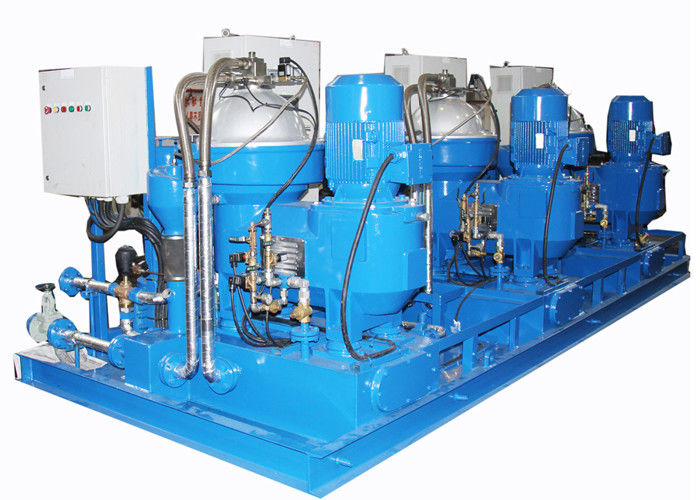

Oil Treatment System Disc Stack Centrifuge with Skid for Land Power Plant

Oil Treatment System Disc Stack Centrifuge with Skid for Land Power Plant

  • High Light

    disc stack centrifuge

    ,

    disc bowl centrifuge

  • Application
    Fuel Oil, Diesel, Lubricant, Hydraulic Oil, Etc
  • Rated Capacity
    14000L/H(0# Diesel Oil)
  • Bearing
    SKF Or Other Famous Brand
  • Control System
    With
  • Product Name
    Oil Treatment System Disc Stack Centrifuge With Skid For Land Power Plant
  • Structure
    Vertical, Skid Mouted
  • Operation
    Automatic Continuous
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    CCS, ISO
  • Model Number
    PDSD14000
  • Minimum Order Quantity
    1 set
  • Price
    USD62000/SET FOB Shanghai
  • Packaging Details
    Standard export packing
  • Delivery Time
    90 days after down payment
  • Payment Terms
    TT,.LC, Western Union
  • Supply Ability
    80 sets per month

Oil Treatment System Disc Stack Centrifuge with Skid for Land Power Plant



Oil Treatment System Disc Stack Centrifuge with Skid for Land Power Plant



Description:


Model PDSD14000 Skid is automatic continuous equipment for MDO (marine diesel oil) purifying. It is mainly to remove water and mechanical impurities from diesel oil, lubricating oil, and other mineral oil in marine diesel engine units and land-used diesel generator units of power stations so as to reduce wear of the diesel engine and other machines and prolong engine life. It is also used to separate two unsolvable liquids with different specific gravity or remove a small number of solid particles from a liquid.
Oil Treatment System Disc Stack Centrifuge with Skid for Land Power Plant 0


Main Technical Specification:

Model

PDSD14000

Rated Capacity

14000L/H(0# diesel oil)

Bowl rotating speed

7800 rpm

The output pressure of clear oil

≤ 0.2 Mpa

The output pressure of sewage

≤ 0.3MPa

Motor

11-15KW

Discharge type

Variable discharge

Output type

Centripetal pump

Overall size of single machine (LXWXH)

1200x810x1225(mmxmmxmm)





Advantages:

1.  Moisture sensor(No-gravity ring) technology is adopted to ensure the quality of the oil after separation.
2.  Bowl with a full hydraulic structure brings more thorough stage discharge and more stable and reliable performance.
3.  The new type of seamless belt drive(No second tensioning required) brings a more reliable structure and

simplified mechanical structure.
4.  High rotating speed ensures the best separation effect.
5.  Our separator is low power consumption and is lightweight, which is in accordance with the

requirements of the national industry.






Peony organizes the model selection question as below:

1) How many kinds of oil can you separate?
This series separator is widely used for kinds of oils, especially for Marine diesel oil and the

similar oil, such as light fuel oil, heavy fuel oil, lubrication oil, steam turbine oil, detergence oil,

engine oil etc


2) How can you select a suitable capacity?
Different oil has different capacity, our 1500L, 2000L, 3000L, 4000L, 5000L, 6000L, 8000L ,10000L

capacity is for the Marine diesel oil 0# as a sample. It also depends on the viscidity and temperature, and

for all the capacity models, we have an oil characteristic sheet to help our customer to find out what

their oil is, and what capacity their oil belongs to.


3) Is your separator self-cleaning?
We have 3 types of discharge means according to different materials and customer's requirements, we

have a self-cleaning model and a manual cleaning model.
1. Manual discharge model for the oil with very less solid component
2. Full discharge model for the big capacity treatment and a little solid component
3. Partly discharge model for the bigger capacity treatment and more solid component

4). Variable discharge model
No.full discharge type and partial discharge type are both self-cleaning models.


4) Will you help us to select the model?
Yes, you can select the model by yourself, or as long as you provide your material characteristic,

we have a professional engineering team to help you select the suitable machine


5 )Do you only have a single machine or a unit?
Both we have.


Oil Treatment System Disc Stack Centrifuge with Skid for Land Power Plant 1




Guarantee


Peony Centrifuge has been dedicated to producing machinery and types of equipment and carrying

out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to rewarding you with better quality in return for our interest in and faith.
We will do our utmost to one more stepping forward, based on our infinite services and trust in

customers.



PDSD14000 Oil Treatment System.pdf
