Stainless steel automatic Algae extraction separator, Disc Stack Centrifuges

China Stainless steel automatic Algae extraction separator, Disc Stack Centrifuges supplier

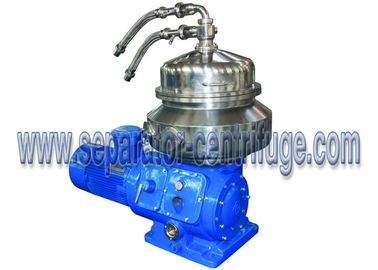

Large Image :  Stainless steel automatic Algae extraction separator, Disc Stack Centrifuges

Product Details:

Place of Origin: China
Brand Name: Peony
Model Number: PDSA

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Standard export packing
Delivery Time: 45days
Payment Terms: TT,.LC
Supply Ability: 100sets per month
Contact Now
Detailed Product Description

      Stainless steel automatic Algae extraction separator, Disc Stack Centrifuges


Description

Model PDSA separator is mainly used to remove water and algae such as Spirulina,green algae etc in the lake and sea. which is very fine even can not be visible by eye. With high G-force during the running, the separator could get the concentration liquid with algae about 10%.



The machine adopts automatic control, it has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost.The sludge is discharged automatically and fully.



The machine is one kind of rotary machine with high speed, After accurate dynamic balancing, it can run for long time with low vibration, safety and security.



The design, product and acceptance are conformed to the standard of GB/T5745 “Disc Separator”.

Specification

Model

PDSA-1500

PDSA-5000



PDSA-10000

Nozzle continuous

PDSA-15000/20000



Capacity (L/h)

1500

5000

8000-10000

15000-20000

Motor power (KW)

7.5

15

22

22

G force

8400

10700

10300



Net weigh (KG)

550

995

1611

1200

Overall dimension(mmxmmxmm)

 L × W × H(mm)

865x795x1100

1270x1048x1308

1366x1403x1434

1900×1580×1910



Technical advantages

  • partial discharging mode
  • nozzle continuously discharge means
  • variable discharging means(adopting double small valve variable discharging structure, the partial discharging mode combined with full discharging mode,achieving the variable discharging by changing through electric control parameters to increase separator's discharging reliability.
  •
  • geared drive, bowl,piston and hood are made of high-strength corrosion-resistant stainless steel Cr-Ni-Mo
  • other material contact parts(like discs,cover and machine body) are made of high-quality stainless steel SUS304
  • both vertical shaft and horizontal shaft are made of 20Cr13, all bearings are adopt SKF brand.
  • The equipment has vision glass and sampling export. Machine cover and machine body adopt mezzanine cooling, it can decrease the temperature of shell, also decrease the vibration and noise of the whole machine.
  • The equipment adopt variable frequency starting, it no need to change the friction plate and lubricating oil.
  • The equipment adopt vibration alarm device, in case the vibration strongly exceeds a set value, alarm start, if long time nobody handle, the machine will stop automatically.
  • In case over current or over load, the machine will stop automatically, ensure that the machine safely operation.
  • The equipment is automatic and manual dual operation.
  • The equipment with internal removable form, it can achieve the purpose of clean the inner part which is sealed, ensure the equipment and annex no cleaning dead corner.
  • The equipment's inner part with polishing,outer parts with dull processing, the screws,screw nuts and flat pad are made of SUS304, all interfaces are 1.6MPa flange interfaces or quick chuck.


 Reference Drawing:
