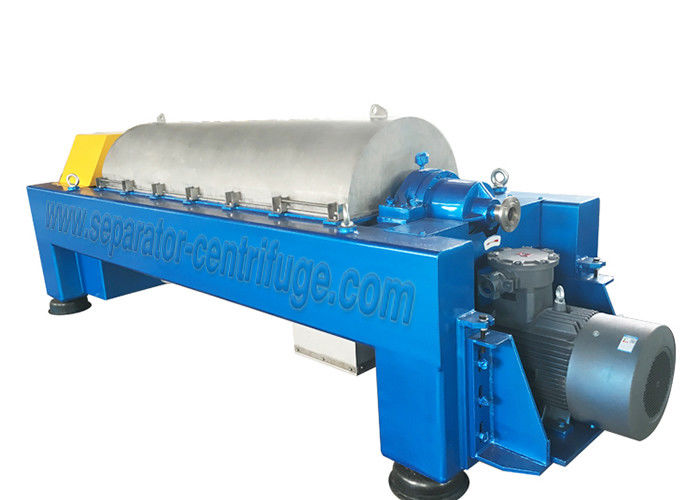

Decanter Centrifuges are horizontal-type centrifuges with a high capacity and high rotational speed, designed to separate solid particles from liquid. They are powered by an AC voltage of 220V or 380V and feature a PLC control system. Decanter Centrifuges are widely used in various industries such as oil and gas, food and beverage, pharmaceuticals, wastewater treatment, and more. They are particularly suitable for separating solids from liquids, such as fish oil decanter centrifuge. With its high capacity and powerful rotational speed, Decanter Centrifuges are the ideal choice for many industrial applications.
Decanter design
Type: 2-phase separation
Material: high quality stainless steel for all wet parts
Bearing: SKF brand. A special selection and arrangement of bearings provides for long life and exceptional reliability
Wear protection: welded hard facing or spray coating, ceramic technology
APPLICATION
Food: Fruit and Vegetable juices, Starch, Protein, Molasses, Stillage
Oils and Fats: Fish oil, Gelatine
Environmental protection/Recycling: Drilling mud, Industrial wastewater, Municipal wastewater
Minerals: Graphite, Kaolin, Bentonite
| Model |
Diameter (mm) |
Bowl speed (rpm) |
G-force |
Capacity (m3/h) |
Motor power (kw) |
Weight (kg) |
Overall dimension (L*W*H) (mm) |
| PNX-409 | 250 | 5500 | 3493 | 0.2-2 | 15/4 | 1020 | 2500*650*760 |
| PNX-414 | 355 | 4000 | 3175 | 1-10 | 18.5/7.5 | 2035 | 2765*920*1060 |
| PNX-416 | 355 | 4000 | 3175 | 1-15 | 18.5/7.5 | 2122 | 3065*920*1060 |
| PNX-418 | 355 | 4000 | 3175 | 1-25 | 22/7.5 | 2222 | 3365*920*1060 |
| PDC-1655 | 420 | 3000 | 2113 | 10-30 | 55/15 | 4600 | 4080*1100*1420 |
| PDC-17-4 | 420 | 3600 | 3042 | 3-15 | 30/7.5 | 5165 | 3331*990*1066 |
| PDC-18-4.4 | 450 | 3300 | 2739 | 10-20 | 37/11 | 2739 | 4000*1120*1239 |
| PDC-20 | 500 | 3200 | 2860 | 5-45 | 55/11 | 4400 | 4489*1160*1350 |
| PDC-21 | 540 | 2800 | 2366 | 15-50 | 45/15 | 5290 | 4587*1285*1368 |
| PDC-24 | 620 | 3200 | 3555 | 15-60 | Hydraulic, 90 | 8000 | 4650*2010*1200 |
| PDC-28HH | 720 | 2200 | 1975 | 15-80 | 110/37 | 9393 | 4800*1350*1500 |
PS: The above parameters will be subject to the final technical agreement.
We are one of the world's leading manufacturers of disc centrifuges, decanters, separation systems and marine equipment. We focus on food production, environmental protection, energy recycling, chemistry and marine. Now there are over 150 series of decanter centrifuges and disc separators used both home and abroad.
OUR SERVICE:
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.
1. How can we visit your factory?
If you come from abroad, air to Shanghai airport, then take bullet train, about 1 hour from Shanghai to Nanjing South Station; if you come from our domestic city, air or train directly to Nanjing, we will pick you up both in the airport and railway station.
2. Can we visit your end user or contact them?
Yes, users are in domestic and abroad, we can provide you the name list, you can go there or contact for more info.
3. How do you protect the quality?
Our factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission & electrical parts are of international famous brand. Series of test and inspection are done in the whole producing stage.
4. Will you dispatch technicians for installation and commissioning?
Yes, we can, we do lots of service, please refer to our after sales part.
5. What is your advantages compared with your competitors?
Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world famous brands.
6. Is your price competitive?
Our price is not the lowest in China as for high quality, but we promise, for the same quality and collocation, our price is the most favourite, for the same price, our quality is definately superior to other brand.
7. Do you have OEM serive? Do you supply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements.
8. Do you supply second hand centrifuge?
No, we only provide brand new machine.
9. Do you have agent or service center in my country?
We have some partnership in several countries as Indonesia, Brazil, USA, etc. Your are warmly welcomed to work as our agent. At this moment, we have no service center abroad, but we can provide overseas spot and online technical service in time.
10. How can we easily find out the most fit centrifuges?
We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.
11. What payment mode you accept?
TT and LC at sight.
Our products are sold all over the world, you can rest assured.
