Adjustable Pharmaceutical Centrifuge PPBL Clamshell  Chemical Extraction Machines

Adjustable Pharmaceutical Centrifuge PPBL Clamshell Chemical Extraction Machines

  • High Light

    Adjustable Pharmaceutical Centrifuge

    ,

    Clamshell Chemical Extraction Machines

    ,

    Chemical Pharmaceutical Centrifuge

  • Application
    Centrifuge For Removing Solids From Soybean
  • Function
    Dewatering,separation,filtration
  • Automatical Degree
    Manual Operation
  • Working Type
    Batch Operaton
  • Discharge Type
    Manual Top Discharge
  • Cover
    Clamshell
  • MOC
    SS304,SS316
  • Base1
    Need Concrete Base
  • Base2
    Anti Vibration Foundation
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    PPBL
  • Minimum Order Quantity
    1
  • Price
    Please contact us
  • Packaging Details
    Standard export packings
  • Delivery Time
    60 days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    30 sets/month

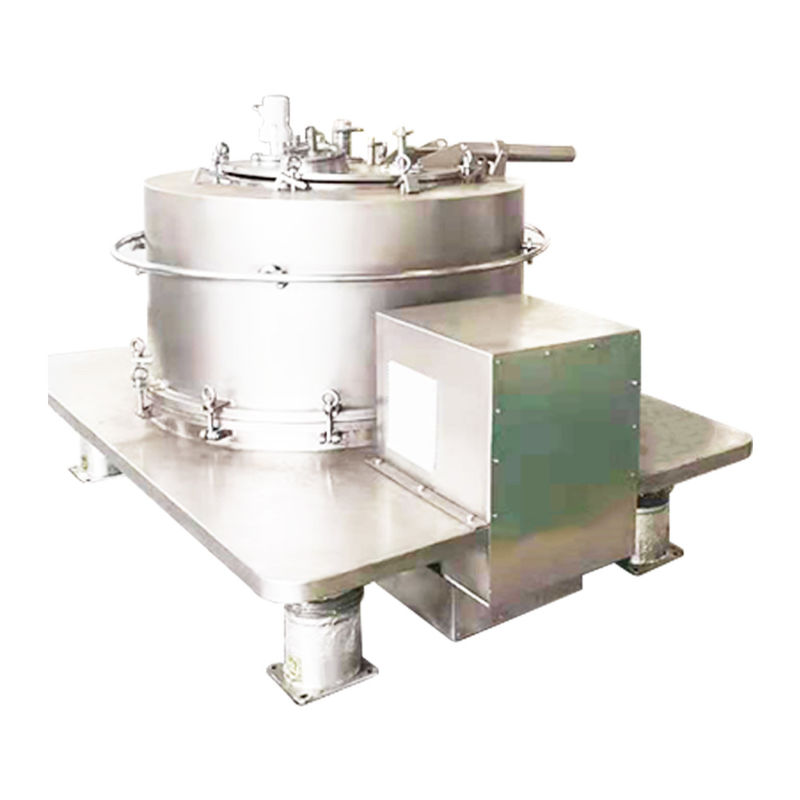

Adjustable Pharmaceutical Centrifuge PPBL Clamshell Chemical Extraction Machines



Adjustable Pharmaceutical Centrifuge PPBL For Chemical / Extraction Machines



Description


PPBL series plate bag lifting top discharge centrifuges are filter equipment with hermetic closure procedure task, intermittent operation and hanging bag off-site discharge.


Working principles

1) This model of basket centrifuge is airtight equipment
2) Batch operation and hanged bag unloading at alien land,speed adjustable
3) The slurry is fed from the upper into the rotary drum
4) Under the centrifugal force function, the liquid passes through the filtering medium and discharges out of the machine
5) The solid is left in the rotary drum
6) After the machine is stopped, the filtering bag and liquid-block plate are hanged out and carried to the fixed site to unload the material


Applications



  1. This type of basket centrifuge is suitable for separating suspensions with solid particles larger than     0.01mm
  2. Especially suitable for filtering poisonous and inflammable materials
  3. Widely used in chemical, pharmaceutical, food, light industry and other trades
  4. Most commonly used for gypsum, ferric sulfate, nickel sulphate, copper sulphate, potassium chloride, acetate, borax, soda, rubber additives, dye, plastic raw material, soap, grease, resin, salt, gourmet powder, food additives, vitamins, herbicides, insecticides and dewatering of copper, zinc, aluminum and other mineral powders, etc.


Specifications



Type

Drum

Power
(kw)

Weight
(kg)

Overall size
(L × W × H)
(mm)

Diameter
(mm)

Volume
(L)

Capacity
(kg)

Speed
(rpm)

G-force

PPBL-155

800

115

155

1500

1008

7.5

1800

1800 × 1050 × 1140

PPBL-230

1000

170

230

1200

806

11

2800

2030 × 1300 × 1220

PPBL-340

1200

250

340

800

431

11

3200

2300 × 1500 × 1350

PPBL-400

1250

280

400

950

631

18.5

4200

2350 × 1550 × 1370

PPBL-400-NA

1250

400

540

950

631

22

5000

2350 × 1550 × 1520

PPBL-650

1500

500

650

850

607

30

5200

2900 × 1900 × 1575

PPBL-650-NA

1500

600

800

850

607

37

5700

2900 × 1900 × 1800


Competitive Advantages

Large capacity, high efficiency, simple operation, fast unloading, good guarding function, clean surrounding, low labor strength, etc.
