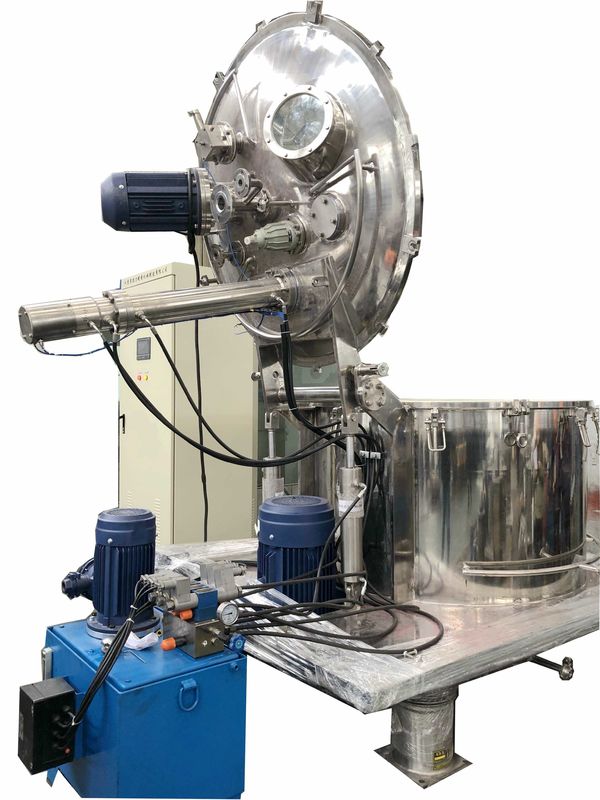

DSS2205 Bottom Discharge  Shaking bag Pharmaceutical Centrifuge

DSS2205 Bottom Discharge Shaking bag Pharmaceutical Centrifuge

  • High Light

    Bottom Discharge Pharmaceutical Centrifuge

    ,

    Shaking bag Pharmaceutical Centrifuge

    ,

    DSS2205 Shaking bag Centrifuge

  • Application
    Pharmaceutical Industry
  • Operation
    Automatic Batch Discharge
  • MOC
    SS304, SS316L, DSS2205, Etc.
  • Bearing
    SKF, NSK As Optional
  • Discharge Type
    Scraper Bottom Shaking Bag Discharge
  • Product Name
    Pharmaceutical Scraper Discharge Bottom Shaking Bag Centrifuge Machine
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    LLGZ
  • Minimum Order Quantity
    1 set
  • Price
    USD20000-85000/set FOB Shanghai
  • Packaging Details
    Standard export packings
  • Delivery Time
    60-75 days after deposit
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    150 sets/month

DSS2205 Bottom Discharge Shaking bag Pharmaceutical Centrifuge

Pharmaceutical Scraper Discharge Bottom Shaking Bag Centrifuge Machine​



Working Principle



During the process of discharging, the scraper acts, under the impact of it most products are discharged through the blanking hole on the bottom of the drum to the outside. The remnant product layer will be removed because of the oscillation effect by the influence of the automatic shaking-bag mechanism inside the drum.



Bag-lifting(shaking-bag) device, driven by a cylinder, can drive the bottom edge of the filter bag to move up and down rapidly, which can make the filter bag shake and completely remove the residual material layer.

A special material blocking mechanism is set between the bottom of the lifting bag cover and the discharging hole. The practice has proved that the material can be effectively blocked from drilling into the back of the filter cloth during the bag pulling operation, and the scraper will not damage the filter cloth.

Pull-bag cylinder and spindle pulley rotate synchronously, without relative motion or vulnerable parts.



Features

1) Automatic frequency speed control.

2)It has all advantages of a common scraper centrifuge.
3)Full-automatic operation for shaking bag falling off and reset.

4)The filter bag can be moved up and down inside the drum to produce an oscillation effect and remove the remnant filter cake thoroughly.

5)Big clamshell or whole shell reversible type is achievable according to users' demands.

6)The automatic residual cakes removing device is optional(have owned the national patent).



Applications

1) Suitable for separating suspensions with solid grains larger than 0.01mm
2) Widely used in chemical, pharmaceutical, food, light industry, and other trades
3) Most commonly used for gypsum, ferric sulfate, nickel sulfate, copper sulfate, potassium chloride, acetate, borax, soda, rubber additives, dye, plastic raw material, soap, grease, resin, salt, gourmet powder, food additives, vitamins, herbicides, insecticides and dewatering of copper, zinc, aluminum, and other mineral powders
 DSS2205 Bottom Discharge  Shaking bag Pharmaceutical Centrifuge 0

Specification



Model

Basket

Motor

(kW)

Weight

(kg)

Overall size

(L × W × H)

(mm)

Diameter

(mm)

Volume

 (L)

Capacity

(kg)

Max speed

(rpm)

G-Force

LLGZ800

800

100

140

1500

1008

11

3000

1800 × 1200 × 1670

LLGZ1000

1000

150

200

1200

806

15

4000

2050 × 1500 × 2000

LLGZ1250

1250

280

400

900

567

18.5

5000

2350 × 1650 × 2450

LLGZ1250

1250

400

540

1000

700

22

5500

2400 × 1700 × 2920

LLGZ1600

1600

900

1200

850

647

45

8500

3000 × 2200 × 3300

 DSS2205 Bottom Discharge  Shaking bag Pharmaceutical Centrifuge 1
