GMP Standard Automatic Solid Liquid Separation Centrifuge For Sugar Project

GMP Standard Automatic Solid Liquid Separation Centrifuge For Sugar Project

  • High Light

    GMP Solid Liquid Separation Centrifuge

    ,

    Sugar Solid Liquid Separation Centrifuge

    ,

    GMP Standard Basket Centrifuge

  • Type
    Horizontal Centrifuge For Sugar Project
  • MOC
    SS304, SS316L
  • Operation
    Continuous
  • Equipped
    Inverter, PLC System
  • Collocation
    Hydraulic System
  • Weight
    Depends On Model
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO,CE, ISO
  • Model Number
    PPC
  • Minimum Order Quantity
    1 set
  • Price
    please contact me
  • Packaging Details
    Standard wooden case
  • Delivery Time
    60 days
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    100sets per month

GMP Standard Automatic Solid Liquid Separation Centrifuge For Sugar Project



GMP Standard Automatic Solid Liquid Separation Centrifuge For Sugar Project




MAIN CHARACTERISTICS
♦ It is fully conformed to GMP CGMP and FDA Norm and meet the requirements of asepsis raw medicine production.
♦ With absolute isolation between power area and process area.It is suitable for occasion when customer requires high quality cleaning to avoid the contamination to product.
♦ The out shell bucket can be opened, so the whole internal parts can be observed and easy for touch wiping and cleaning.
♦ Perfect CIP system can be carried out to wash the internal parts of centrifuge to avoid cross contamination which are not easy to clean.
♦ Unique pneumatic counter-pulse device is equipped, which can remove remnant filter cake as much as possible.
♦ Totally-enclosed structure equipped with inert gas protection is adopted to be used in ex-proof 1 section.
♦ The automatic residual cakes removing device is optional (have owned the national patent).


The GMP Standard Automatic Solid Liquid Separation Centrifuge For Sugar Project is solid-liquid separation equipment which adopts continuous operation and intermittent discharging. It is controlled by PLC.It regulates speed by frequency convertor, braking system adopts dynamic braking and regenerative braking. Through such procedures as product level detection, speed, inspection, shaft temperature and vibration monitoring, the whole separation process is automatic circulative work(including feeding, dehydration, washing, discharging and etc.) Also manual operation mode is available which can be changed over from full-automation mode by customer's will.

TECHNICA PARAMETERS
Model
Capacity
(Kg)
Speed
(r/min)
G-force
Power
(Kw)
PPC-135
135
1600
1150
30
PPCS-135
135
1600
1150
37
PPC-135-GMP
135
1600
1150
37
PPC-312
312
1350
1020
45
PPCS-312
312
1350
1020
55
PPC-288
288
1200
968
45
PPC-375
375
1200
1008
45
PPCS-555
555
1200
1008
75
PPC-960
960
850
650
75
PPCS-960
960
850
650
90

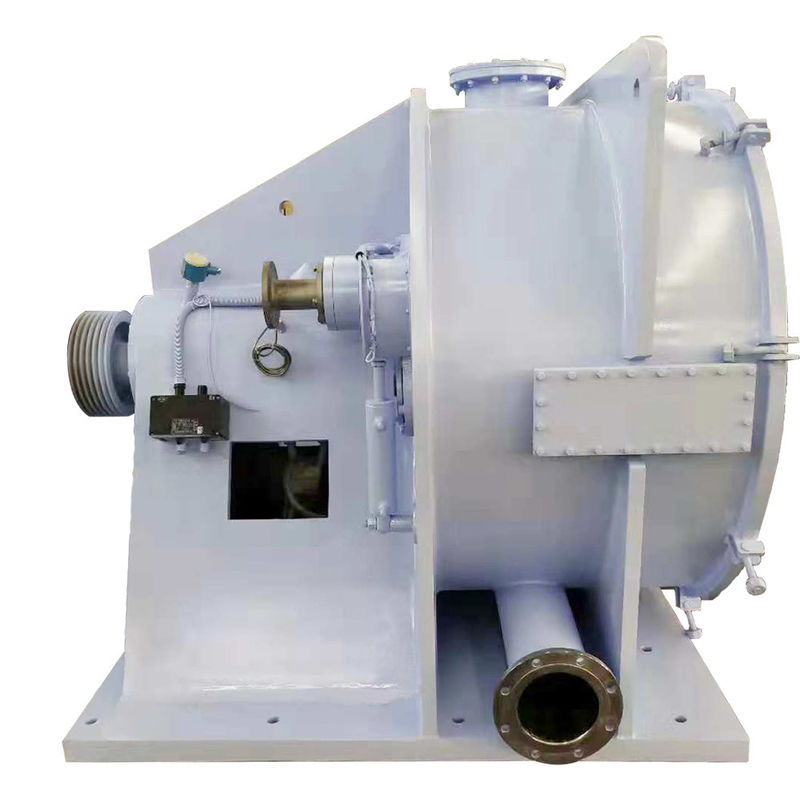

Detailed Images



GMP Standard Automatic Solid Liquid Separation Centrifuge For Sugar Project 0GMP Standard Automatic Solid Liquid Separation Centrifuge For Sugar Project 1





Our Service



1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.



FAQ



1. How can we visit your factory?
* If you come from aborad,air to shanghai or nanjing airport,or if you arrive shanghai,you can take bullet trian
* If you come from domestic city,air or train directly to Nanjing Nan or WUXI east,we will pick you up both from airport or railway station
2. Can we visit your end user or contact them?
Yes,we will provide you the name list,and arrange the visit after their approval.
3. How do you protect the quality?
As state owned enterprise with more than 100years history,we have strict operation policy,advanced processing machines to guarantee the precision ,workers with operation license,related components are from world famous brand,Series of test and inspection are done in the whole producing stage.
4. Will you dispatch technicians for installation and commissioning?
Yes,we will upon required.
5. What is your advantage compared with your competitors?
Quality and experience,We are top centrifuge supplier in China,our designs and structures
are analogous to world leader brands.
6. Is your price competitive?
My price is not the lowest in China ,but we promise,for the same quality and collocation,my price is the
most favorable,for the same price,my quality is definately superior to other brands
7. Do you have OEM service? do you sppply the parts?
Yes,we do,as long as you provide us your drawing and detailed requirements
8. Do you supply second hand equipments?
No,we don't.
9. Do you have agents or service centre abroad?
We have some partership in several countries as Indonesia,Brail,USA.
10. What payment mode you accept?
TT and LC at sight
11. Will you help to go to our site for commissioning and training?
Yes,we can
