SS304 Screw Conveyor Horizontal Scraper Starch Separator

SS304 Screw Conveyor Horizontal Scraper Starch Separator

  • High Light

    Horizontal scraper starch separator

    ,

    Screw Conveyor starch separator

    ,

    SS304 centrifuge starch machine

  • Collocation 1
    Hydralic System
  • Collocation 2
    Screw Conveyor
  • Shape
    Horizontal
  • Keywords
    Centrifuge Starch Machine
  • Discharge Type
    Spiral Scraper Discharge
  • PLC System
    As Option
  • MOC
    SS304,SS316
  • Operation
    Continuous
  • Special Adoption
    Dewatering Centrifuge
  • Warranty
    1 Year
  • Application
    Starch, Pharmacy
  • Discharge
    Automatic Discharge
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO,CE
  • Model Number
    PPC/PPCS
  • Minimum Order Quantity
    1
  • Price
    USD30000-125000/SET
  • Packaging Details
    Standard export package, polywood, fumigated wood, filmed
  • Delivery Time
    75-90 days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union, MoneyGram
  • Supply Ability
    30 sets/month

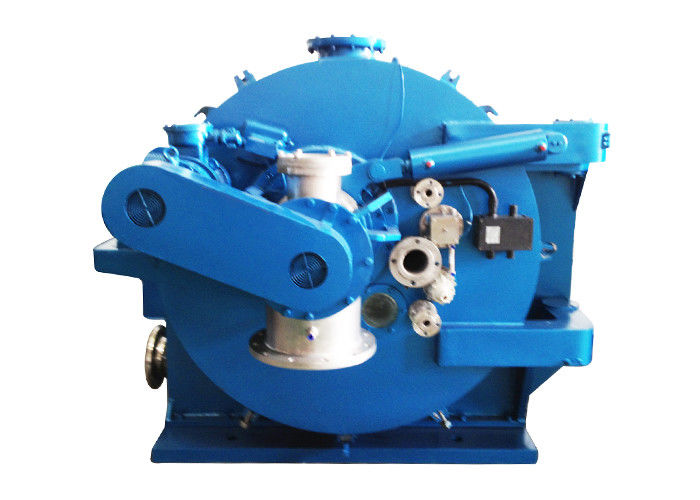

SS304 Screw Conveyor Horizontal Scraper Starch Separator

Horizontal scraper starch separator automatic centrifuge starch machine





Description



PPC/PPCS series automatic centrifuge is solid-liquid separation equipment which adopts continuous operation and intermittent discharging.



SS304 Screw Conveyor Horizontal Scraper Starch Separator 0



The machine is controlled by PLC. It regulates speed by frequency converter. Braking system adopts dynamic braking and regenerative braking. Through such procedures as product level detection, speed inspection, shaft temperature and vibration monitoring, the whole separation process is automatic circulateve work (including feeding, dehydration, washing, discharging, ect). Also manual operation mode is availalbe which can be changed over from full automation mode by customer's will.





Specification



Model Drum G-force Power(kw) Weight(kg)

Diameter

(mm)

Volume

(L)

Capacity

(kg)

Speed

(r/min)

PPC-135 800 95 135 1600 1150 30 5000
PPCS-135 800 95 135 1600 1150 37 5500
PPC-135 GMP 800 95 135 1600 1150 37 6500
PPC-312 1000 208 312 1350 1020 45 6500
PPCS-312 1000 208 312 1350 1020 55 7000
PPC-288 1200 230 288 1200 968 45 8000
PPC-375 1250 250 375 1200 1008 45 9000
PPCS-555 1250 370 555 1200 1008 75 12000
PPC-960 1600 650 960 850 650 75 13500
PPCS-960 1600 650 960 850 650 90

15000





Applications



Tapioca Starch Centrifuge is the filter equipment characterized with continuous running, scraper discharging and intermittent operation, applicable to the separation of the suspension liquid containing medium-sized granules or fine granules  (0.01mm ~ 5mm).



SS304 Screw Conveyor Horizontal Scraper Starch Separator 1



It can also be used for the separating of the suspension liquid containing short fibers (with the fiber length less than 4mm), with the concentration of the suspension liquid being 10%~60%. With hydraulic and electric joint control mode adopted, this series of centrifuges are capable of high degree of automization, with such working processes as feeding, dehydrating, washing, discharging, etc. being operated manually or by means of PLC for full automatic control.



The horizontal scraper discharging centrifuge has good adaptability to the material to be processed and thus can be widely used in such industrial fields as chemical, light industry, food, pharmacy, etc. for the separating of over 100 kinds of substances including ammonia sulphate, sodium sulphate, anthracene, boric acid, starch, pesticide, synthetic resin, sodium cyanide, potassium chloride, sodium bicarbonate, etc.




More pictures



SS304 Screw Conveyor Horizontal Scraper Starch Separator 2





Customer site



SS304 Screw Conveyor Horizontal Scraper Starch Separator 3





Certificate



SS304 Screw Conveyor Horizontal Scraper Starch Separator 4
