2500r/Min Duplex Stainless Steel Pusher Centrifuge IP54 Protection

2500r/Min Duplex Stainless Steel Pusher Centrifuge IP54 Protection

  • High Light

    2500r/min pusher centrifuge

    ,

    2500r/min Stainless Steel centrifuge

    ,

    Duplex Stainless Steel centrifuge

  • Suitable For
    Salt Dewatering, Solid 40-60% The Best
  • Operation
    Full Automatic And Continuous
  • Technique
    Sulzer Echer Wyss
  • MOC
    SS316L, DSS
  • Control Box
    With
  • Product Name
    Duplex Stainless Steel 2 Stage Pusher Salt Centrifuge Machine
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    PP
  • Minimum Order Quantity
    1 set
  • Price
    USD36800-83500/SET FOB SHANGHAI
  • Packaging Details
    Standard export packings
  • Delivery Time
    60-90 days after down payment
  • Payment Terms
    T/T, L/C, Western Union
  • Supply Ability
    60 sets/month

2500r/Min Duplex Stainless Steel Pusher Centrifuge IP54 Protection

Duplex Stainless Steel 2 Stage Pusher Salt Centrifuge Machine





Quick skimming



Application: Sea salt and mineral salt dewatering

Advantages: Full automatic, large capacity

Bearing: Famous brand, such as SKF

MOC: SS316, DSS2205

Advanced technology: Sulzer

Separation effection: Moisture in the cake less than 4%





Description



Model PP 2-stage pusher centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The feeding material enters into the feeding pipe and distributed continuously and evenly into the first stage basket. Most of the mother-liquor in the feed, act on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocates, pushing the formed product cake into the second stage basket. The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterward, the cake is continuously discharged out of the basket. In case of high purity for the solid product, effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.







Technical Parameters of PP-40



Equipment

2 stage pusher centrifuge

Spec.

PP-40

Qty

set

 Technical parameters

1

Basket diameter

 290/360 mm

2

Basket Rotate Speed (Max)

2500r/min

3

Stroke of Pusher Mechanism

40-80times/min

4

First, second stage mesh aperture (as per the material)

mm, mm

5

Separation Factor

586-728

6

Main motor

Spec/Power

11-15KW





Installation type

Horizontal





Protection class

IP54/F1





Electrical power

3 phase 380V/50Hz AC

7

Oil pump motor

Spec/Power

5.5-7.5KW





Installation type

Horizontal





Protection class

IP54/F1





Electrical power

3 phase 380V/50Hz AC

8

Oil pump

Spec.

NB4C100F





outflow

100ml/turn





Maximum pressure

2.5Mpa

9

Overall size

2346mm×1090mm×1006mm

10

Weight

2600kg

11

Shell type

open

12

Output

3T-5T/h(sea salt)

13

Moisture content after separation:

3-4%(sea salt)

14

Object processed

Mineral salt/Sea salt



Technical Parameters of PP-50

Equipment

2 stage pusher centrifuge

Spec.

PP-50

Qty

set

Technical parameters

1

Basket diameter

  438/500 mm

2

Basket Rotate Speed (Max)

2000rpm

3

Stroke of Pusher Mechanism

40-80times/min(can be adjusted)

4

First, second stage mesh aperture (as per the material)

mm, mm

5

Separation Factor

1119

6

Main motor



Spec/Power

45KW

Installation type

Horizontal

Protection class

IP54/F1

Electrical power

3 phase 380V/50Hz AC

7

Oil pump motor



Spec/Power

22KW

Installation type

Horizontal

Protection class

IP54/F1

Electrical power

3 phase 380V/50Hz AC

8

Oil pump

Spec.

SNE/A280

outflow

480ml/turn

Maximum pressure

2Mpa

9

Overall size

3660mm×1420mm×2078mm

10

Weight

4400kg

11

Shell type

open/seal(can be select)

12

Output

≥12T/h(sea salt)

13

Moisture content after separation:

4%(sea salt)



Technical Parameters of PP-60

Equipment

2 stage pusher centrifuge

Spec.

PP-60

Qty

set

Technical parameters

1

Basket diameter

  560/630 mm

2

Basket Rotate Speed (Max)

1360 r/min

3

Stroke of Pusher Mechanism

70-80 times/min

4

First, second stage mesh aperture (as per the material)

mm, mm

5

G-force

570-642

6

Main motor



Spec/Power

55KW

Installation type

Horizontal

Protection class

IP54/F1

Electrical power

3 phase 380V/50Hz AC

7

Oil pump motor



Spec/Power

30KW

Installation type

Horizontal

Protection class

IP54/F1

Electrical power

3 phase 380V/50Hz AC

8

Oil pump

Spec.

NB5D140F

outflow

140ml/turn

Maximum pressure

8Mpa

9

Overall size

3127mm × 1700mm × 1955mm

10

Weight

4860kg

11

Shell type

open

12

Output

≥15T/h (Mineral salt)

13

Moisture content after separation:

≤3%



More Pictures

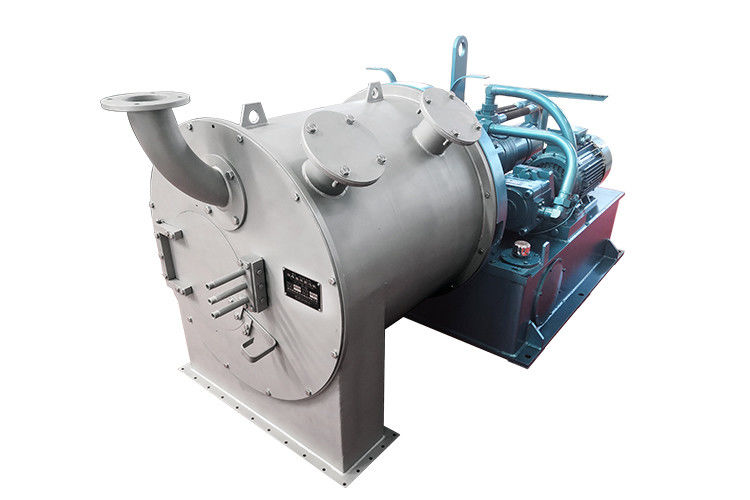

2500r/Min Duplex Stainless Steel Pusher Centrifuge IP54 Protection 0
