Automatic Discharge Separator - Centrifuge For Salt Dewatering / Processing

Automatic Discharge Separator - Centrifuge For Salt Dewatering / Processing

  • High Light

    basket type centrifuge

    ,

    bag lifting centrifuge

  • Advanced Technology
    Sulzer
  • Capacity
    1-45t/hr
  • Operation
    Automatic Continuous
  • Certification
    ISO, ISO,CE
  • Voltage
    220,380,440,460V, 220,380,440,460V
  • Name
    2stage Pusher Centrifuge
  • Separation Effection
    Moisture In The Cake Less Than 4%
  • Application
    Centrifuge Used For Potassium Chloride Application
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO9001&ISO14001,CE
  • Model Number
    Pusher centrifuge
  • Minimum Order Quantity
    1
  • Packaging Details
    Standard export packings
  • Delivery Time
    90 days
  • Payment Terms
    T/T
  • Supply Ability
    20 sets/month

Automatic Discharge Separator - Centrifuge For Salt Dewatering / Processing



 Two-Stage Horizontal Automatic Discharge Centrifuge For Salt Dewatering / Processing





Description

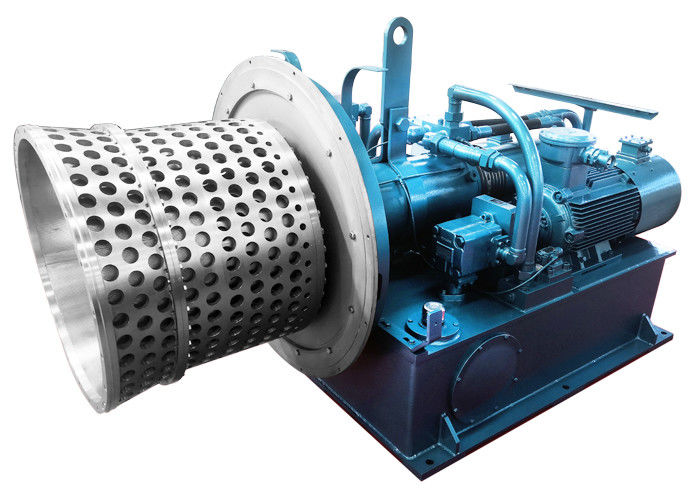

Model PP Sulzer Double Stage Salt Centrifuge is a kind of perforated basket centrifuge, both continuous and effective. The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket. Most of the mother-liquor in the feed, acted on by centrifugal force,

departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage

basket .

The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterwards, the cake is continuously

discharged out of the basket. In case of high purity for the solid product, the effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged

separately.









Application
This type of centrifuge is well used to separate suspension with its solid size is over 0.1mm and density is over 30%.It can be used in chemical,light,pharmacy and food industry to produce sodium chloride ammonium fluoride ammonium bicarbonate, sodium sulphate, urea, polyethylene, polystyrene, oxalate, nitrate.


Service
★ 12 months guarantee period from machine arriving date.
☆ Abundant spare parts in stock are available to provide.
★ Our technicians could be dispatched for overseas service.
☆ 7*24 hours technical consultation.
★ Your workers could get trained both in our factory and yours.
☆ Routine tracing till the machine work properly will be done timely.
★ We will remind you to do the normal maintenance.
☆ Your suggestions or any comments & reflection would be treated in priority.
★ Marketing team will visit you during our visit in your country if you require.





Technical Parameters of PP-50



Equipments

2 stage pusher centrifuge

Spec.

PP-50

Qty

set

Technical parameters



1

Basket diameter

  438/500 mm

2

Basket Rotate Speed (Max)

2000rpm

3

Stroke of Pusher Mechanism

40-80times/min(can be adjust)

4

First, second stage mesh aperture (as per the material)

mm ,mm

5

Separation Factor

1119

6

Main motor



Spec/Power

45KW

Installation type

Horizontal

Protection class

IP54/F1

Electrical power

3 phase 380V/50Hz AC

7

Oil pump motor



Spec/Power

22KW

Installation type

Horizontal

Protection class

IP54/F1

Electrical power

3 phase 380V/50Hz AC

8

Oil pump

Spec.

SNE/A280

outflow

480ml/turn

Maximum pressure

2Mpa

9

Overall size

3660mm×1420mm×2078mm

10

Weight

4400kg

11

Shell type

open/seal(can be selet)

12

Output

≥12T/h(sea salt)

13

Moisture content after separation:

4%(sea salt)











Technical Parameters of PP-60



Equipment

2 stage pusher centrifuge

Spec.

PP-60

Qty

set

Technical parameters

1

Basket diameter

  560/630 mm

2

Basket Rotate Speed (Max)

1360 r/min

3

Stroke of Pusher Mechanism

70-80 times/min

4

First, second stage mesh aperture (as per the material)

mm, mm

5

G-force

570-642

6

Main motor



Spec/Power

55KW

Installation type

Horizontal

Protection class

IP54/F1

Electrical power

3 phase 380V/50Hz AC

7

Oil pump motor



Spec/Power

30KW

Installation type

Horizontal

Protection class

IP54/F1

Electrical power

3 phase 380V/50Hz AC

8

Oil pump

Spec.

NB5D140F

outflow

140ml/turn

Maximum pressure

8Mpa

9

Overall size

3127mm × 1700mm × 1955mm

10

Weight

4860kg

11

Shell type

open

12

Output

≥15T/h (Mineral salt)

13

Moisture content after separation:

≤3%





Detail Pictures

Automatic Discharge Separator - Centrifuge For Salt Dewatering / Processing 0

Automatic Discharge Separator - Centrifuge For Salt Dewatering / Processing 1

Automatic Discharge Separator - Centrifuge For Salt Dewatering / Processing 2








“Star Level”:
Automatic Discharge Separator - Centrifuge For Salt Dewatering / Processing 3
