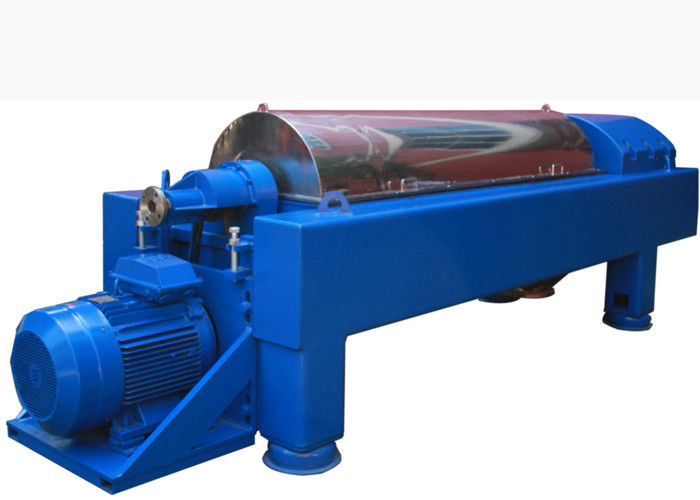

Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl

Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl

  • High Light

    centrifuge wastewater treatment

    ,

    drilling mud decanter centrifuge

  • Application
    Drilling Mud, Oil Field
  • Operation
    Automatic Continuous
  • Conveyor
    Tiled With Hard Alloy
  • MOC
    SS
  • Motor
    Double
  • Bearing
    SKF, NSK As Optional
  • Control Box
    With
  • Solid Discharge
    360 Degree
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO
  • Model Number
    PDC, PNX
  • Minimum Order Quantity
    1 set
  • Price
    USD25000-100000/SET FOB Shanghai
  • Packaging Details
    Standard wooden case
  • Delivery Time
    75-90 days after down payment
  • Payment Terms
    TT,.LC, Western Union
  • Supply Ability
    60 sets per month

Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl

Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl


Competitive Advantages

  • Automatic continuous operation
  • 360 degree discharge
  • Water level adjustable
  • High efficiency and low power consumption
  • PLC control
  • Screw conveyor: tiled


 Separation principle


Taking advantage of the principle that the light liquid, heavy liquid and solid phase, with different density and mutually insoluble in the mixed liquid, gain different sedimentation speed in the centrifugal force field or gravity force field, separating stratification or causing the solid particles in the liquid to deposit can be achieved.





Specifications



Model

Diameter
(mm)

Speed (rpm)

Length
(mm)

G-force

Capacity
(m3/h)

Main motor Power
(kw)

Assistant motor power
(kw)

Weight
(kg)

Overall Size
(L × W × H)
(mm)

PNX-414

355

4000

860

3175

1~10

22

7.5

2035

2765 × 920 × 1060

PDC-14

355

4000

1160

3175

1~15

22

7.5

2122

3065 × 920 × 1060

PNX-418

355

4000

1460

3175

1~25

22

7.5

2222

3365 × 920 × 1060

PDC-17-3

420

3600

1290

3042

1~20

22

7.5

2100

2931 × 990 × 1066

PDC-17-4

420

3600

1680

3042

2~35

22

7.5

2230

3331 × 990 × 1066

PDC-18-3.8

450

3500

1720

3080

4~40

37

11

3560

4100 × 1120 × 1239

PDC-18-4.4

450

3300

2000

2739

4~50

45

Hydraulic

3655

4000 × 1120 × 1239

PDC-20

500

3200

2000

2860

5~45

55

11

4213

4489 × 1160 × 1350

PDC-21

540

2800

2000

2366

5~50

55

15

5290

4587 × 1285 × 1368



























More pictures

Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl 0
Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl 1
Planetary Gearbox Automatic Control Drilling Mud Centrifuge with Solid Bowl 2




Guarantee



Peony Centrifuge is committed to producing high-quality machinery and equipment, as well as providing facility construction services. We aim to provide the best possible products while ensuring customer satisfaction. We believe in rewarding our customers with superior quality products in return for their trust and interest. Our team is dedicated to taking one more step forward by providing infinite services and a strong commitment to our customers.
