CBD Oil Jacketed Industrial Centrifuge Hemp Oil Extraction Basket Separator

CBD Oil Jacketed Industrial Centrifuge Hemp Oil Extraction Basket Separator

  • High Light

    hemp extraction equipment

    ,

    virgin coconut oil centrifuge machine

  • Type
    Basket Centrifuge
  • MOC
    SS304,316 As Option
  • Working
    Bi-Directional Agitation
  • Drying
    Heavy-Duty Spin Drying
  • Discharge Type
    Top Discharge, Manual
  • Speed Control
    Inverter(optional)
  • Control
    PLC
  • Grade
    GMP
  • Electrical Elements
    Famous Brand, CE Certificate
  • Application
    Chemical, Pharmacy, Food, Light Industry
  • Place of Origin
    China
  • Brand Name
    Peony
  • Certification
    ISO9001& ISO14001
  • Model Number
    PPTD
  • Minimum Order Quantity
    1
  • Packaging Details
    Standard wooden case
  • Delivery Time
    30-60days
  • Payment Terms
    TT,LC, Western Union
  • Supply Ability
    50sets per month

CBD Oil Jacketed Industrial Centrifuge Hemp Oil Extraction Basket Separator





CBD Oil Jacketed Industrial Centrifuge

Hemp Oil Extraction Basket Separator





 Brief Introduction



The PPTD centrifuge is top discharging, hermetic closure type equipment.



The material is fed into the drum through the feeding pipe on the hermetic closure casing; under the action of the centrifuge force field, the liquid-phase passes through the filter medium and the discharged out of the machine, while the solid-phase material is retained inside the drum and, after the machine is stopped, the material is discharged from the top.



The centrifuge has such features as smooth running, easy & convenient operation as well as conducting feeding, washing and dehydrating under the state of hermetic closure, etc.



Model PPTD flat-plate centrifuge has got rid of traditional hanging type of leg support and instead it adopts flat-plate counterweight and high-viscosity damping vibration reducer for absorbing vibration. The installation requires no foundation.





 Process Overview



  • Operator fills filter bag with milled plant material and places it in the machine.
  • The centrifuge is then flooded, and bi-directional agitated for full target compound removal.
  • After the wash, the plant material undergoes a medium duty spin dry till high speed spin dry to remove the liquid as much as possible.
  • The alcohol wash is then collected to some container for further processing.





 Features



- 304 and 316L Sanitary Stainless Steel Construction



- Low temperature rating: -40c



- Reinforced Sight Glass



- Bi-Directional Agitation



- Auto/Manual Controls



- Digital HMI Interface



- Variable Speed Control



- Easy Material Loading/ Unloading



- Heavy-Duty Spin Drying



- No foundation required



- Direct Drum type, without curl inward





 Application



It is applicable to the filtrating of suspension containing granules and also be used for the dehydration of fiber substances and especially applicable to the filtrating of materials of high viscosity and fine granules as well as toxic and flammable materials.



It has found wide applications in such trades as chemical, pharmacy, food, light industry, etc. for example: gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, plastic raw material, soap, grease, all kinds of resins, food salt, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicide, insecticide, the dehydration of such mineral fines as copper, zinc, aluminum, etc.





 Specifications



Model Capacity for dry ground plant(per batch)
PPTD-25 ~8kgs
PPTD-50 ~15kgs
PPTD-135 ~30kgs
PPTD-200 ~45kgs
PPTD-300 ~60kgs







 Pictures

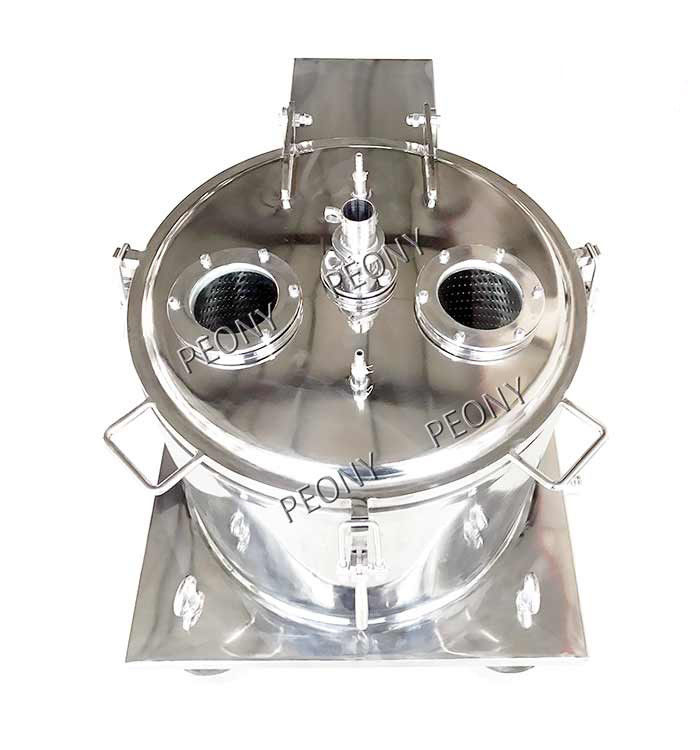

CBD Oil Jacketed Industrial Centrifuge Hemp Oil Extraction Basket Separator 0





 Packing&Delivery



CBD Oil Jacketed Industrial Centrifuge Hemp Oil Extraction Basket Separator 1





 Customer Photo



CBD Oil Jacketed Industrial Centrifuge Hemp Oil Extraction Basket Separator 2
