Peanut Skin Dewatering Decanter Centrifuge , High Speed Centrifuge Full Automatic

China Peanut Skin Dewatering Decanter Centrifuge , High Speed Centrifuge Full Automatic supplier
Peanut Skin Dewatering Decanter Centrifuge , High Speed Centrifuge Full Automatic supplier Peanut Skin Dewatering Decanter Centrifuge , High Speed Centrifuge Full Automatic supplier Peanut Skin Dewatering Decanter Centrifuge , High Speed Centrifuge Full Automatic supplier

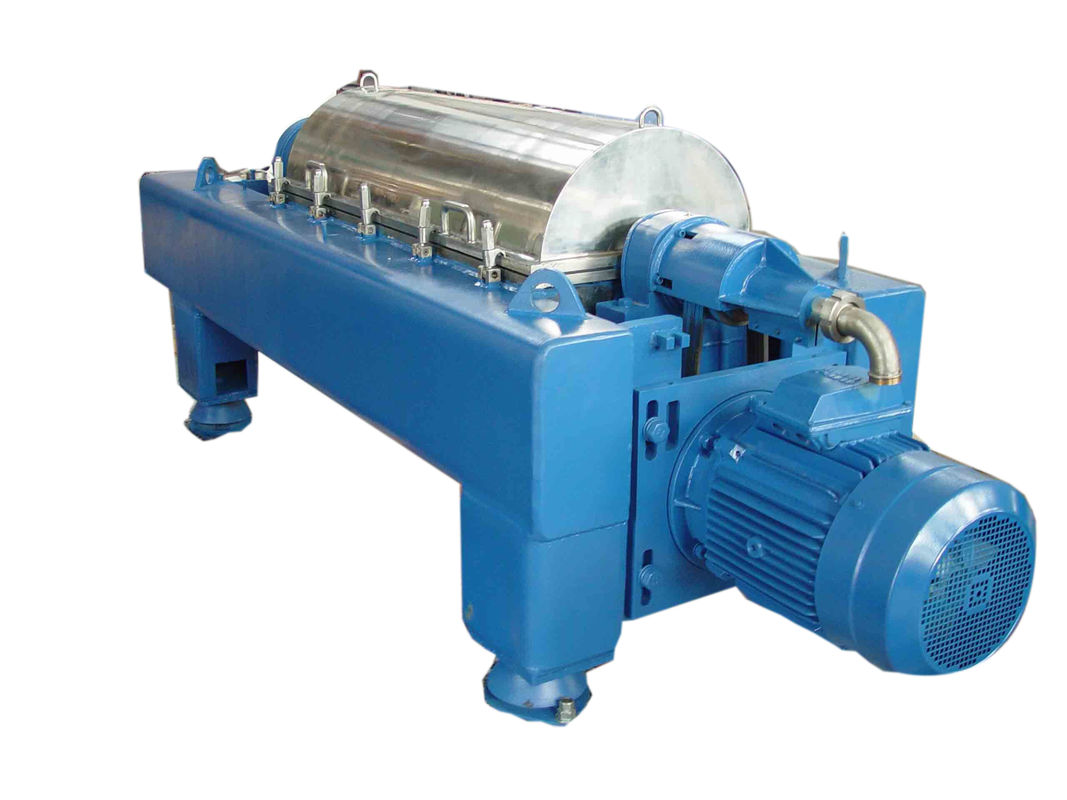

Large Image :  Peanut Skin Dewatering Decanter Centrifuge , High Speed Centrifuge Full Automatic

Product Details:

Place of Origin: China
Brand Name: Peony
Certification: ISO
Model Number: PDC-W

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD20000-100000/SET FOB Shanghai
Packaging Details: Standard wooden case
Delivery Time: 75-90 days after deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Application: Peanut Skin Dewatering Operation: Automatic Continuous
Wet Parts Material: SS Bearing: SKF, NSK As Optional
Motor: Double Control Box: With
PLC: Optional

Peanut Skin Dewatering Decanter Centrifuge , High Speed Centrifuge Full Automatic





Description:



PDC series decanter centrifuges, also called solid bowl centrifuges, are generally designed as two-phase or three-phase machines and are extremely versatile.Taking advantage of the principle that the liquid and solid phase, with different density and mutually insoluble in the mixed liquid, gain different sedimentation speed in the centrifugal force field or gravity force field, separating stratification or causing the solid particles in the liquid to deposit can be achieved.



Peanut Skin Dewatering Decanter Centrifuge , High Speed Centrifuge Full Automatic



Separation principle



In the gravity force field or centrifugal force field, the liquid phase and the solid phase with different density and mutually insoluble in the mixed liquid, respectively gain different sedimentation speed, and thus separate and stratify. In the gravity force field it is called gravity separation, while in the centrifugal force field it is called centrifugal separation.

The machine could deal with the material which range of concentration is large, small size which widely distributing. Solid particles are less 0.5mm as rigid particles, and less than 10mm as non-rigid particles, the machine can be effectively treated.The decanter centrifuge is applicable to the separating of suspension containing solid-phase granules with diameter greater than 0.005 mm and with the concentration being 2~40%.







Applications:



Animal protein

Fish oil and fishmeal by-product processing

Surimi processing

Soybean protein,peanut protein,corn protein,beer yeast.bone protein,bone blue ,blood power dewatering etc.

Vegetable protein

Extraction from soybeans, oil seeds and some crops

Edible oil

Clarification of palm oil, olive oil and pressed bean and seed oil

Juice

Extraction from fruit, citric acid and coconut milk

Starch processing

Starch washing, dewatering and clarification based on wheat, maize, tapioca, cassava and potatoes





Specifications:



Model

Drum

G-force

Capacity

(m3/h)

Max solid

discharge

(m3/h)

Power

(kw)

Weight

(kg)

Overall size

(L×W×H)

(mm)

Diameter

(mm)

Speed

(rpm)

Length

(mm)

Length-to-diameter

 rate

PDC-10-W

250

5400

1000

4

4080

0.5~5

0.4

11/4

1000

2410 × 800 × 1080

PDC-12-4-W

300

4200

1200

4

3500

1~5

0.6

11/4

1200

2610 × 800 × 1080

PDC-12-4.5-W

300

4200

1350

4.5

3000

1~10

0.8

11/4

1400

2760 × 800 × 1080

PDC-14-W

355

4000

1600

4.5

3180

1~20

1.2

18.5/7.5

1800

3495 × 840 × 1180

PDC-16-W

400

3650

1800

4.5

3000

2~25

2

22/7.5

2500

3890 × 1020 × 1205

PDC-18-4.4-W

450

3200

2000

4.4

2600

3~35

2.8

30/11

3000

4297 × 1080 × 1385

PDC-18-4.8-W

450

3200

2150

4.8

2600

4~40

3

37/11

3200

4447 × 1080 × 1385

PDC-20-4-W

500

3000

2000

4

2500

5~45

3.2

37/11

3800

4330 × 1140 × 1470

PDC-20-4.5-W

500

3000

2250

4.5

2500

8~50

3.5

45/15

4000

4580 × 1140 × 1470

PDC-21-W

530

2900

2280

4.3

2500

15~65

5

55/15

5000

4924 × 1170 × 1540

PDC-23-W

580

2780

2500

4.3

2500

20~80

6.5

75/18.5

6500

5205 × 1270 × 1540

PDC-26-W

650

2500

2800

4.3

2270

25~110

8

75/18.5

7000

4300 × 1900 × 1350





Competitive Advantages:



 High rotation speed,high G force,big length -diameter ratio.

 Large capacity
 Low vibration,low noises strong afford capacity

 Multiple protecting apparatus,reliable running

 Reliable gear box system

 Corrosion resistant an resistant key parts

 Flexible drive and speed adjust mode

 Famous and reliable electrical components





Reference Pictures



Peanut Skin Dewatering Decanter Centrifuge , High Speed Centrifuge Full Automatic

Peanut Skin Dewatering Decanter Centrifuge , High Speed Centrifuge Full Automatic





Our service:



1. 12 months guarantee period from machine arriving date.

2. Abundant spare parts in stock are available to provide.

3. Our technicians could be dispatched for overseas service.

4. 7*24 hours technical consultation.

5. Your workers could get trained both in our factory and yours.

6. Routine tracing till the machine work properly will be done timely.

7. We will remind you to do the normal maintenance.

8. Your suggestions or any comments & reflection would be treated in priority.

9. Marketing team will visit you during our visit in your country if you require.





LOOKING FORWARD TO COOPERATING WITH YOU……
