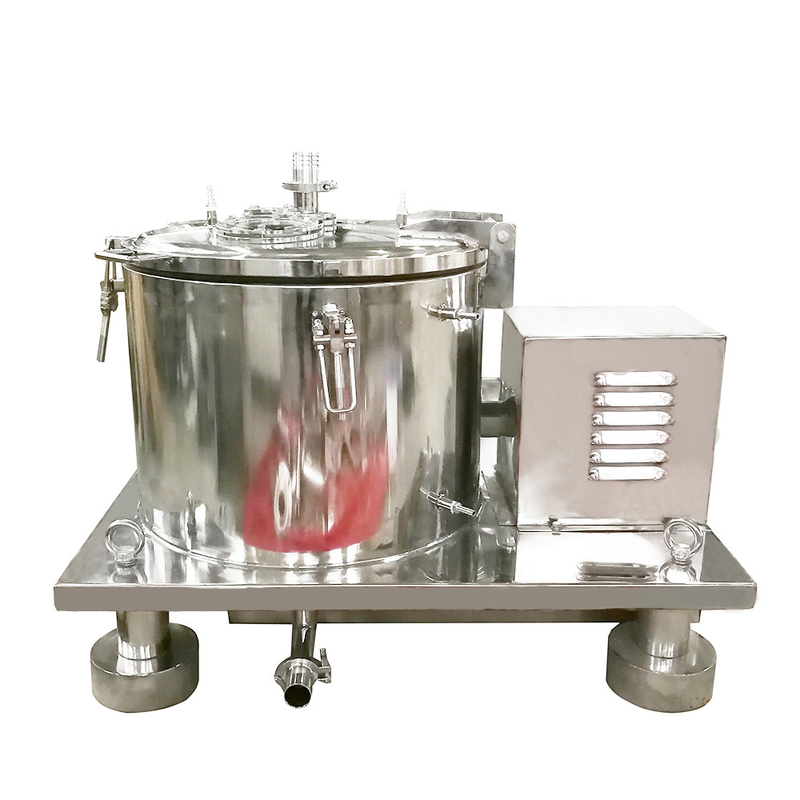

Batch Operate Menthol Extraction Basket Centrifuge with Control Cabinet

China Batch Operate Menthol Extraction Basket Centrifuge with Control Cabinet supplier
Batch Operate Menthol Extraction Basket Centrifuge with Control Cabinet supplier Batch Operate Menthol Extraction Basket Centrifuge with Control Cabinet supplier Batch Operate Menthol Extraction Basket Centrifuge with Control Cabinet supplier

Large Image :  Batch Operate Menthol Extraction Basket Centrifuge with Control Cabinet

Product Details:

Place of Origin: China
Brand Name: Peony
Certification: ISO
Model Number: PPTD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD4800-30000/SET FOB SHANGHAI
Packaging Details: Standard export packings
Delivery Time: 45-60 days after down payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Application: Menthol Extraction Operation: Batch
Discharge Type: Manual Top Discharge Weight: 1200-2600 Kg
MOC: SS Motor Power: 3-11kw
Control Cabinet: With



Batch Operate Menthol Extraction Basket Centrifuge with Control Cabinet





Description:



PPTD series centrifuge is a batch operate centrifuge with top discharging, hermetic closure type. The material is fed into the drum through the feeding pipe on the hermetic closure casing; under the action of the centrifuge force field, the liquid-phase passes through the filter medium and the discharged out of the machine, while the solid-phase material is retained inside the drum and, after the machine is stopped, the material is discharged from the top. The centrifuge has such features as smooth running, easy & convenient operation as well as conducting feeding, washing and dehydrating under the state of hermetic closure, etc.





Features:

1) No base installation, without traditional tripod type hanging structure and simplifies the installation process
2) Reasonable design and new and simple structure
3) Basic platform is the work operation platform
4) Reduced labor and high efficiency
5) Simple operations and easy cleaning
6) Outside and inside surface of rotary drum is polished
7) All of fasteners are made of stainless steel
8) Transmission section is sealed with stainless steel
9) Airtight packing is made of silicone rubber
10) Equipped with CIP system, the whole machine meets GMP hygienic standards

11) Imported high-viscosity liquid damping agent shock isolator ensures that no vibrations will affect the base of the unit, the ground and neighboring equipment

12) Outer case has a fully opening cover
13) Especially suitable for solid-liquid separation of poisonous, harmful mediums
14) With open-cover, overheating, overloading and over-current protection
15) Full sealing, explosion-proof and very clean
16) Adopts explosion motor frequency driving and static-proof V-belt
17) When equipped with nitrogen protection, the machine is suitable for solid-liquid separation of combustibles or explosive

Batch Operate Menthol Extraction Basket Centrifuge with Control Cabinet



Applications:



It is applicable to the filtrating of suspension containing granules and can also be used for the ne granules as well as toxic and flammable materials. It has found wide applications in such trades as chemical, pharmacy, food, light industry, etc. for example: gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, plastic raw material, soap, grease, all kinds of resins, food salt, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicide, insecticide, the dehydration of such mineral fines as copper, zinc, aluminum, etc.



Specification:

Type

Drum

Power

(kw)

Weight

(kg)

Overall size

(L × W × H)

(mm)

Diameter

(mm)

Volume

(L)

Capacity

(kg)

Speed

(rpm)

G-force

PPTD-10

300

5

10

2500

1050

1.1

180

890 × 600 × 500

PPTD-25

450

20

25

1900

910

1.5

250

980 × 650 × 870

PPTD-50

600

40

50

1500

756

3

800

1300 × 880 × 900

PPTD-135

800

100

135

1200

645

5.5

1300

1800 × 1200 × 1140

PPTD-135-NA

800

100

135

1500

1008

7.5

1300

1800 × 1200 × 1140

PPTD-200

1000

150

200

1000

560

7.5

2000

2050 × 1500 × 1220

PPTD-200-NA

1000

150

200

1200

706

11

2000

2050 × 1500 × 1220

PPTD-300

1200

250

300

800

431

11

2500

2350 × 1650 × 1370





More pictures



Batch Operate Menthol Extraction Basket Centrifuge with Control Cabinet

Batch Operate Menthol Extraction Basket Centrifuge with Control Cabinet





Our service:



1. 12 months guarantee period from machine arriving date.

2. Abundant spare parts in stock are available to provide.

3. Our technicians could be dispatched for overseas service.

4. 7*24 hours technical consultation.

5. Your workers could get trained both in our factory and yours.

6. Routine tracing till the machine work properly will be done timely.

7. We will remind you to do the normal maintenance.

8. Your suggestions or any comments & reflection would be treated in priority.

9. Marketing team will visit you during our visit in your country if you require.
