Centrifugal Oil Water Separator

Product Details:

Place of Origin:China
Brand Name:Peony
Certification:ISO
Model Number:PDSF

Payment & Shipping Terms:

Minimum Order Quantity:1
Packaging Details:Standard export packings
Delivery Time:45 days
Payment Terms:TT. LC
Supply Ability:100sets per month
Detailed Product Description

Centrifugal Oil Water Separator



Description:

Model PDSF Separator is mainly suitable for separating and extracting oil of animal and vegetable oil, especially suitable for separating feedstock containing large proportion of heavy phase, for example, fish oil. Heavy phase or light phase of higher pureness can be obtained after, separation, and solid particles can be removed from the min limit at discharge. All the parts in contact with the feedstock are made of stainless steel which are in conformity with the food sanitation requirement.

Commonly.during the fish oil extraction system,decanter centrifuge or the 3phase decanter centrifuge will be adopted together with disc separator to get more pure fish oil and more dry fishmeal.The equipment also is used to recovery the fish protein to get the effluent standard to protect the environment.After extraction of the fish protein water,the protein could be produced into the protein powder and add into the fishmeal to work as the foodstuff.

The machine consists of mechanical transmission part, drum, water equipment and frame

There are two types separation

1. Liquid-solid separation, that means separate the liquid and the insolvable solid particles

2.Liquid-liquid-solid separation, that means separate the different density and insolvable liquids

from the solid particles.

When machine runs in high speed, different density of the light phase, heavy phase, solid particles obtained the different G force for separation.

Material is feeding from the upper pipe and entering into the distributor till the disc plates, The light phase, heavy phase and impurities will obtain the different G force and form the layer under the strong centrifugal force, because of their different density, This machine adopts the partial discharging structure which will make less wastage, all parts contact are made in Stainless Steel which meet the requirements of the food sanitation..

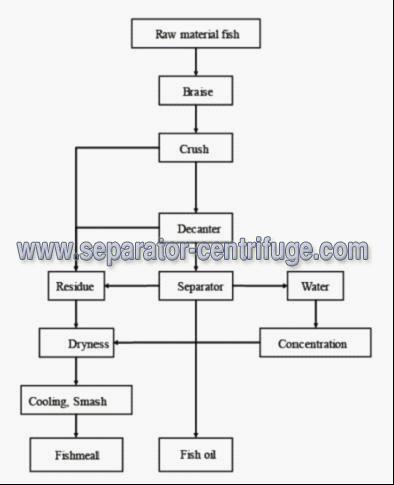

Simple processing flowchart



Centrifugal Oil Water Separator





PDSF  Main Technical Parameters



Model

PDSF-1500

PDSF-3000

Capacity

 1500L/h

3000L/h

Rotating speed

 6425rpm

?

Means of sediment discharge

 Partial Discharge

 Partial Discharge

Weight

 490 KG

 790KG

Overall size(LxWxH)

 1000x900x1290(mm)

1570x1450x1830(mm)



Centrifugal Oil Water Separator

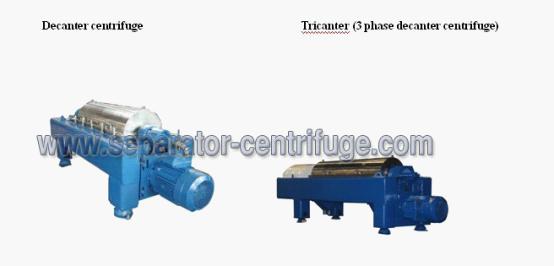

As we introduced above,the disc separator should be matched with decanter or tricanter (3phase decanter centrifuge),the detailed introduction please review our other products introduction.



Centrifugal Oil Water Separator
