Waste Water Treatment Decanter Centrifuge With Filter Cake Delivery System

Product Details:

Place of Origin:China
Brand Name:Peony
Certification:ISO9001& ISO14001
Model Number:PDC

Payment & Shipping Terms:

Minimum Order Quantity:1
Packaging Details:Standard wooden case
Delivery Time:60-75days
Payment Terms:TT,.LC
Supply Ability:60sets per month
Detailed Product Description

Waste Water Treatment Decanter Centrifuge With Filter Cake Delivery System



Description:

Whole waste water treatment includes sludge feeding system,flocculant adding system,dewatering system,filter cake delivery system and PLC control system.

The main equipment of sludge dewatering complete system is decanter centrifuge.There are basically two application types in the wastewater treatment industry for the decanter centrifuge: sludge thickening and sludge dewatering duties.Also .it can be used for Sludge classification and Sludge clarification. With the decanter centrifuge,it is possible to separate the particles from suspending liquid with equivalent diameter bigger than 0.003mm,solid-liquid weight ratio less than 10% or volume ratio less than 70%,difference in specific gravity bigger than 0.05g/cm3



Applications:

Sludge dewatering complete system could be used in the following fields:

Municipal sludge treatment,paper mill sludge,starch factory waste water treatment,stell mill sludge,printing and dyeing mill sludge,water works sludge,pharmaceutical waste sludge,PVC sludge,sewage desulfurization sludge,grain stillage,power plant ash sludge,dairy sludge,beer sludge,drilling fluid ,electroplating liquid,fermented liquid manure,oil refining sludge,soap sludge,leather sludge and etc.

Waste Water Treatment Decanter Centrifuge With Filter Cake Delivery System



Waste Water Treatment Decanter Centrifuge With Filter Cake Delivery System



Specifications:

Model

Drum

G-force

Capacity

(m3/h)

Max solid

discharge

(m3/h)

Power

(kw)

Weight

(kg)

Overall size

(L×W×H)

(mmxmmxmm)

Diameter

(mm)

Speed

(rpm)

Length

(mm)

Length-to-diameter

 rate

PDC-10-W

250

5400

1000

4

4080

0.5~5

0.4

11/4

1000

2410 × 800 × 1080

PDC-12-4-W

300

4200

1200

4

3500

1~5

0.6

11/4

1200

2610 × 800 × 1080

PDC-12-4.5-W

300

4200

1350

4.5

3000

1~10

0.8

11/4

1400

2760 × 800 × 1080

PDC-14-W

355

4000

1600

4.5

3180

1~20

1.2

18.5/7.5

1800

3495 × 840 × 1180

PDC-16-W

400

3650

1800

4.5

3000

2~25

2

22/7.5

2500

3890 × 1020 × 1205

PDC-18-4.4-W

450

3200

2000

4.4

2600

3~35

2.8

30/11

3000

4297 × 1080 × 1385

PDC-18-4.8-W

450

3200

2150

4.8

2600

4~40

3

37/11

3200

4447 × 1080 × 1385

PDC-20-4-W

500

3000

2000

4

2500

5~45

3.2

37/11

3800

4330 × 1140 × 1470

PDC-20-4.5-W

500

3000

2250

4.5

2500

8~50

3.5

45/15

4000

4580 × 1140 × 1470

PDC-21-W

530

2900

2280

4.3

2500

15~65

5

55/15

5000

4924 × 1170 × 1540

PDC-23-W

580

2780

2500

4.3

2500

20~80

6.5

75/18.5

6500

5205 × 1270 × 1540

PDC-26-W

650

2500

2800

4.3

2270

25~110

8

75/18.5

7000

4300 × 1900 × 1350




Advantages:

  • continuous feeding, separating and discharging
  • compact structure
  • easy obturation
  • smooth running
  • low noises
  • large handling capacity
  • low energy consumption
  • high automation
  • small working strength
  • simple operation and easy maintenance
  • wide application.

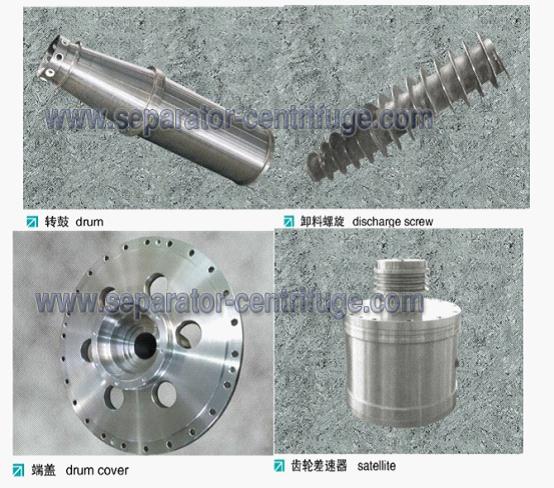

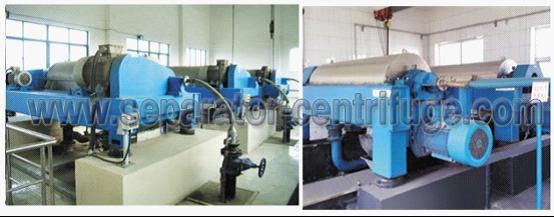

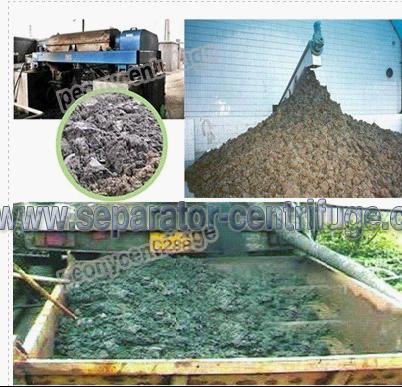

Reference Drawing:

Waste Water Treatment Decanter Centrifuge With Filter Cake Delivery SystemWaste Water Treatment Decanter Centrifuge With Filter Cake Delivery SystemWaste Water Treatment Decanter Centrifuge With Filter Cake Delivery SystemWaste Water Treatment Decanter Centrifuge With Filter Cake Delivery System



Guarantee:
Peony Centrifuge has been dedicated to producing machinery and equipments and carrying out facility construction, pursuing the best quality and producing the best product at the same time.
We are committed to reward you with a better quality in return for our interest in and faith toward.
We will do our utmost for one more stepping forward, based on our infinite services and trust to customers.
