Disc Lubricating Oil Centrifugal Separator , Heavy Fuel Oil Centrifuge Filter System

Product Details:

Place of Origin:China
Brand Name:Peony
Certification:CCS
Model Number:PDSD2000-B1205Z

Payment & Shipping Terms:

Minimum Order Quantity:1
Packaging Details:Standard export packing
Delivery Time:45days
Payment Terms:TT,.LC
Supply Ability:100sets per month
Detailed Product Description
Discharging Type: Full Discharging Motor Power(kW): 4
N.W.(kg): 470 Belt: Super Seamless Ring Belt



Disc Lubricating Oil Centrifugal Separator , Heavy Fuel Oil Centrifuge Filter System





Description:

1.Model PDSD2000-B1205Z separator is mainly used to remove water and mechanical impurities from diesel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machine,  and prolong engine life.

2.The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.

3.The machine adopts automatic control, it has the advantages of high efficiency, low oil  consumption, convenient operation and economic maintenance cost.

4.The clear oil and dirty water are pumped out by centripetal pump, the sludge is discharged automatically and fully.

5.The machine is one kind of rotary machine with high speed, After accurate dynamic balancing,  it can run for long time with low vibration, safety and security.

6.The design, product and acceptance are conformed to the standard of GB/T5745 “Marine Disc Separator”.







Advantages:

1. Automatic piston type slag removal

2. Modular design

3. Automatic operation

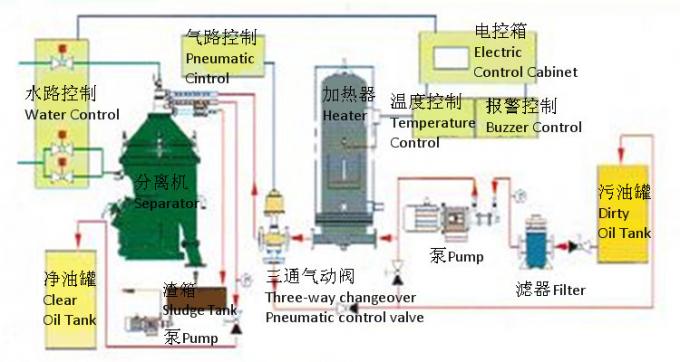

Automatic Control System:

Disc Lubricating Oil Centrifugal Separator , Heavy Fuel Oil Centrifuge Filter System

Water Control: Automatic control unlocking water, sealing water and water-seal/water switching.



Pneumatic Control: Filter and adjust compressed air, control three-way changeover pneumatic valve.



Temperature Control: Automatic control the temperature of the oil line, also control separately or with electric control cabinet at the same time.

Buzzer Control: Monitor oil temperature, pressure, over loading, non-discharging and leaking, and offer a group of passive contactor stretching out to control panel.





Condition for mineral oil separation and actual capacity (refer to the chart)

oil types

fuel oil

lubrication oil

fuel oil

heavy fuel oil

SAE30,40

detergence oil

steam turbine oil

kinematical

viscosity(mm2/s)

1.9-5.5

5.5-24

120

180

380

100-120

61.2

-74.8

40℃

50℃

40℃

40℃

density/

(kg/m3)(20℃)

<900

900-991

880-900

<900

separating

temperature

(℃)

 normal temperature

40-60best

90-98

80-95

recommended capacity

(l/h)

2400

2000

1100-1200

900

-1000

700-800

1000-1200

500-600

1600

-1700

If you have special requirement, Please connect with us.





Main Technical Specification

discharging type

full discharging

rated capacity(L/h)

Diesel recommended processing

2200

SAE30/40 Lubricating oil is recommended



1000



180 CST fuel oil

recommended processing



1000



380 CST fuel oil

recommended processing

800

Motor power(kW)

4

N.W.(kg)

470

Dimension(L×W×H)

1250*1000*1700







Technical analysis:

Peony's Disc separator technology comparison with foreign companies



No.

Technical Content

Peony’s Marine Disc Separator

 Oversea famous brand Disc

                 Separator

    1

The performance

 index of material

Viscidity(380 ~700 cSt/50℃)

density(1010kg/m3)

Viscidity(380 ~700 cSt/50℃)

density(1010kg/m3)

    2

Capacity

1500~8000L/h

1500~8000L/h

    3

System integration

Standardized, modular

Standardized, modular

    4

The transmission

 system

High-speed flat belt

 + friction coupling

High-speed flat belt

+ friction coupling

    5

Drum structure

"No gravity ring"

+ full hydraulic

discharge mode

"No gravity ring"

+ full hydraulic

 discharge mode





    6





Full automatic

control level

Fulfill online detection,

real-time monitoring,

intelligent feedback control

Meet the requirements

of ship with unmanned

engine room

Fulfill online detection,

real-time monitoring,

intelligent feedback control

Meet the requirements

of ship with unmanned

engine room





    7

Moisture sensors



capacitance(the same as

Westfalia)



    capacitance



    8

Design of calculation method

Finite element analysis

(Structure design and

the internal flow field

analysis of drum)

Finite element analysis

(Structure design and

the internal flow field

analysis of drum)



    9

Drum material

DSS, Special stainless steel

DSS, Special stainless steel

    10



       Belt



     Super seamless ring belt



Super seamless ring belt

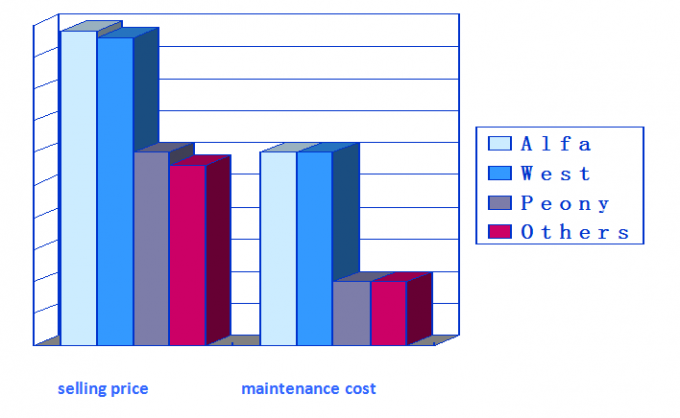

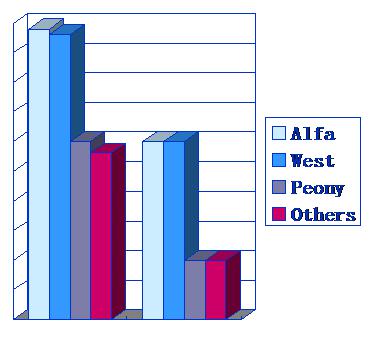

Cost Analysis :

  Compared selling price and maintenance cost with Alfa Laval, Westfalia

            and other domestic manufacturers

Disc Lubricating Oil Centrifugal Separator , Heavy Fuel Oil Centrifuge Filter System



Value Analysis:

1. According to the requirements of each classification society, all modules are equipped with oil leak alarm and high temperature alarm.

2. Oil.hydraulic,pneumatic control part adopts the Brand Baode (Germany).



3. Heater adopts brand SWEP (Germany).

4. Pressure control adopts Korean products or WIKA products



5. Screw pump is used instead of gear pump.

6. All equipped with automatic temperature control device (Made by the RTK production in Germany or made in China)

7. The main electrical components of standard electrical control box are produced by Schneider company while PLC is produced by Siemens or Mitsubishi.

8. The complete sets referred above are all Peony’s production of automatic Standard Controls and we certainly can modify the configuration list according to customers’ specified requirements.







Guarantee:

Peony has advantages in price, service and quality.We have Military Product Quality System Certification, CE certificate,Quality System Certification,many professional equipments and advanced designs.

Disc Lubricating Oil Centrifugal Separator , Heavy Fuel Oil Centrifuge Filter System



Principle and structure

Disc separator is vertical centrifuge. The drum is installed on the upper side of the vertical shaft. Driven by the motor, it will rotate at a high speed through the gearing. Inside the drum there is a group of dish parts overlaying each other – disc. There is very small gap between the disc. Suspension (or emulsion) is fed into the drum through the inlet in the middle of the drum. When the suspension (or emulsion) flows through the gap between the disc, under the action of the centrifuge, the solid particles (or droplets) go down to the disc in the formation of sediment (or liquid layer). Along the disc surface, the sediment slides out of the disc and accumulates at the part with the largest diameter inside the drum. After the separation, the liquid is discharge out of the drum from the drain outlet. The role of the disc is to reduce the sediment distance of solid particles (or droplets) and enlarge the sediment area of the drum. With the disc inside the drum, the capacity of the separator is improved greatly. The solid gathering inside the drum is manually removed by taking apart the drum after power off, or discharges from the drum through the slag-off part with the separator power on.

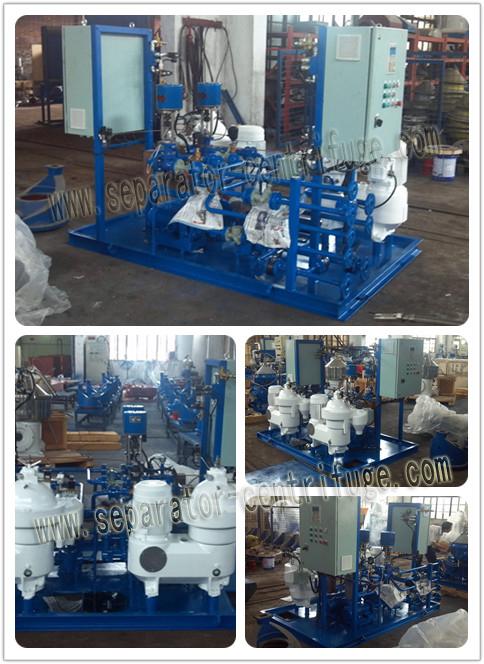

Overviews:

Disc Lubricating Oil Centrifugal Separator , Heavy Fuel Oil Centrifuge Filter System

Disc Lubricating Oil Centrifugal Separator , Heavy Fuel Oil Centrifuge Filter System
